1-44
OUTBOARD MOTOR DIMENSIONS

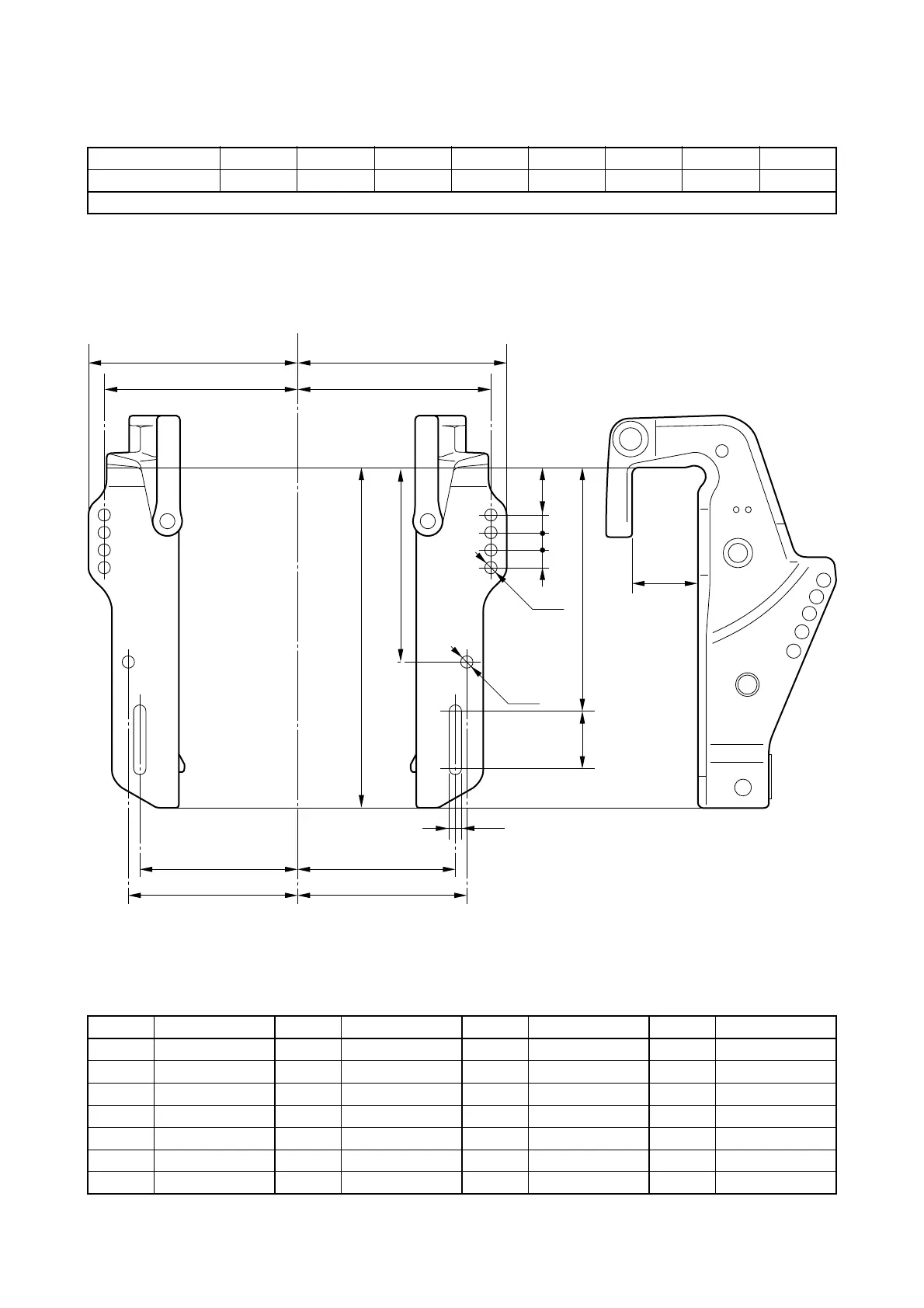

CLAMP BRACKET DIMENSIONS
Global model 40V 50H E60H F50D FT50C
US/CA model
PTT & Hydro-tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 126 (5.0) B8 203 (8.0) C1 — D1 13 (0.51)
B2 254 (10.0) B9 18.5 (0.73) C2 — D2 60.5 (2.4)
B3 163.5 (6.4) B10 — C3 69 (2.7) D3 13 (0.51)
B4 50.8 (2.0) B11 — D4 —
B5 180 (7.1) B12 —
B6 355 (14.0)
B7 138 (5.4)
B5
B6
B2
B9
B9
B9
D2
B7
B1
D1
B4
C3
D1
B3
B5
C/L
B7
B1
B3
D3
B
8
