REMOTE CONTROL TYPES AND APPLICATIONS

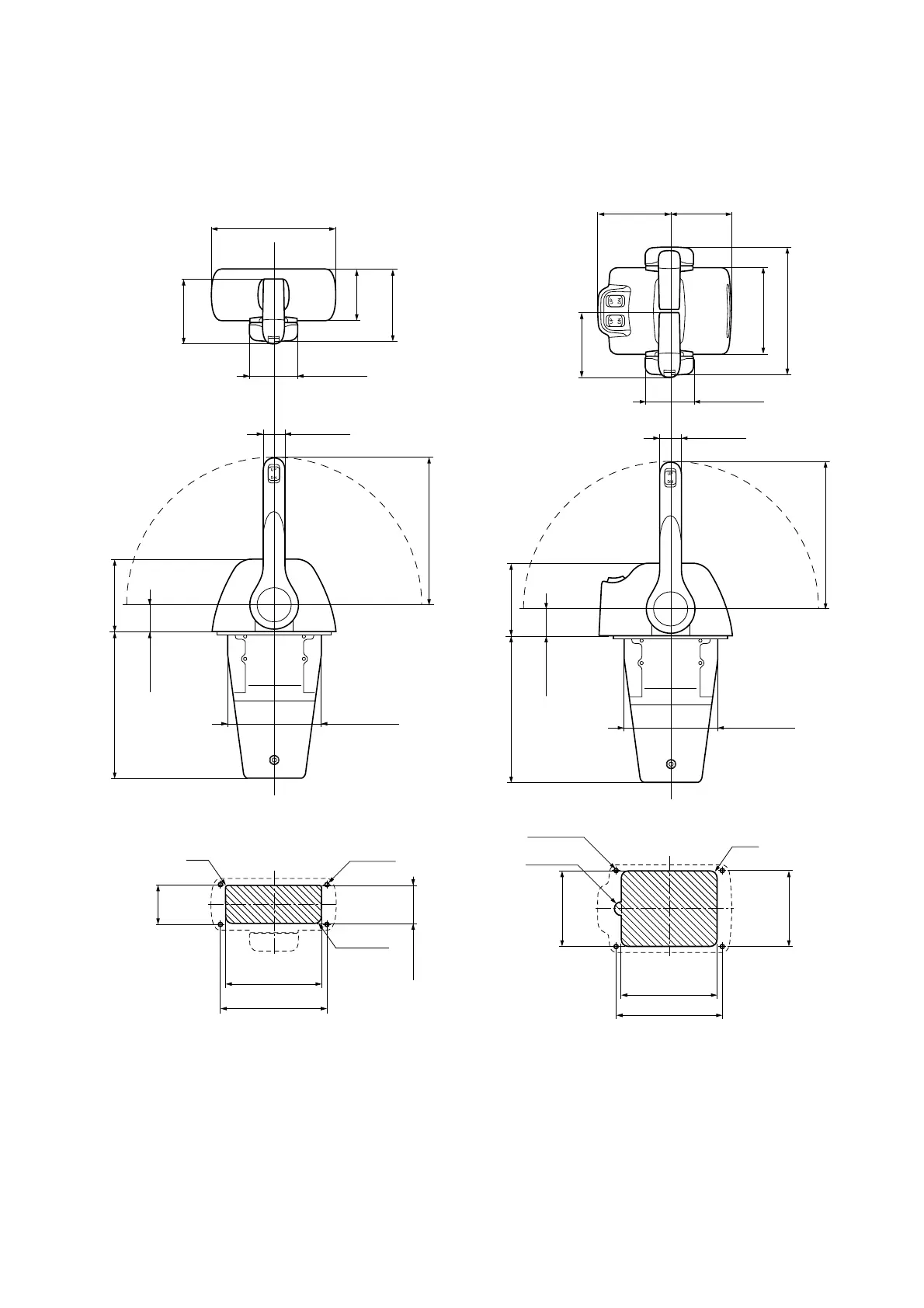

704 BINNACLE MOUNT REMOTE CONTROL DIMENSIONS
Single lever Twin lever
212 (8.35) 106 (4.17)
33 (1.30)
70 (2.76)
94.5 (3.72)
74 (2.91)
105 (4.13)
179.5 (7.07)
55 (2.16)
153 (6.02)
138 (5.43)
6 (0.23)
10 (0.39)
57 (2.24)
135.2 (5.32)
39 (1.54)
213 (8.39)
R3
mm (in.)
Cut out the shaded area
212 (8.35) 106 (4.17)
33 (1.30)
70 (2.76)
94.5 (3.72)
126 (4.96)
187.5 (7.38)
103.5 (4.07) 90 (3.54)
109.2 (4.29)
108 (4.25)
153 (6.02)
138 (5.43)
135.2 (5.32)
39 (1.54)
213 (8.39)
6 (0.23)
10 (0.39)
R10
mm (in.)
Cut out the shaded area
