Yamaha A-S2000 - Distortion and Tone Control Characteristics

22 En
Specifications

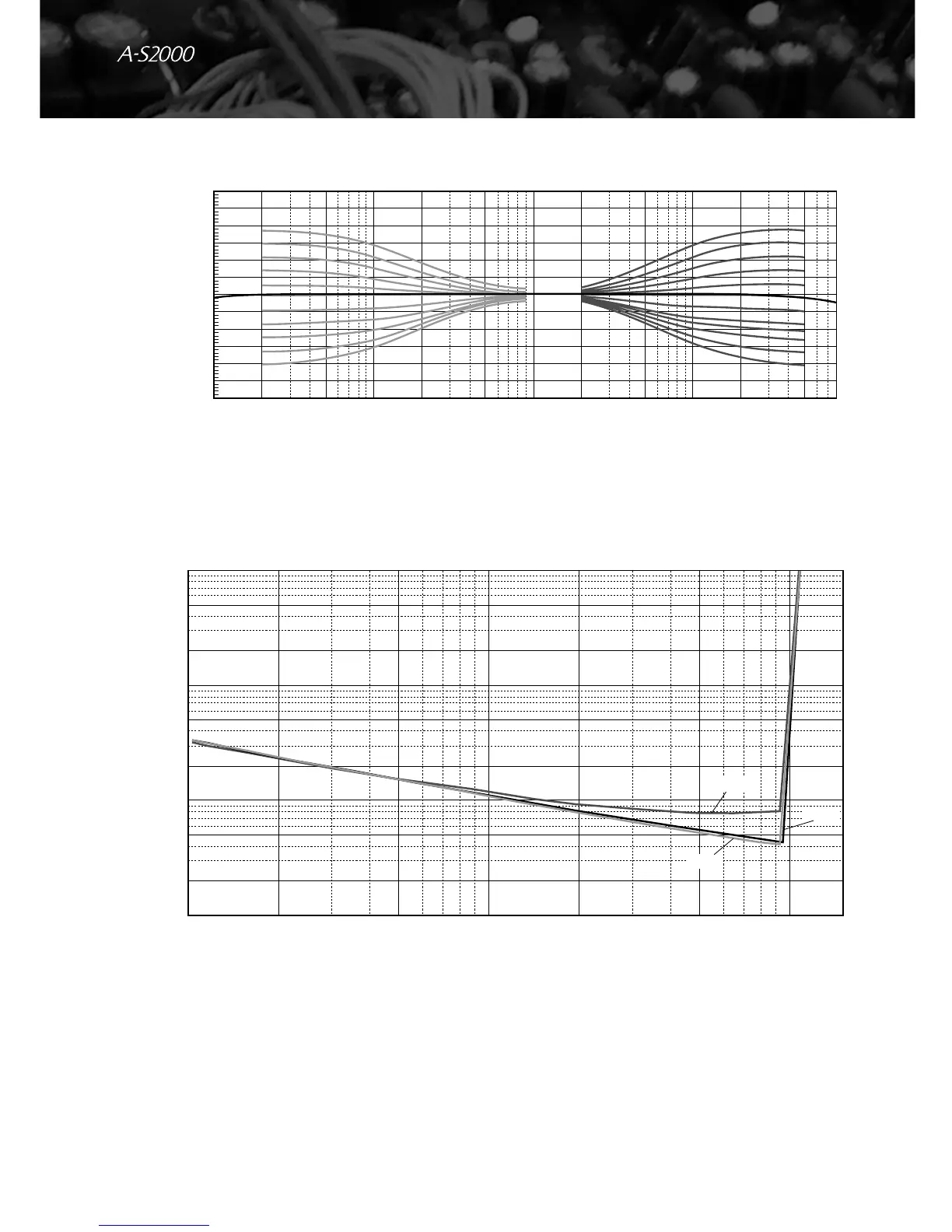

■ Tone control characteristics
■ Total harmonic distortion
+15
+12.5
+10
+7.5
+5
+2.5
0
–2.5
–5
–7.5
–10
–12.5
–15
10 20 50 100 200 500 1k
Frequency (Hz)
Response (dB)
2k 5k 10k 20k 50k 100k
1
0.5
0.05
0.005
0.2
0.02
0.002
0.1
0.01
0.001
2510
Output (W)
THD + N Ratio (%)
20 50 100
20Hz
1kHz
20kHz
