Yamaha CD-C600 - PRINTED CIRCUIT BOARDS: Main PCB (Side B)

IC304

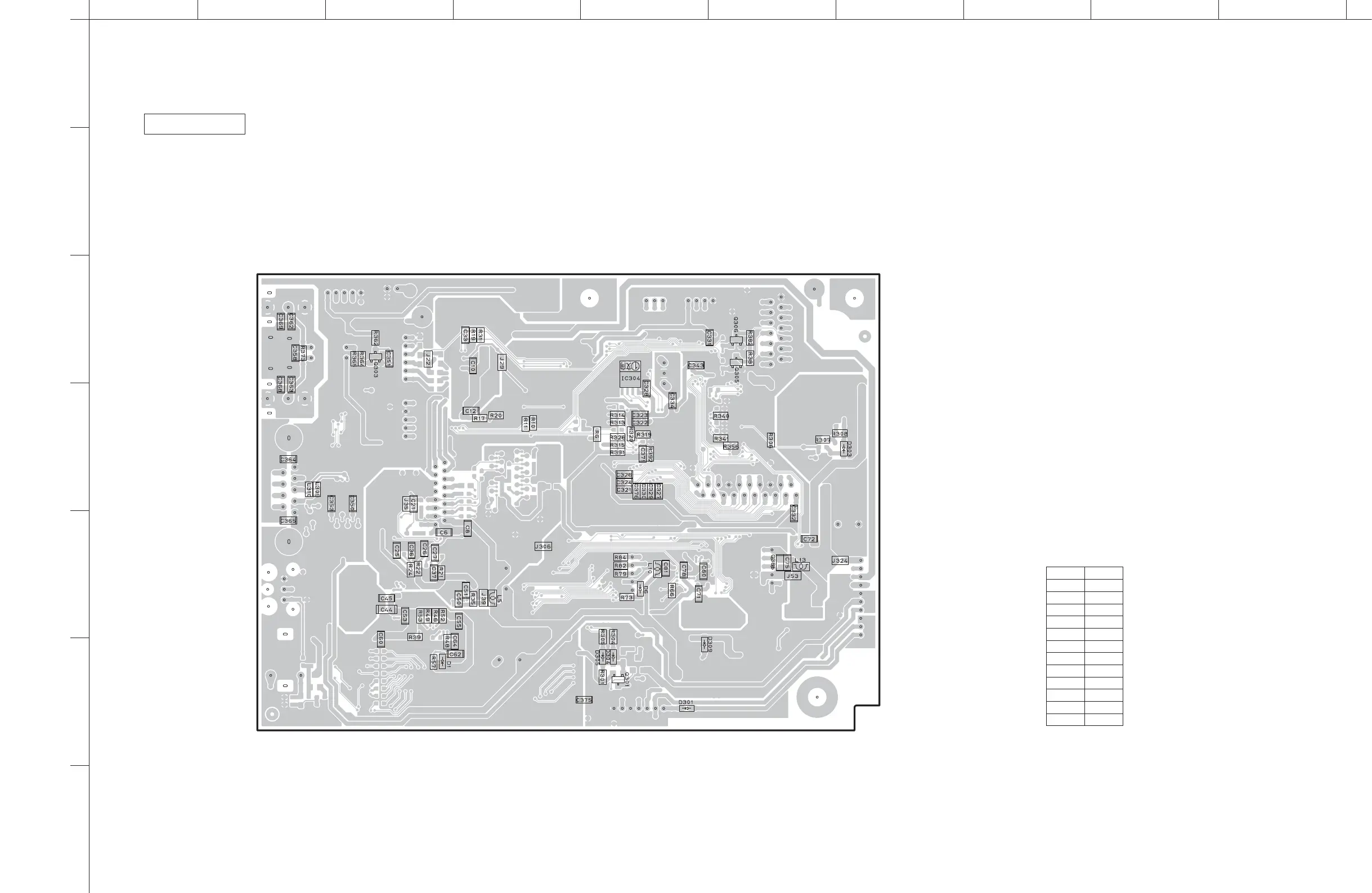

MAIN P.C.B. (Side B)
14
85
ABCDEFGH I J
1
2
3
4
5
6
7
CD-C600
39
• Semiconductor Location
Ref no. Location
D1 C6
D6 E5
D301 E6
D303 G4
D304 E6
D305 E6
D309 E6
IC304 E3
Q301 E6
Q303 C3
Q305 F3
Q306 F3
