Yamaha CD-C600 - PRINTED CIRCUIT BOARDS: Operation (1-4) Side A

CB704
W701
CB702
CB705
CB703
W702A
W702B
W703

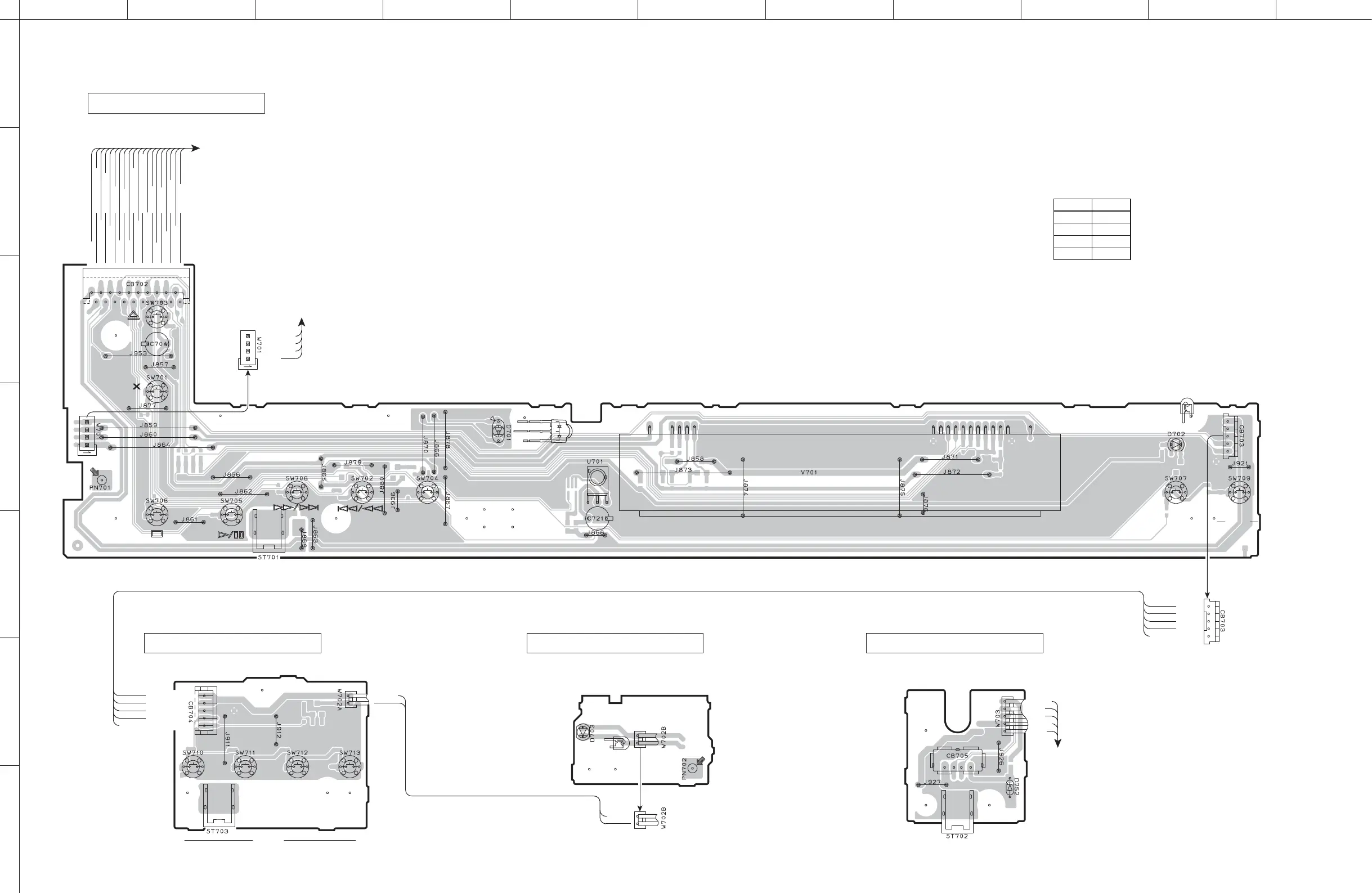

OPERATION (1) P.C.B. (Side A)
OPERATION (2) P.C.B. (Side A) OPERATION (3) P.C.B. (Side A) OPERATION (4) P.C.B. (Side A)
S+33 KEY_PLAY KEY_O/C KEY2 KEY1 LED_USB1 LED_POWER REM FL_RST FL_DATA
KEY_STBY KEY_USB DGND DGND D+3.3 FL_CLK FL_CS KEY1 LED_USB2 LED_PDIRECT
DGND
DGND
DGND
KEY2
DGND
VCC
D-
D+
GND
FG
LED_POWER
MAIN
(CB304)
MAIN
(CB6)
OPERATION (11)
(CB809)
DGND
FLGND
-27
ACFL2
ACFL1
DGND
DGND
KEY2
LED_POWER
DGND
POWER
indicator
iPod/USB
DISC
2341
PURE DIRECT
indicator
iPod/USB
indicator
OR
GR
CD/USB
PLAY
CHANGE
PURE
DIRECT
DISC
5
①
AB
②③
ABCDEFGH I J
1
2
3
4
5
6
7
40
CD-C600
• Semiconductor Location
Ref no. Location
D701 D4
D702 J4
D703 E6
D752 H7
