Yamaha CD-C600 - PRINTED CIRCUIT BOARDS: Operation (1-4) Side B

IC701

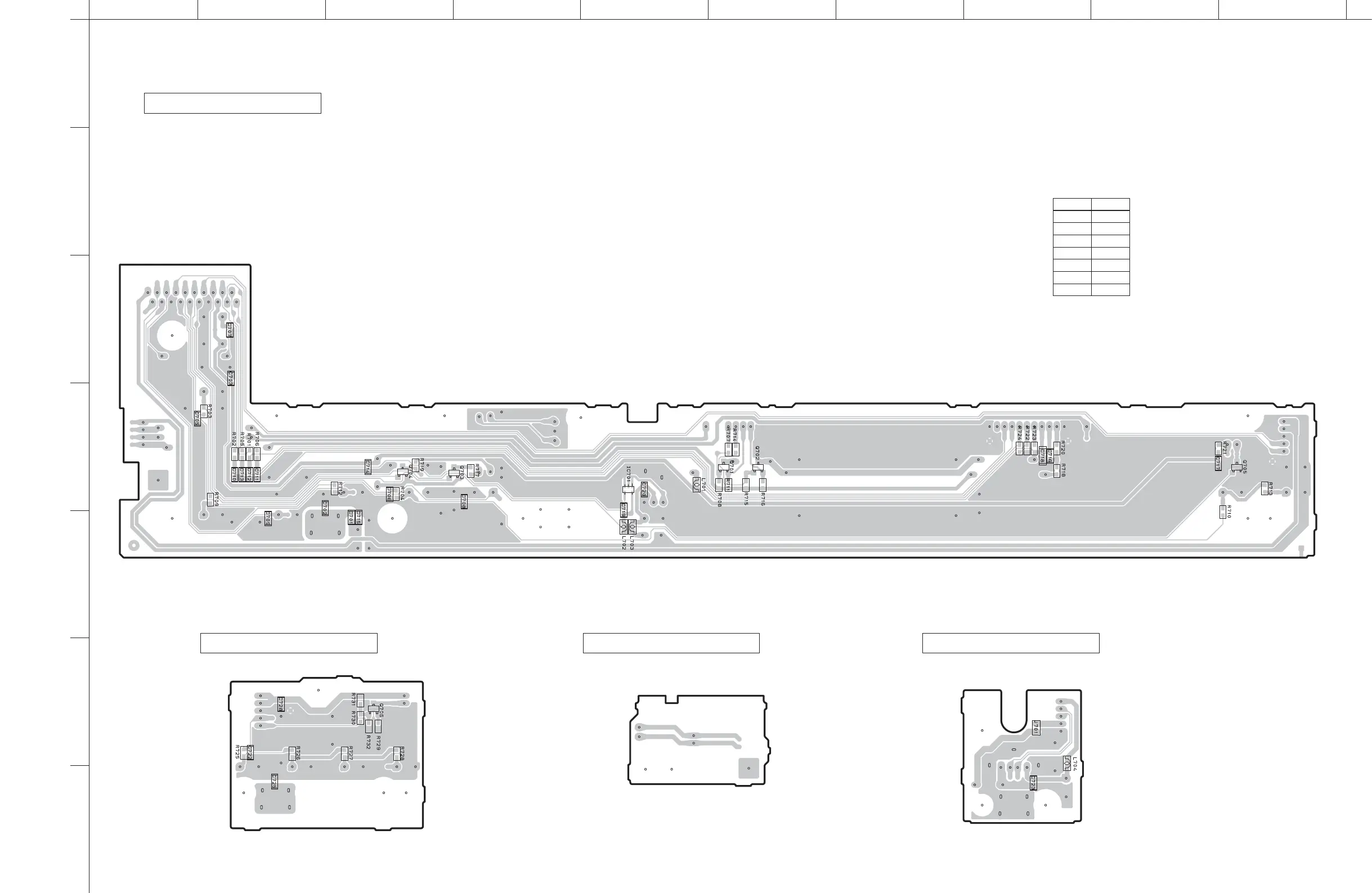

OPERATION (1) P.C.B. (Side B)
OPERATION (2) P.C.B. (Side B) OPERATION (3) P.C.B. (Side B) OPERATION (4) P.C.B. (Side B)
1
5
3
4
ABCDEFGH I J
1
2
3
4
5
6
7
CD-C600
41
• Semiconductor Location
Ref no. Location
IC701 E4
Q701 F4
Q702 F4
Q703 D4
Q704 C4
Q705 J4
Q706 C6
