3.4 Display control

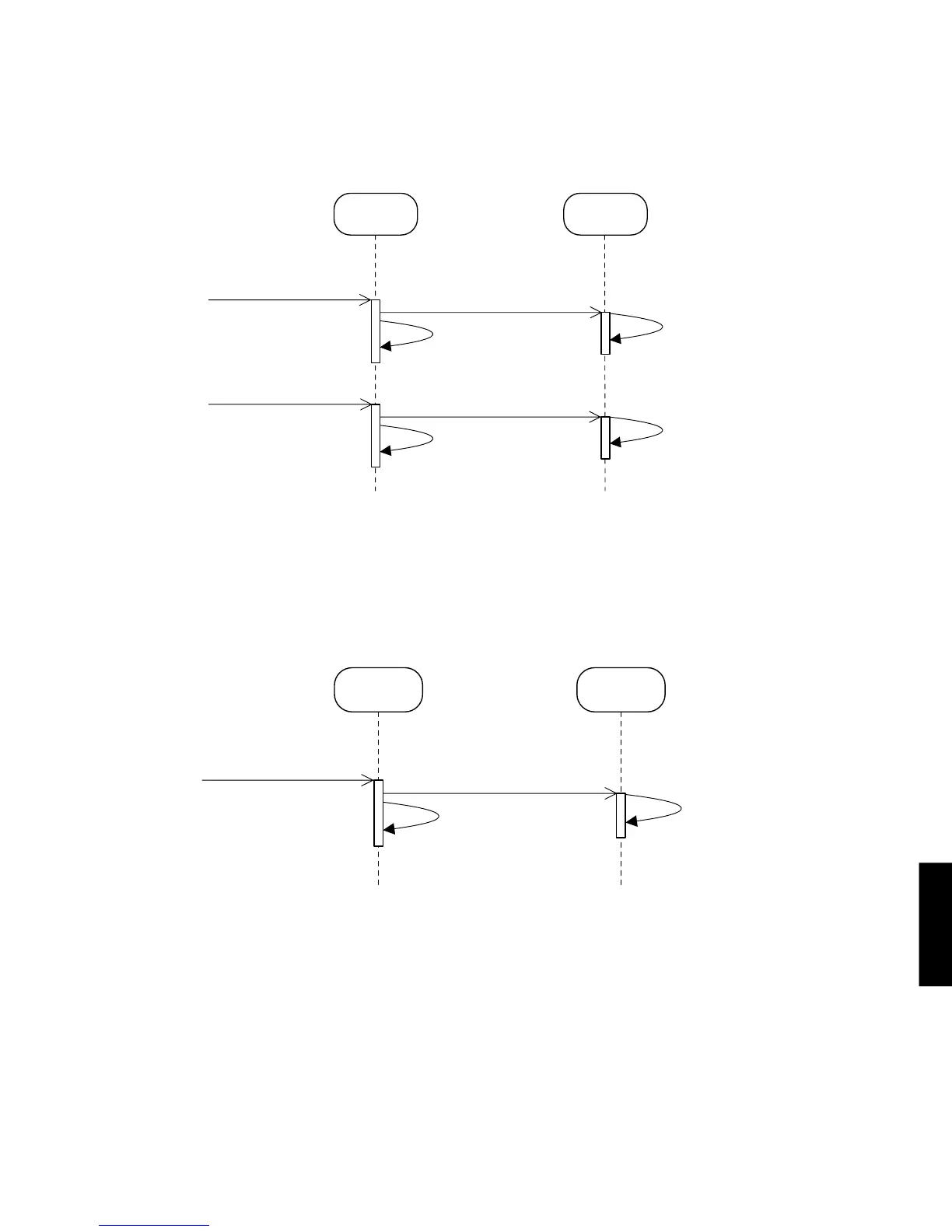

(1) Display dimmer function
This is the function to change the brightness of CD’s display by operating RX.
Exit: RX sends DIMMER_ON or DIMMER_OFF command, and then CD unit turn on VFD with the appropriate
dimmer value.
RX unit CD unit
Display dimmer on operation
Display dimmer on
Display dimmer on
Display dimmer off operation
Display dimmer off
Display dimmer off
DIMMER_ON command
DIMMER_OFF command
(2) Turn off VFD
This is the function to turn off VFD.
RX unit CD unit
VFD off operation
Turn off VFD
Turn off VFD
VFD_OFF command
