ANTENNA CONNECTIONS

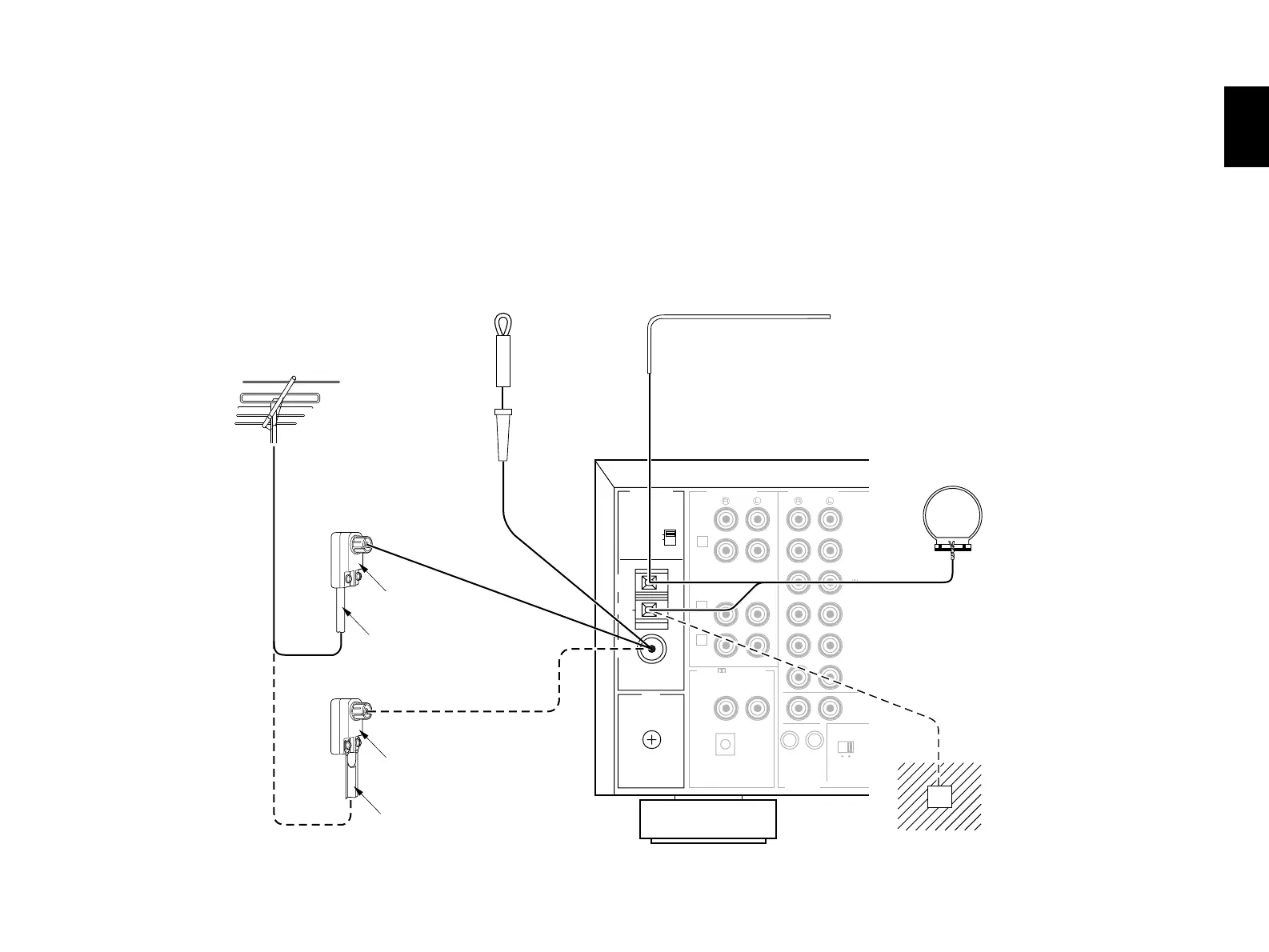

● Each antenna should be connected to the designated terminals correctly, referring to the following figure.
● Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength.
Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception
quality, an outdoor antenna may result in improvement.
Outdoor FM antenna
Outdoor AM antenna
AM loop
antenna
(included)
Ground
75-ohm/300-ohm
antenna adapter
75-ohm/300-ohm
antenna adapter
75-ohm coaxial cable
300-ohm feeder
Indoor FM
antenna
(included)
