4 Speaker System
Simplest system.
You can enjoy widely diffused sound
by only adding two additional speaker
units at the rear.
FRONT MIX switch—Set to ON.
(See page 22.)
CENTER SPEAKER—Set to PHNTM.
(See page 35.)
5 Speaker System
Good for Audio/Video sources.
By the use of center speaker, center
sounds (dialog, vocals etc.) are
precisely localized.
FRONT MIX switch—Set to ON.
(See page 22.)
CENTER SPEAKER—Set to NRML
or WIDE. (See page 35.)
6 Speaker System
Good for sound fields from 2-
channel stereo sources.
When a normal stereo source is
played back with the sound field
programs No. 5 through No. 10, a
sound effect matching that of a 7-
speaker system can be obtained. The
addition of front left and right effect
speakers produces a more effective
sound field.
FRONT MIX switch—Set to OFF.
(See page 22.)
CENTER SPEAKER—Set to PHNTM.
(See page 35.)
7 Speaker System
This is the recommended speaker
system, providing the best sound
effects.
When a normal stereo source is
played back with the sound field
programs No. 5 through No. 10, using
both sets of effect speakers (front and
rear), reproduces the most effective
sound field. When using the sound
field programs No. 1 through No. 4 or
when using any program with the
Dolby Digital (AC-3) decoded, the
center speaker provides precise center
localization.
FRONT MIX switch—Set to OFF.
(See page 22.)
CENTER SPEAKER—Set to NRML
or WIDE. (See page 35.)

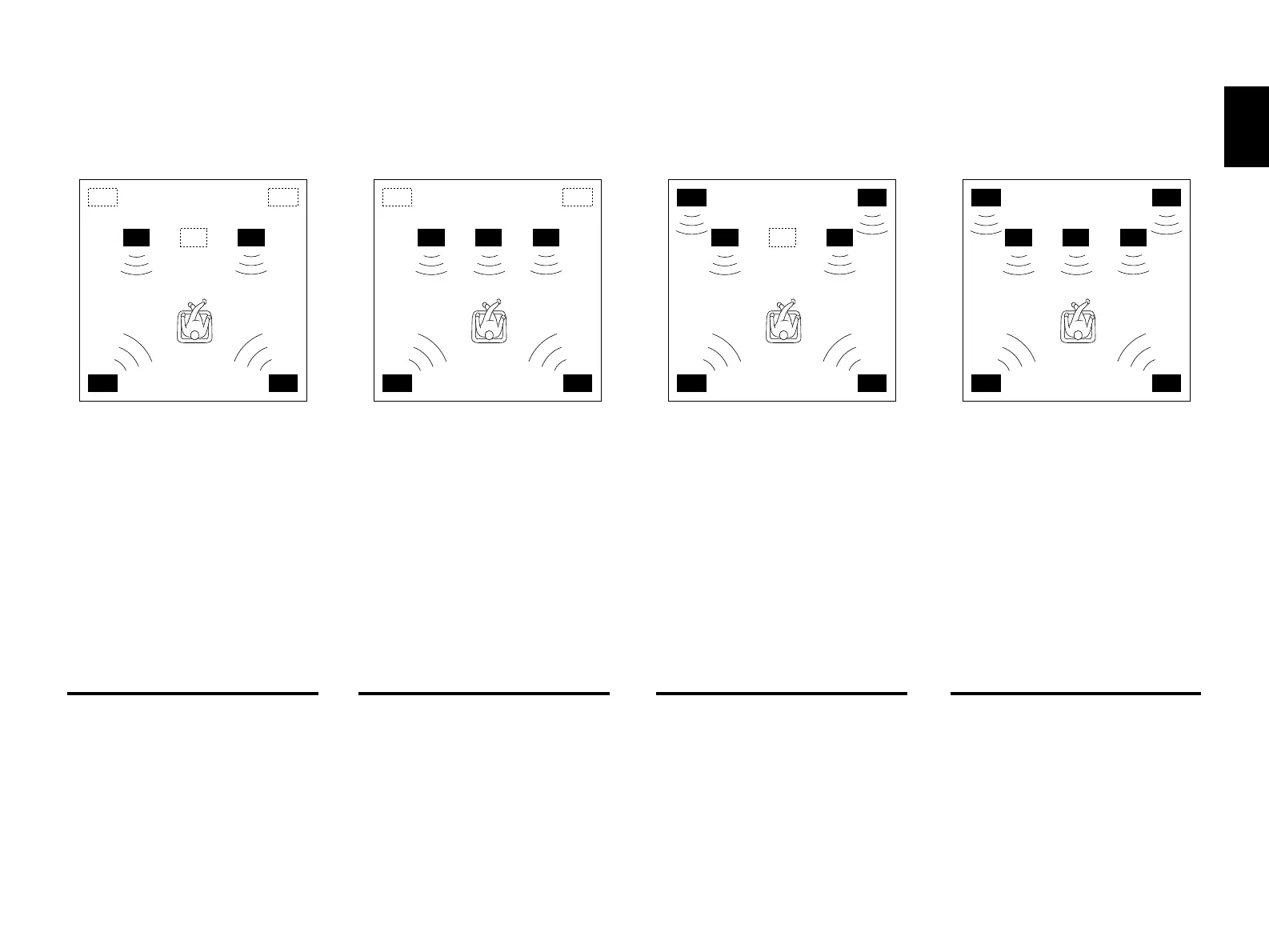

Four Possible Types of Speaker System Configurations Recommended
