30
CONNECTING SPEAKER SYSTEMS
Connect the SPEAKERS terminals to your speakers with wire
of the proper gauge, cut as short as possible. If the connections
are faulty, no sound will be heard from the speakers. Make sure
that the polarity of the speaker wires is correct, that is, + and –
markings are observed. If these wires are reversed, the sound will
be unnatural and will lack bass. Do not let the bare speaker wires
touch each other or any other metal part as this could damage this
unit and/or speakers.
NOTE: Use speakers with the specified impedance shown on the
rear of this unit.
Red: positive (+)
Black: negative (–)

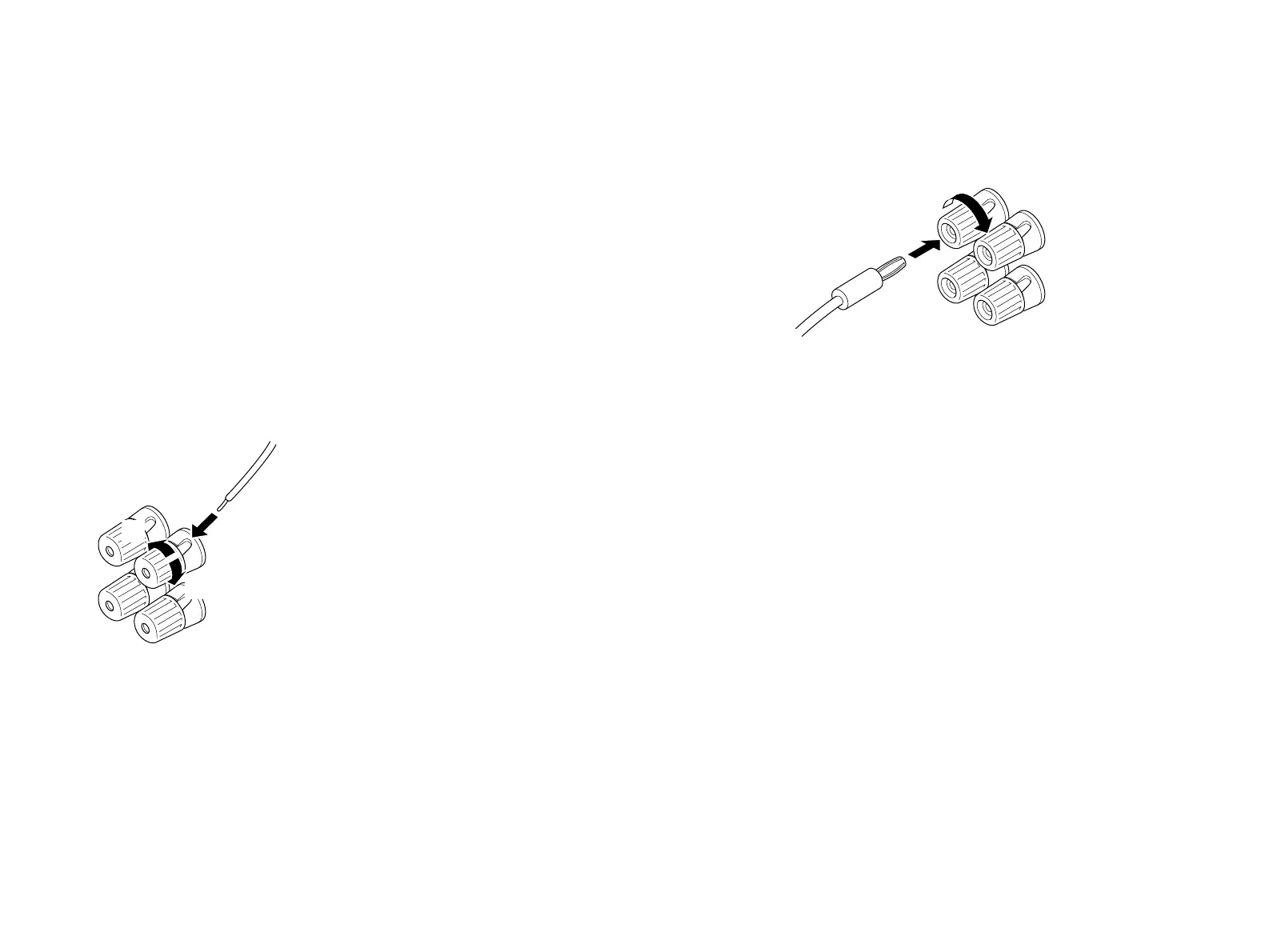

➀ Unscrew the knob.
➁ Insert the bare wire.
[Remove approx. 5mm (1/4”)
insulation from the speaker
wires.]
➂ Tighten the knob and
secure the wire.
NOTE: Banana Plug connections are also possible (except
Singapore model). Simply insert the Banana Plug connector into
the corresponding terminal.
