8

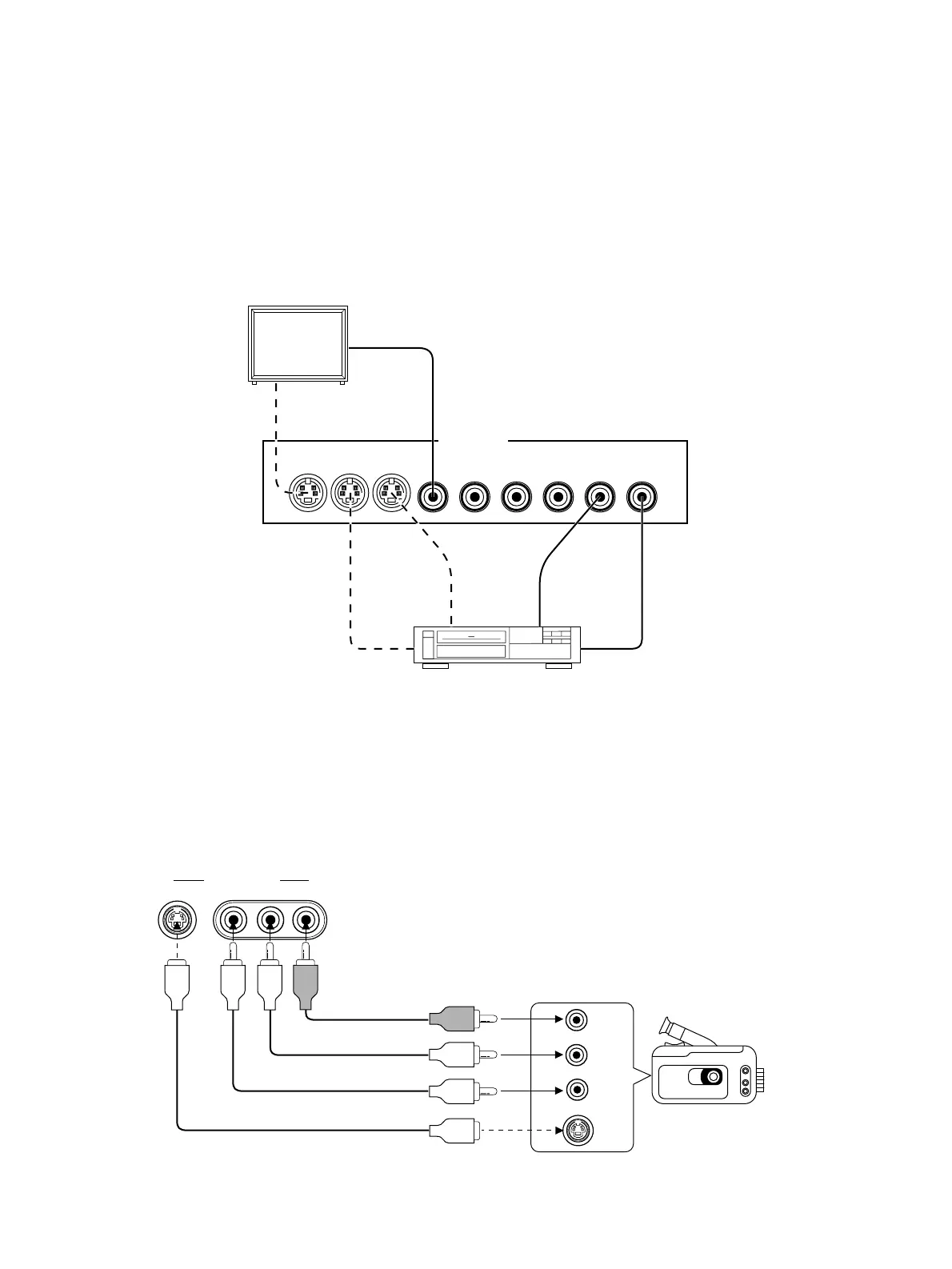

CONNECTING TO S VIDEO TERMINALS
If you have a video cassette recorder and a monitor equipped with “S” (high-resolution) video terminals, those terminals can be
connected to this unit’s S VIDEO terminals. Connect the video cassette recorder’s “S” video input and output terminals to this unit’s
S VIDEO VCR 2 IN and OUT terminals respectively, and connect the monitor’s “S” video input terminal to this unit’s S VIDEO
MONITOR OUT terminal. Otherwise, connect the video cassette recorder’s composite video terminals to this unit’s composite video
terminals, and connect the monitor’s composite video input terminal to this unit’s composite MONITOR OUT terminal.
Note
If video signals are sent to both S VIDEO input and composite input terminals, the signals will be sent to their respective
output terminals independently.
CONNECTING TO VIDEO AUX TERMINALS (ON THE FRONT PANEL)
These terminals are used to connect any video input source such as a camcorder to this unit.
MONITOR
OUT
S VIDEO
IN OUT
VCR 2
MONITOR
OUT
LD/TV
IN OUT
VCR 1
IN OUT
VCR 2
VIDEO SIGNAL
S VIDEO
IN
VIDEO
IN
S VIDEO OUT S VIDEO IN VIDEO OUT VIDEO IN
Monitor TV
VIDEO AUX
S VIDEO VIDEO L AUDIO R
S VIDEO
L
R
VIDEO
Video cassette recorder 2
Camcorder
AUDIO OUT R
AUDIO OUT L
VIDEO OUT
S VIDEO OUT
