Yamaha DSP-A590 User Manual

Note on front speaker connection:
One or two speaker systems can be connected to this unit. If
you connect only one speaker system, connect it to either the
SPEAKERS A or B terminals.
FRONT LEVEL switch
<
U.K., Europe and Australia models only
>
Normally set to “0 dB”. If desired, you can decrease the
output level at the FRONT SPEAKERS terminals by 10 dB by
setting this switch to “–10 dB”.
Note on center speaker connection:
One or two center speakers can be connected to this unit. If
you cannot place the center speaker on or under the TV, it is
recommended to use two center speakers and place them on
both sides of the TV to orient the center sound at the center
position. For connecting two center speakers, follow the
method shown below.
9
English
CONNECTING SPEAKERS
A OR B:8 Ω MIN.
/SPEAKER
A B:l6
Ω MIN.
/SPEAKER
FRONT
C D:4 Ω MIN./SPEAKER
SINGLE:8ΩMIN./SPEAKER
8
Ω MIN.
/SPEAKER
REAR
CENTER
FRONT CENTER REAR
SPEAKERS
SPEAKERS
OUTPUT
A
B
A
B
l0 dB 0 dB -
FRONT
LEVEL
fc:200Hz
LOW
PASS
CD
DUAL
SINGLE

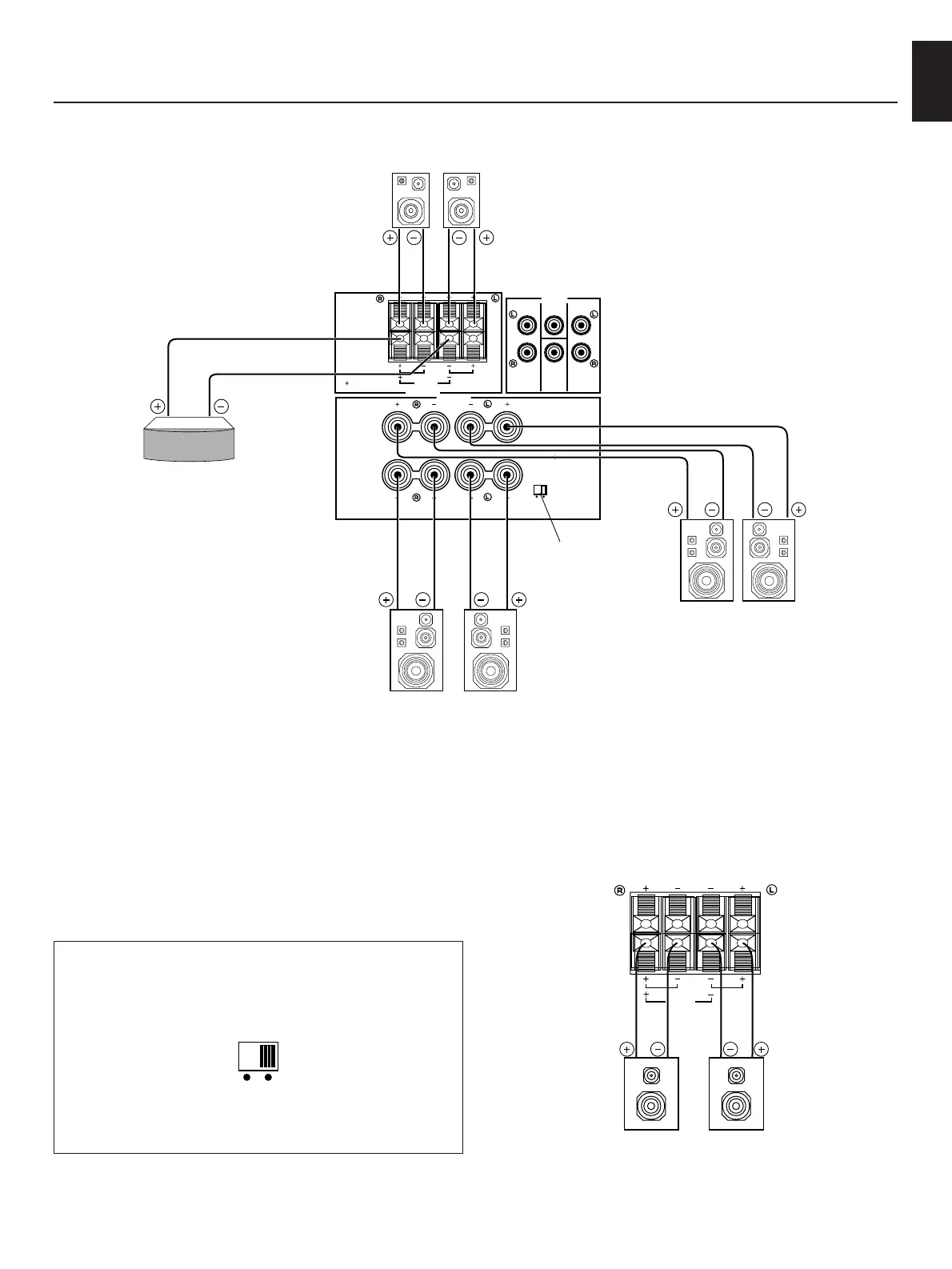

Connect the respective speakers to this unit as figured below.
Rear speakers
Center speaker
FRONT LEVEL
switch
(U.K., Europe and
Australia models)
Front speakers B
Left
Right
Left
Right
Center speaker Center speaker
Front speakers A
Left
Right
l0 dB 0 dB
FRONT
LEVEL
l
REAR
CENTER
CD
DUAL
SINGLE
