CONNECTIONS
Before attempting to make any connections to or from this unit, be sure to first switch OFF the power to this unit and to any other
components to which connections are being made.

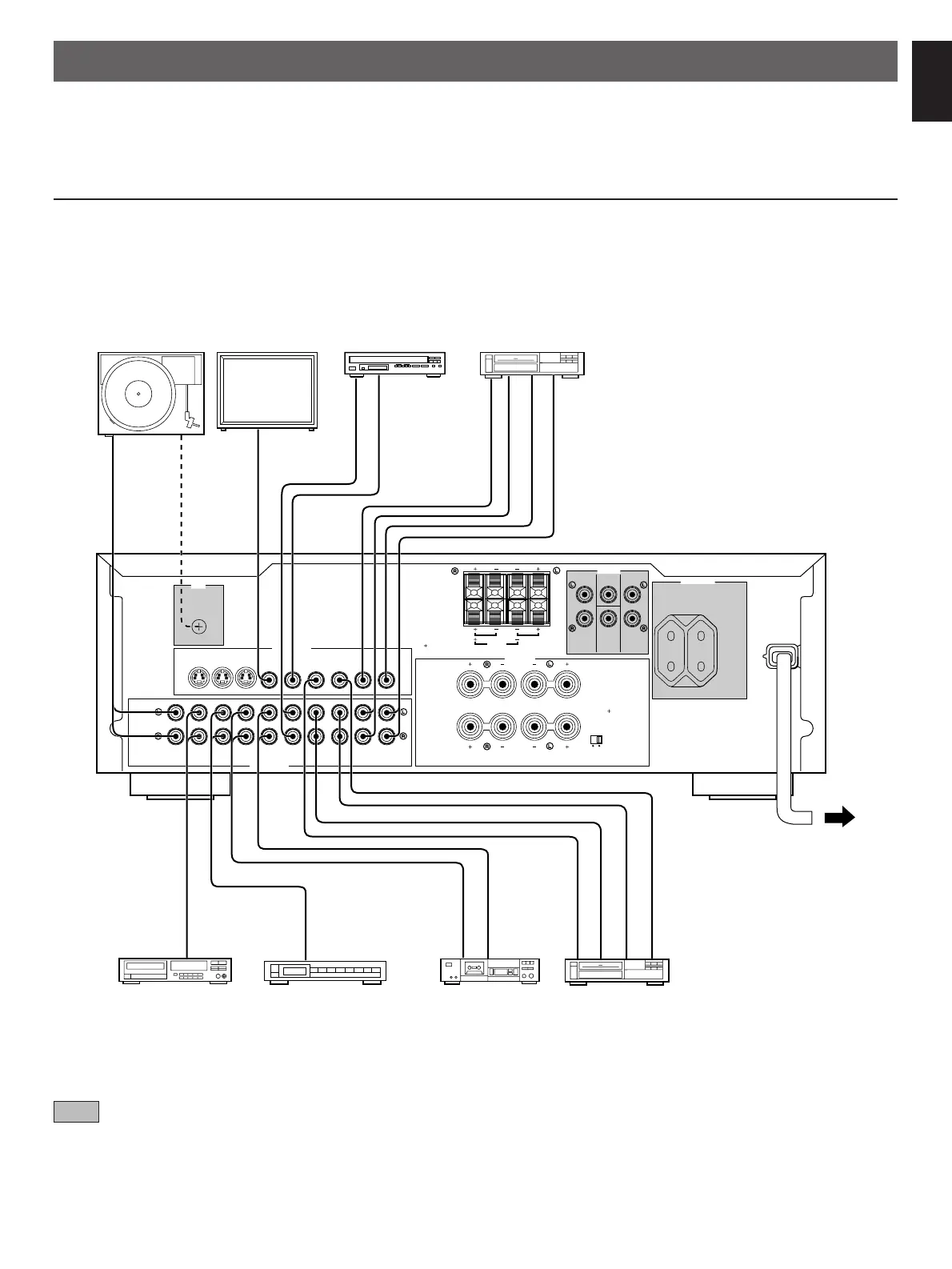

CONNECTIONS WITH OTHER COMPONENTS
When making connections between this unit and other components, be sure all connections are made correctly, that is to say L (left)
to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this unit.
: Refer to “ABOUT THE ACCESSORY TERMINALS” on page 11.
GND
MONITOR
OUT
8 VIDEO
IN OUT
VCR 2
MONITOR
OUT
LD/TV
IN OUT
VCR 1
IN OUT
VCR 2
PHONO CD TAPE LD/TV VCR 1 VCR 2
TAPE
PB
REC
OUT
IN OUT IN OUT
A OR B:8 Ω MIN.
/SPEAKER
A B:l6
Ω MIN.
/SPEAKER
FRONT
C D:4 Ω MIN./SPEAKER
SINGLE:8ΩMIN./SPEAKER
8
Ω MIN.
/SPEAKER
REAR
CENTER
CD
DUAL
SINGLE
FRONT CENTER REAR
SWITCHED
l20W MAX. TOTAL
VIDEO SIGNAL
AUDIO SIGNAL
SPEAKERS
SPEAKERS
OUTPUT
AC OUTLETS
A
B
A
B
l0 dB 0 dB -
FRONT
LEVEL
fc:200Hz
LOW
PASS
MAINS
OUTPUT
GND
VIDEO IN
AUDIO OUT
VIDEO OUT VIDEO OUT
AUDIO OUT
VIDEO IN
AUDIO IN
OUTPUT LINE OUT LINE IN VIDEO OUT AUDIO OUT AUDIO IN VIDEO IN
TUNER
OUTPUT
(Europe model)
To AC outlet
Turntable Monitor TV
LD player,
TV tuner, etc. Video cassette recorder 2
CD player Tape deck Video cassette recorder 1
Tuner
