DSP-AX2
DSP-AX2
12
1. DSP THROUGH
There are 3 sub menu items (ANALOG BYPS, DSP 0dB, FULL BIT).
Details of DIAG menu
Note: (SDOxx) represents a terminal name of AC3D3.
The shaded square ( ) means that the element included in it does not operate.
ANALOG BYPS [Remote control code: 7A—90(PRG 9)]
• The input mode is fixed to use the analog (A/D) system.
• The L/R signal is output through the analog bypass without using the DSP section.

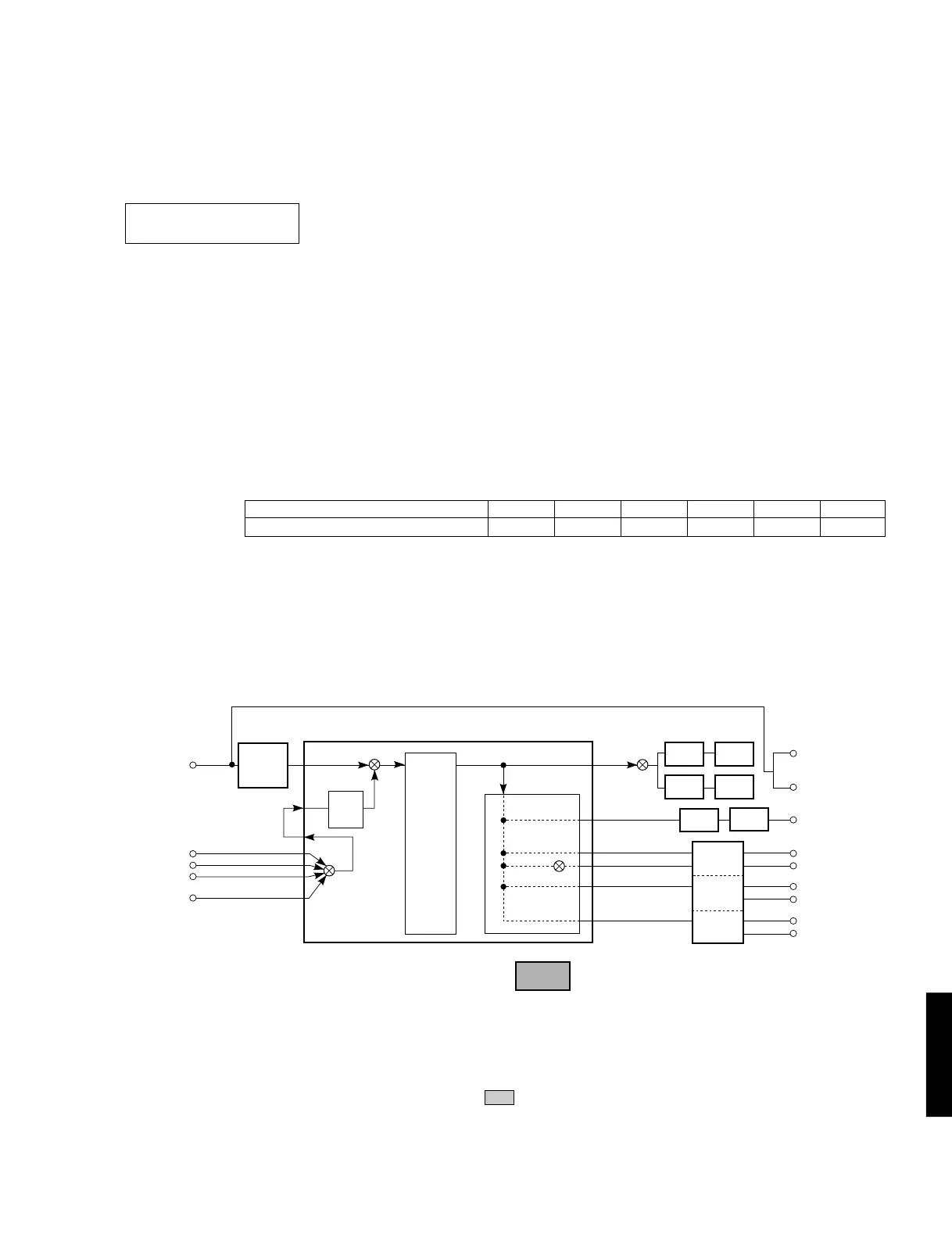

• C/RC, FL/FR, RL/RR and SWFR signals are output through DSP (see the signal path
in the figure below) without using the external DRAM. (Head margin included)
1. DSP THROUGH
ANALOG BYPS
SWFR
RL
RR
FL
FR
C
RC
L
R
FILTER
DF1704
FILTER
DF1704
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
D/A
PCM1704
CODEC
(D/A)
AK4527
L/R
L/R
L
R
L/R
L/R
L/R
SDOA0
SDOB0
SDOB1
SDOB2
SDOB3
CODEC
(A/D)
AK4527
DIR
PCM THR
MAIN
DSP
(Decoder)
SUB DSP
DIGITAL
ANALOG
AC3D3 YSS928
4M DRAM
Head margin
CENTER: -6dBFS
REAR CENTER: -3dBFS
FL/FR: -6dBFS
RL/RR: -12dBFS
SWFR: Add L/R signal at -20dBFS.
Condition
Both ch, -20 dBV, volume 0dB
MAIN L/R
-3.5 dBV
CENTER
-3.5 dBV
REAR C
-3.5 dBV
SWFR
+8.5 dBV
REAR L/R
-3.5 dBV
FRONT L/R
-3.5 dBV
Reference (PRE OUT)
INPUT : DVD ANALOG
SWFR: 50Hz, Others: 1kHz
To Next Page
