■ GENERAL
Power Supply
B, G models . . . . . . . . . . . . . . . . . . . . . . . AC 230V, 50Hz
R, T models . . . . . . . . . . . AC 110/120/220/240V, 50/60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 480W
Maximum Power Consumption (R, T models only) . . 770W
Standby Power Consumption
B, G models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2W
R, T models (AC220V, 50Hz) . . . . . . . . . . . . . . . . . . . 1.5W
AC Outlets
R, T, G models, Switched x 3 . . . . . . . . 100W max (Total)
B models, Switched x 1 . . . . . . . . . . . . . . . . . . 100W max
Dimensions (W x H x D) . . . . . . . . . . . . . 449 x 191 x 468mm
(17-11/16” x 7-1/2” x 18-7/16”)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.0 kg (48 lbs 8oz)
Finish
R, B, G, T models . . . . . . . . . . . . . . . . . . . . . . Black color
R, B, G, T models . . . . . . . . . . . . . . . . . . . . . . .Gold color
G model . . . . . . . . . . . . . . . . . . . . . . . . . . . .Titanium color
Accessories . . . . . . . . . . . . Remote Control Transmitter x 1
Battery (size "AA", "R06") x 3
Power Cord x 1(G only)
Sheet/side(L, R) x 1
* Specifications subject to change without notice.
B . . . . . . . . British model
G . . . . . European model
R . . . . . . . General model
T . . . . . . . . . China model

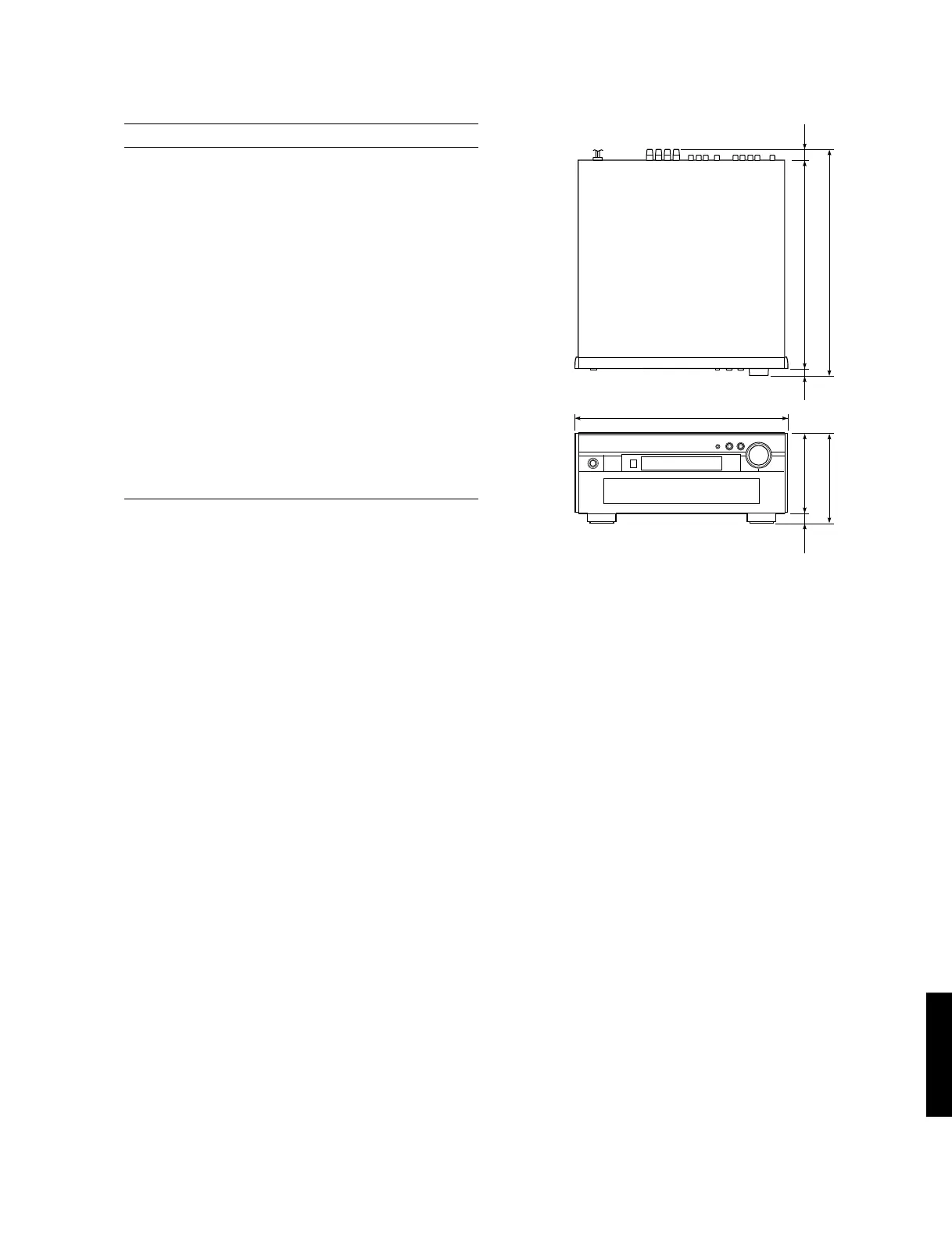

● DIMENSIONS
429 (16–7/8")
468 (18–7/16")
16
(5/8")
449 (17–11/16")
21
(13/16")
23
(7/8")
170
(6–11/16")
191
(7–1/2")
Units : mm (inch)
