Yamaha DSP-AX450 User Manual

17
RX-V550/HTR-5750
RX-V450/HTR-5740/DSP-AX450
RX-V550 Except RX-V550
161 (6-5/16")
140 (5-1/2")
376.8 (14-13/16")
21
(13/16")
171 (6-3/4")
150 (5-15/16")
21
(13/16")
17.2
(11/16")
22
(7/8")
416 (16-3/8")
380 (15")
18
(11/16")
22
(7/8")
420 (16-1/2")
435 (17-1/8")
Unit : mm (inch)/単位:mm（インチ）
■ SPECIFICATIONS / 参考仕様
■ Audio Section/オーディオ部
Minimum RMS Output Power (Power Amp. Section)/定格出力(パ
ワーアンプ部)
[RX-V550/HTR-5750]
(20 Hz to 20 kHz, 0.06% THD, 8 ohms)
FRONT L/R 90 W + 90 W
CENTER 90 W
SURROUND L/R 90 W + 90 W
SURROUND BACK 90 W
(1 kHz, 0.7% THD, 8 ohms)
FRONT L/R 105 W + 105 W
CENTER 105 W
SURROUND L/R 105 W + 105 W
SURROUND BACK 105 W
[RX-V450/HTR-5740]
(20 Hz to 20 kHz, 0.06% THD, 8 ohms)
FRONT L/R 85 W + 85 W
CENTER 85 W
SURROUND L/R 85 W + 85 W
SURROUND BACK 85 W
(1 kHz, 0.7% THD, 8 ohms)
FRONT L/R 100 W + 100 W
CENTER 100 W
SURROUND L/R 100 W + 100 W
SURROUND BACK 100 W
[DSP-AX450]
(20 Hz to 20 kHz, 0.09% THD, 6 ohms)
FRONT L/R 85 W + 85 W
CENTER, REAR CENTER 85 W
SURROUND L/R 85 W + 85 W
SURROUND BACK 85 W
Maximum Power/実用最大出力 (EIAJ)
(1kHz, 10% THD)
[RX-V550/HTR-5750] (R, T, K models)
FRONT L/R (8 ohms) 130 W + 130 W
CENTER, REAR CENTER (8 ohms) 130 W
SURROUND L/R (8 ohms) 130 W + 130 W
SURROUND BACK (8 ohms) 130 W
[RX-V450/HTR-5740] (R, T, K models)
FRONT L/R (8 ohms) 125 W + 125 W
CENTER, REAR CENTER (8 ohms) 125 W
SURROUND L/R (8 ohms) 125 W + 125 W
SURROUND BACK (8 ohms) 125 W
[DSP-AX450]
FRONT L/R (6 ohms) 125 W + 125 W
CENTER, REAR CENTER (6 ohms) 125 W
SURROUND L/R (6 ohms) 125 W + 125 W
SURROUND BACK (6 ohms) 125 W
DIN Standard Output Power Per Channel/DINパワー
(B, G, E, L models) (1 kHz, 0.7% THD, 4 ohms)
[RX-V550/HTR-5750]
FRONT L/R 135 W + 135 W
CENTER 135 W
SURROUND L/R 135 W + 135 W
SURROUND BACK 135 W
[RX-V450/HTR-5740]
FRONT L/R 130 W + 130 W
CENTER 130 W
SURROUND L/R 130 W + 130 W
SURROUND BACK 130 W
IEC Power /IECパワー[B, G, E, L models]
[RX-V550/HTR-5750]
FRONT L/R (1 kHz, 0.06% THD, 8 ohms) 100 W + 100 W
[RX-V450/HTR-5740]
FRONT L/R (1 kHz, 0.06% THD, 8 ohms) 95 W + 95 W
Dynamic Power Per Channel/ダイナミックパワー (IHF)
[RX-V550/HTR-5750]
FRONT L/R (8/6/4/2 ohms) 120/155/190/235 W
[RX-V450/HTR-5740]
FRONT L/R (8/6/4/2 ohms) 115/150/185/230 W
[DSP-AX450]
FRONT L/R (8/6/4/2 ohms) –/125/155/200 W
Dynamic Headroom/ダイナミックヘッドルーム (U, C models)
[RX-V550/HTR-5750]
8 ohms 1.25 dB
[RX-V450/HTR-5740]
8 ohms 1.31 dB
Damping Factor/ダンピングファクタ
20 Hz to 20 kHz, SPEAKER-A 100 or more
Input Sensitivity / Input Impedance(入力感度/入力インピーダンス)
CD, etc. 200 mV / 47 k-ohms
MULTI CH IN
FRONT L/R, CENTER, SURROUND L/R, SUB WOOFER
200 mV / 47 k-ohms
Maximum Input Signal Level /最大許容入力
1 kHz, 0.5% THD 2.0 V or more
Output Level / Output Impedance(出力電圧/出力インピーダンス)
REC OUT 200 mV / 1.2 k-ohms
20Hz SUB WOOFER 4 V / 1.2 k-ohms
ZONE2 (RX-V550 U, C, A models) 200 mV / 1.2 k-ohms
Headphone Jack Rated Output / Impedance
ヘッドフォン出力/出力インピーダンス
CD, etc. (1 kHz, 50 mV, 8 ohms) 150 mV / 100 ohms
Frequency Response/周波数特性
CD, etc. to FRONT L/R (10 Hz to 100 kHz) +0/-3.0 dB
Total Harmonic Distortion/全高調波歪率
(20Hz to 20kHz, 40W, 8 ohms)
CD, etc. (Effect Off) to FRONT L/R SP OUT 0.06 % or less
Signal to Noise Ratio / 信号対雑音比 (IHF-A Network)
CD, etc. (Input shorted) SP OUT
250mV 100 dB or more
Residual Noise/残留ノイズ (IHF-A Network)
FRONT L/R SP OUT 150 µV or less
Channel Separation/チャンネルセパレーション
CD, etc. (Input 5.1 k-ohms shorted, 1 kHz/10 kHz)
60 dB or more/45 dB or more
Tone Control Characteristics/トーンコントロール特性
BASS
Boost/Cut ±10 dB (60 Hz)
TREBLE
Boost/Cut ±10 dB (20 kHz)
Filter Characteristics/フィルター特性
FRONT L/R, CENTER, SURROUND L/R SURROUND BACK SP
Small (H.P.F.)
fc= 40/60/80/90/100/110/120/160/200 Hz / 12 dB/ oct.
SUBWOOFER (L.P.F.)
fc= 40/60/80/90/100/110/120/160/200 Hz / 24 dB/ oct.
■ Video Section/ビデオ部
Video Signal Type/ビデオ信号方式
U, C, R, K, J models NTSC
A, B, G, E, L, T models PAL
Video Signal Level/ビデオ信号
1 Vp-p / 75 ohms
S-Video Signal Level/Sビデオ信号
[RX-V550/HTR-5750/DSP-AX450]
Y 1 Vp-p / 75 ohms
C 0.286 Vp-p / 75 ohms
Component Signal Level (Except J model)
Y 1 Vp-p / 75 ohms
Cb/Cr 0.7 Vp-p / 75 ohms
D4-Video Signal Level / D4端子ビデオ信号 (J model)
Y 1 Vp-p / 75 ohms
Cb/Cr 0.7 Vp-p / 75 ohms
Maximum Input Level/最大許容入力
1.5 Vp-p or more
Signal to Noise Ratio/信号対雑音比
50 dB or more
Monitor Out Frequency Response/モニターアウト周波数帯域
[RX-V550/HTR-5750]
Composite Video Signal Level,
S-Video Signal Level 5 Hz to 10 MHz, -3 dB
S-Video Signal Level (J model) 5 Hz to 10 MHz, -3 dB
Component Video Signal Level 5 Hz to 60 MHz, -3 dB
[RX-V550/HTR-5750/DSP-AX450]
Composite Video Signal Level 5 Hz to 10 MHz, -3 dB
S-Video Signal Level (J model) 5 Hz to 10 MHz, -3 dB
Component Video Signal Level (Except J model)
5 Hz to 60 MHz, -3 dB
D4-Video Signal Level (J model) 5 Hz to 60 MHz, -3 dB
■ FM Section/FM部
Tuning Range/受信周波数範囲
U, C models 87.5 to 107.9 MHz
A, B, G, E, T, K models 87.5 to 108.0 MHz
L, R models 87.5 to 108.0 / 87.50 to 108.00 MHz
J model 76.0 to 90.0 MHz
50dB Quieting Sensitivity/50dBSN感度 (IHF)
(1kHz, 100% Mod.)
Mono 2.0 µV (17.3 dBf)
Stereo 25 µV (39.2 dBf)
Usable Sensitivity/実用感度 (IHF)
Mono 1.0 µV (11.2 dBf)
Selectivity/選択度
70 dB
Signal to Noise Ratio/信号対雑音比 (IHF)
Mono / Stereo 76 dB / 70 dB
Harmonic Distortion/歪率
(1 kHz)
Mono/Stereo 0.2 / 0.3 %
Stereo Separation/ステレオセパレーション
1 kHz 42 dB
Frequency Response/周波数特性
20 Hz to 15 kHz +0.5 / -2 dB
Antenna Input/アンテナ入力
75 ohms unbalanced
■ AM Section/AM部
Tuning Range/受信周波数範囲
U, C models 530 to 1,710 kHz
A, B, G, E, T, K, J models 531 to 1,611 kHz
L, R models 530 to 1,710 / 531 to 1,611 kHz
Usable Sensitivity/実用感度
300 µV/m
Antenna/アンテナ入力
Loop Antenna
■ General/総合
Power Supply /電源電圧
U, C models AC 120 V, 60 Hz
A model AC 240 V, 50 Hz
B, G, E models AC 230 V, 50 Hz
L model AC 220/230-240 V, 50/60 Hz
R model AC 110/120/220/230-240 V, 50/60 Hz
T model AC 220 V, 50 Hz
K model AC 220 V, 60 Hz
J model AC 100V, 50/60 Hz
Power Consumption / 消費電力
U, C models 350 W / 440 VA
A, B, G, E, L, R, T, K models 360 W
J model 245 W
Standby Power Consumption (reference data)/待機時消費電力
（参考値） AC240 V / 50 Hz 0.1 W
Maximum Power Consumption [R model]
(6ch Drive, 10% THD) 700 W
AC Outlets/ACアウトレット
2 Switched Outlets
U, C, G, E, T, J models 100 W max. total
L, R models 50 W max. total
1 Switched Outlet
A, B models 100 W max.
Dimensions/寸法 (W x H x D)
RX-V550 435 x 171 x 420 mm (17-1/8" x 6-3/4" x 16-1/2")
HTR-5750/RX-V450/HTR-5740/DSP-AX450
435 x 161 x 416 mm (17-1/8" x 6-5/16" x 16-3/8")
Weight/質量
11.0 kg (24 lbs. 4 oz.)
Finish/仕上げ
RX-V550 .......................... Gold color (L, R, T, K) models
Black color (U, C, A, B, G, E, R) models
Titanium color (B, G, E models)
HTR-5750 ............................ Gold color (T, K) models
Black color (U, C) models
Silver color (U, C, A) models
RX-V450 .......................... Gold color (L, R, T, K) models
Black color (U, C, A, B, G, E, R) models
Silver color (C, L, R) models
Titanium color (B, G, E models)
HTR-5740 ........................ Gold color (T, K) models
Black color (U, C, G, E) models
Silver color (U, C, A, G, E) models
DSP-AX450 ..................... Gold color (J) model
Silver color (J) model
Accessories/付属品
Remote Control x 1, Batteries (Manganese Dry) x 4 (RAV250/
RAV251) / x 2 (RAV302), Indoor FM Antenna x 1, AM Loop
Antenna x 1, PAL 75/300 Socket [B model]
* Specifications are subject to change without notice due to product
improvements.
※ 参考仕様および外観は予告なく変更されることがあります。
U .......... U.S.A. model C ...... Canadian model
A .......... Australian model B ...... British model
G .......... European model E ...... South European model
L ........... Singapore model R ...... General model
T .......... Chinese model K ...... Korean model
J ........... Japanese model
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, “Surround EX”, and the double-D symbol are
trademarks of Dolby Laboratories.
ドルビーラボラトリーズからの実施権に基づき製造されています。ド
ルビー、DOLBY、ドルビーデジタル、PROLOGIC、サラウンドEXお
よびダブルD記号 は、ドルビーラボラトリーズの商標です。
"SILENT CINEMA" is a trademark of YAMAHA CORPORATION.
「サイレントシアター／SILENTTHEATER」はヤマハ株式会社の登録
商標です。
“DTS” and “DTS-ES Digital Surround” and “Neo:6” are
trademarks of Digital Theater Systems, Inc.
DTS、DTS-ESデジタルサラウンドおよびNeo:6はデジタルシアター
システムズの登録商標です。
AACロゴマーク はドルビーラボラトリーズの商標です。

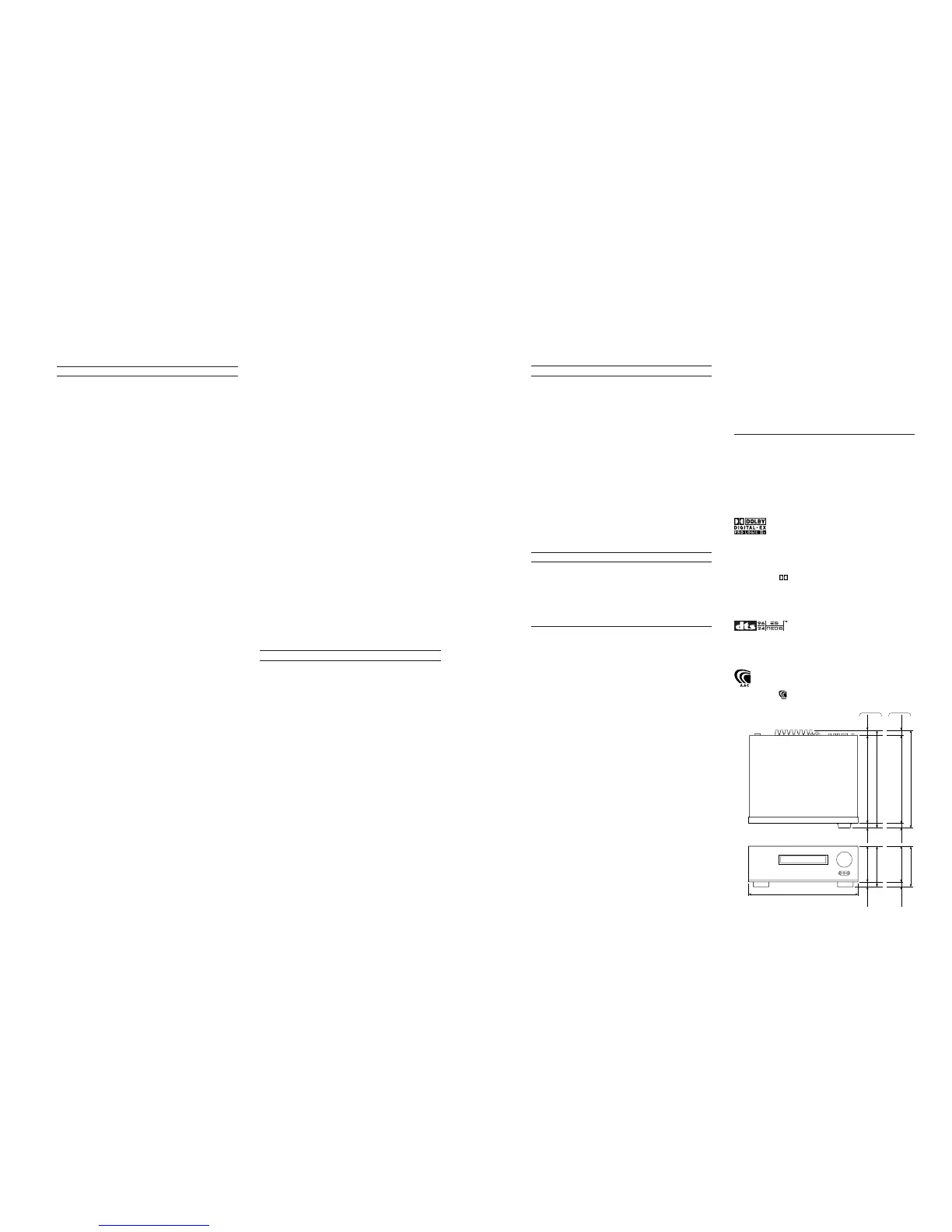

• DIMENSIONS/寸法図
