Yamaha DSP-AX450 User Manual

RX-V550/HTR-5750
RX-V450/HTR-5740/DSP-AX450
18
CATEGORY MAIN MENU SUB MENU SELECT MENU VALUE [INITIAL]
BASIC SETUP ROOM : S >M L S / [M] / L
SUBWOOFER : YES [YES] / NONE
SPEAKER : 6spk 2 / 3 / 4 / 5 / [6]
>SET CANCEL [SET] / CANCEL
CHECK OK? : YES [YES] / NO
MANUAL SETUP 1 SOUND MENU A ) SPEAKER SET CENTER : SML NONE / [SML] / LRG
FRONT : LARGE SMALL / [LARGE]
SURR LR : SML NONE / [SML] / LRG
SURR B : SML NONE / [SML] / LRG
BASS OUT : BOTH SWFR / FRONT / [BOTH]
Cross Over : 80Hz 40 / 60 / [80] / 100 / 110 / 120 / 160 / 200 Hz
SWFR PHASE : NRM [NRM] / REV
B ) SP LEVEL L •••••||••••• R [CENTER] ± 10 step
C •••••||•••••
RL •••••||•••••
RC •••••||•••••
RR •••••||•••••
SWFR•••••||•••••
C ) SP DISTANCE UNIT : feet [feet] / meters
FRONT L 10.0ft feet : 1.0 to 80.0 ft [7.0ft] / 0.5 ft step
FRONT R 10.0ft
CENTER 10.0ft
SURR L 10.0ft
SURR R 10.0ft
SURR B 7.0ft
SWFR 10.0ft
FRONT L 3.00m meters : 0.30 to 24.00 m [3.00m] / 0.10 m step
FRONT R 3.00m
CENTER 3.00m
SURR L 3.00m
SURR R 3.00m
SURR B 3.00m
SWFR 3.00m
D ) CENTER GEQ TEST : >OFF ON [OFF] / ON
100Hz -||- 0 -6 dB to +6 dB [0 dB] / 0.5 STEP
300Hz -||- 0
1kHz -||- 0
3kHz -||- 0
10kHz -||- 0
E ) LFE LEVEL SP LFE : 0 -20 dB to 0 dB [0 dB] / 1 STEP
HP LFE : 0 -20 dB to 0 dB [0 dB] / 1 STEP
F ) D . RANGE SP D . R : MAX MIN / STD / [MAX]
HP D . R : MAX MIN / STD / [MAX]
G ) AUDIO SET MUTE : MUTE -20 dB / [MUTE]
DELEY : 0 ms 0 ms to 160 ms / 1 step
( Except RX-V550 ) DUAL MONO : MAIN [MAIN] / SUB / ALL
2 INPUT MENU A ) I / O ASSIGN C . V (A) : DVD [DVD] / VCR / V-AUX / DTV/CBL
C . V (B) : DVT/CBL DVD / VCR / V-AUX / [DTV/CBL]
OUT (1) : MD/CD-R [MD/CD-R] / CD / VCR / V-AUX / DTV/CBL / DVD
IN (2) : MD/CD-R [MD/CD-R] / CD / VCR / V-AUX / DTV/CBL / DVD
IN (3) : DVD MD/CD-R / CD / VCR / V-AUX / DTV/CBL / [DVD]
IN (4) : DTV/CBL MD/CD-R / CD / VCR / V-AUX / [DTV/CBL] / DVD
B ) INPUT MODE > AUTO / LAST [AUTO] / LAST
3 OPTION MENU A ) DISPLAY SET DIMMER : 0 -4 to 0 / 1 step
V CONV : ON OFF / [ON]
B ) MEMORY GUARD MEM . GUARD : OFF [OFF] / ON
C ) PARAM . INI
D ) ZONE SET SP B : FRONT [FRONT] / ZONE B
1 SUBTRANS P.C.B.
2 POWER (2) P.C.B. (R, L models only)
3 FUNCTION (5) P.C.B. (U, C, A models only)
4 MAIN (2) P.C.B.
5 Tuner
6 FUNCTION (7) P.C.B.
7 FUNCTION (3) P.C.B.
8 FUNCTION (4) P.C.B.
9 FUNCTION (8) P.C.B.
0 FUNCTION (6) P.C.B.
A FUNCTION (2) P.C.B.
B DSP P.C.B.
C MAIN (1) P.C.B.
D FUNCTION (1) P.C.B.
E POWER (1) P.C.B.
F MAIN (7) P.C.B.
G MAIN (4) P.C.B.
H OPERATION (4) P.C.B.
I OPERATION (1) P.C.B.
J OPERATION (3) P.C.B.
K OPERATION (2) P.C.B.
L Power Transformer
HILKJ
B
A
C
D
E
F
G
1234567890
RX-V550
1 SUBTRANS P.C.B.
2 POWER (2) P.C.B. (R, L models only)
3 VIDEO P.C.B. (DSP-AX450 only)
4 MAIN (2) P.C.B.
5 Tuner
6 FUNCTION (7) P.C.B. (Except DSP-AX450)
7 FUNCTION (3) P.C.B. (HTR-5750, DSP-AX450 only)
8 FUNCTION (4) P.C.B.
9 FUNCTION (8) P.C.B.
0 FUNCTION (6) P.C.B.
A FUNCTION (2) P.C.B.
B DSP P.C.B.
C MAIN (1) P.C.B.
D FUNCTION (1) P.C.B.
E POWER (1) P.C.B.
F MAIN (7) P.C.B.
G MAIN (5) P.C.B.
H OPERATION (4) P.C.B.
I OPERATION (1) P.C.B.
J OPERATION (5) P.C.B.
K OPERATION (2) P.C.B.
L OPERATION (3) P.C.B.
M Power Transformer
HIJKLM
B
A
C
D
E
F
G
1234567890
HTR-5750/RX-V450/HTR-5740/DSP-AX450

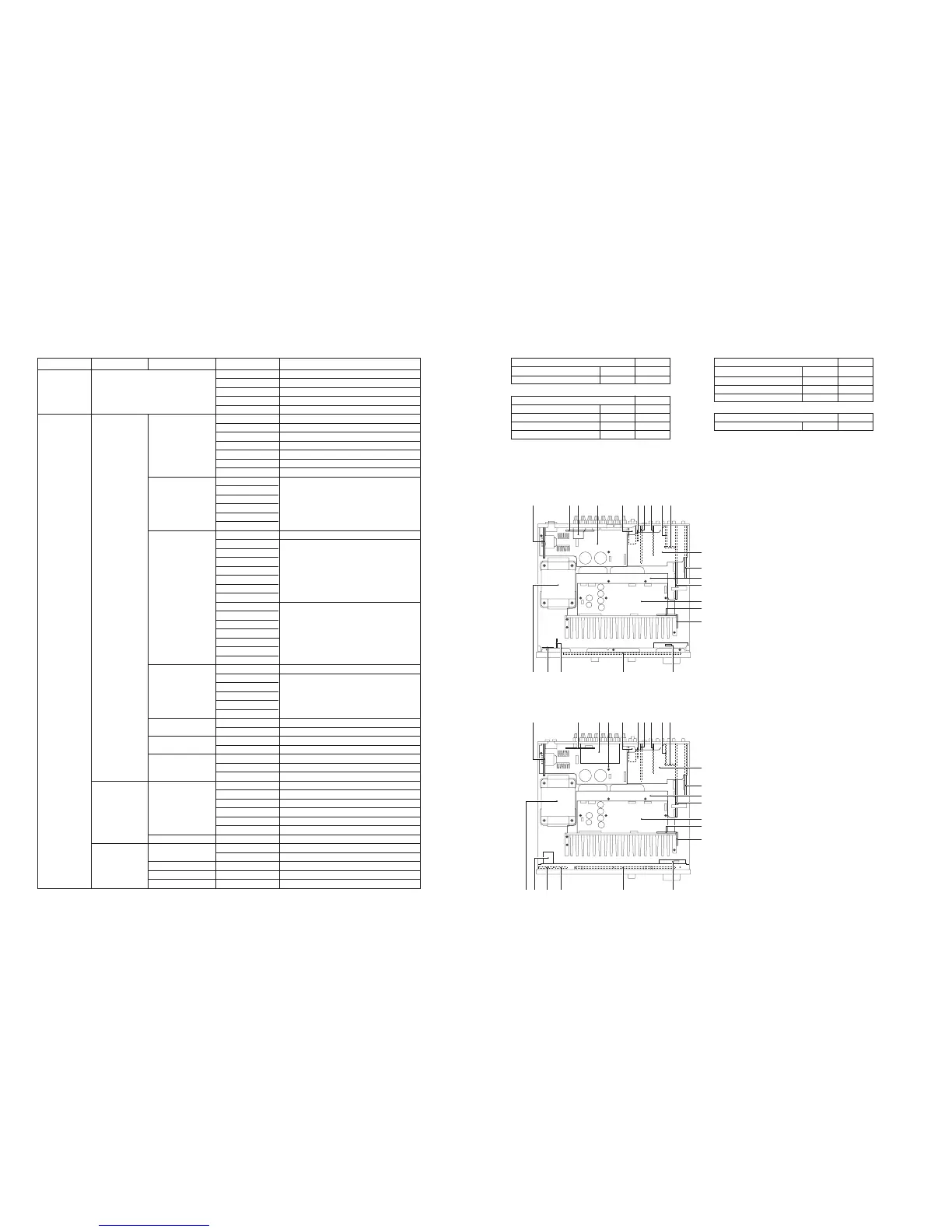

• Set Menu Table / セットメニュー
■ INTERNAL VIEW
6ch Stereo Parameter Unit
CT LEVEL 0/100/1 %
SL LEVEL 0/100/1 %
SR LEVEL 0/100/1 %
SB LEVEL 0/100/1 %
• The variable range of the parameter (Min/Max/Step)/パラメーターの可変範囲（最小/最大/ステップ）
Unit
DSP LEVEL -6/+3/1 dB
DELAY 1/99/1 ms
Pro Logic IIx Music Parameter Unit
PLII/PLIIx PLII/PLIIx
PANORAMA OFF/ON
DIMENSIONS -3/+3/1
CT WIDTH 0/7/1
DTS Neo:6 Music Parameter Unit
C. IMAGE 0/0.5/0.1
