RX-V550/HTR-5750
RX-V450/HTR-5740/DSP-AX450
43
RX-V550/HTR-5750
RX-V450/HTR-5740/DSP-AX450

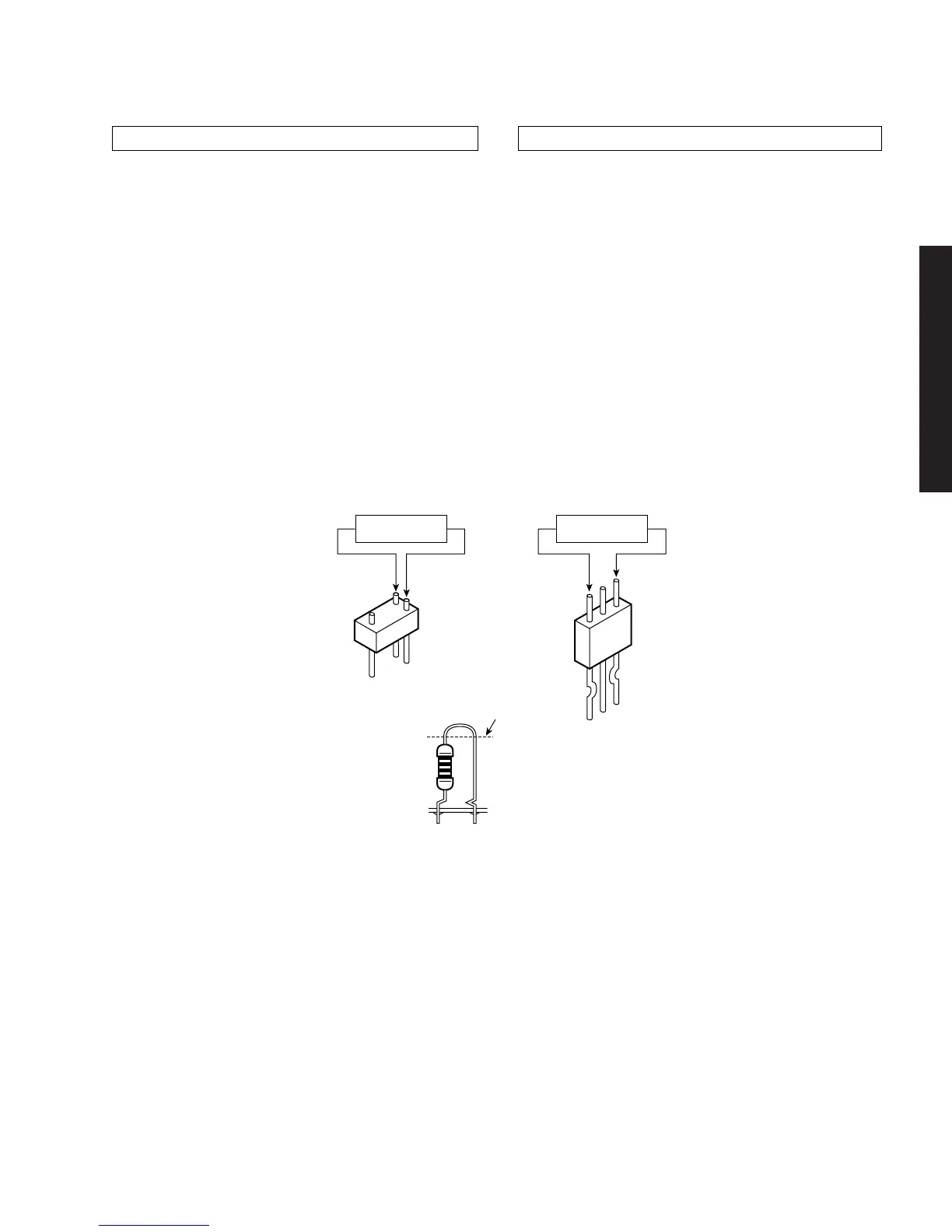

AMP ADJUSTMENT/アンプ部調整
0.1mV ~ 10.0mV
(DC)
0.1mV ~ 10.0mV
(DC)
R45 (FRONT Lch)
R46 (FRONT Rch)
R50 (CENTER)
R38 (FRONT Lch)
R39 (FRONT Rch)
R37 (CENTER)
R34 (SURROUND Lch)
R35 (SURROUND Rch)
R36 (SURROUND BACK)
R47 (SURROUND Lch)
R48 (SURROUND Rch)
R49 (SURROUND BACK)
Cut off
カット
Confirmation of Idling Current of MAIN (1) P. C. B.
Right after power is turned on, confirm that each
measured voltage across the terminals of R45 (Front
Lch), R46 (Front Rch), R50 (Center), R47 (Surround
Lch), R48 (Surround Rch), R49 (Surround Back) is
between 0.1mV and 10.0mV.
If it exceeds 10.0mV, open (cutoff) R38 (Front Lch),
R39 (Front Rch), R37 (Center), R34 (Surround Lch),
R35 (Surround Rch), R36 (Surround Back) and
reconfirm the voltage.
Attention
If the measured voltage exceeds 10.0mV after an
amplifier repair, first check for a defective component
before cutting the bias resistor.
Confirm that the voltage is 0.2mV ~ 15.0mV after 60
minutes.
メイン(1)基板のアイドリング電流の確認
電源投入直後、R45(FRONTLch)、R46(FRONTRch)
R50CENTER)R47SURROUND Lch)R48
SURROUNDRch)、R49(SURROUNDBACK)の端子間
電圧を測定し、0.1mVから10.0mVの間であることを確認し
てください。
電圧が10mVを超えている場合は、R38(FRONTLch)
R39FRONT Rch)R37CENTER)R34
(SURROUNDLch)R35(SURROUNDRch)、R36
(SURROUNDBACK)をカットし、電圧を再確認してくださ
い。
注意
パワーアンプ修理後に10.0mVを超えている場合は、抵抗を
カットする前に故障箇所を調べてください。
60分後、電圧が0.2mV〜15.0mVであることを確認してく
ださい。
