RX-V557/HTR-5850/DSP-AX557
RX-V457/HTR-5840/DSP-AX457
61
OPERATION (3) P.C.B. (Side B)
Lead Free Solder Used
OPERATION (2) P.C.B. (Side A)
STANDBY
/ON
OPERATION (1)
(CB803)
Power Transformer
F1 F2
F1 F2
PSW MG-

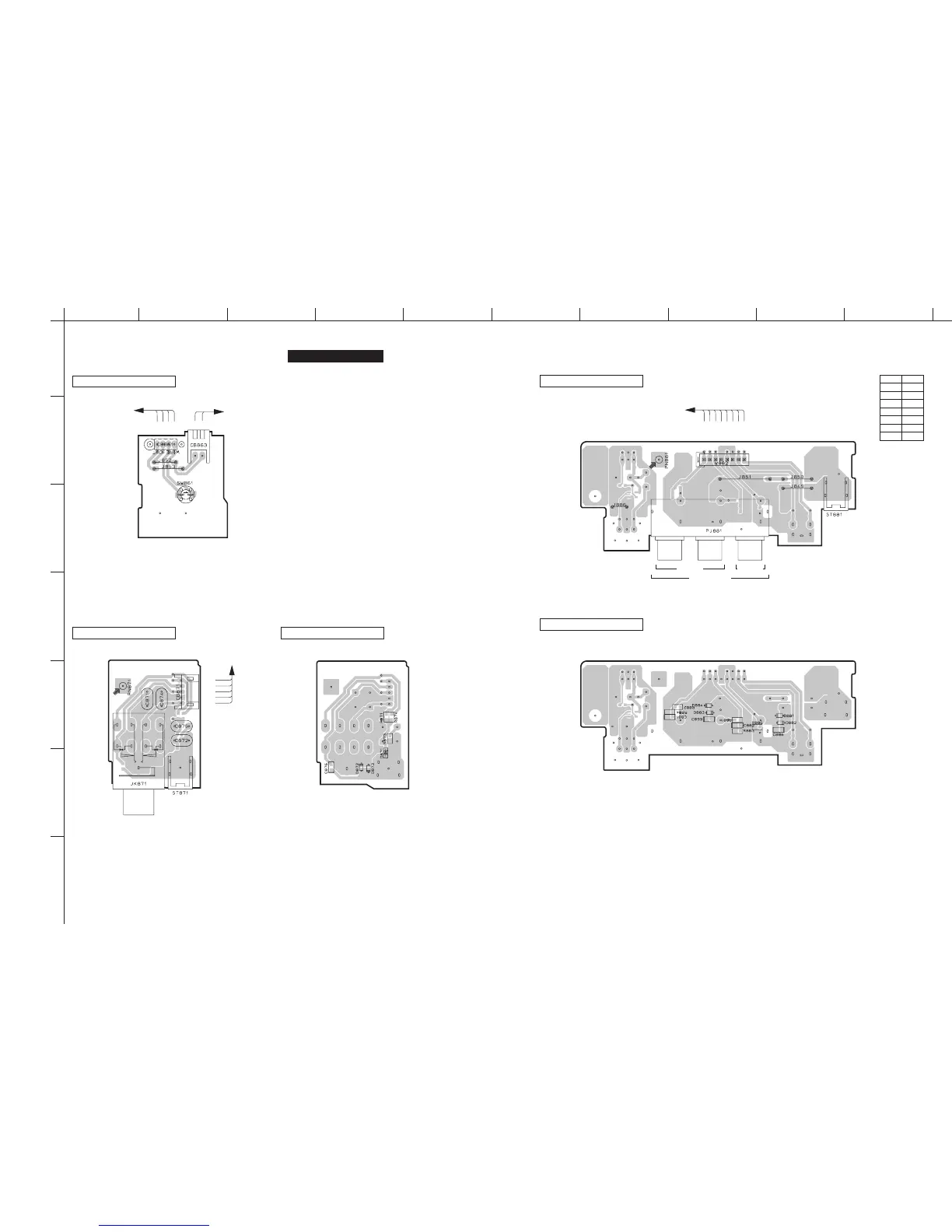

■ PRINTED CIRCUIT BOARD (Foil side) RX-V557/DSP-AX557
OPERATION (3) P.C.B. (Side A)
L
R
/HP
MG
HPL
HPL
HPR
OPERATION (1)
(W801)
PHONES
SILENT CINEMA
FUNCTION
(CB306)
AXR E AXL VE AUX-V VE AUX-Y AUX-C
AUDIO
VIDEO AUX
LR
VIDEO
OPERATION (5) P.C.B. (Side A)
OPERATION (5) P.C.B. (Side B) Lead Free Solder Used
Ref. No. Location
D871 D6
D872 D6
D873 D6
D881 I5
D882 I5
D883 H5
D884 H5
• Semiconductor Location
