RX-V557/HTR-5850/DSP-AX557
RX-V457/HTR-5840/DSP-AX457
73

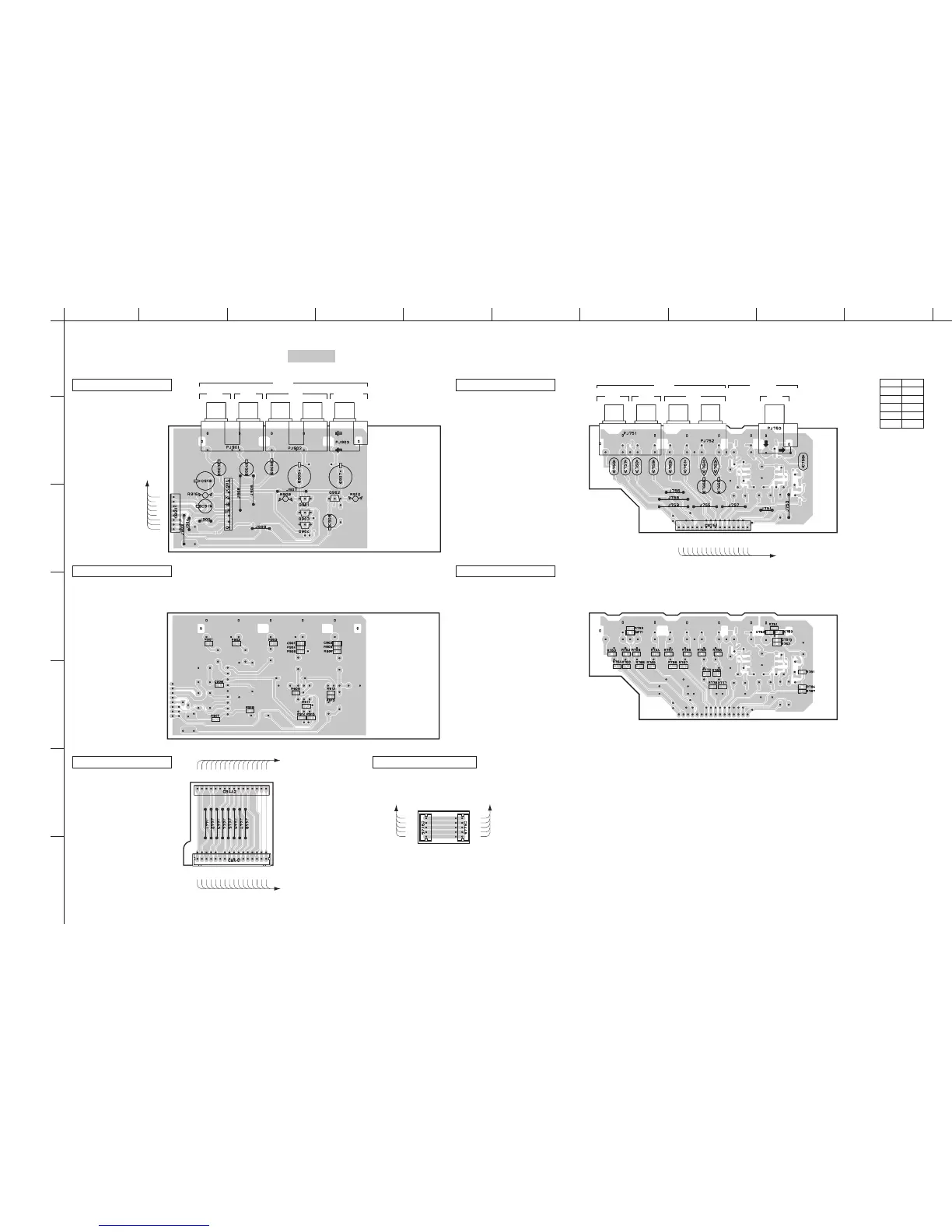

■ PRINTED CIRCUIT BOARD (Foil side) HTR-5850
SUBTRANS (6) P.C.B.
(Side A)
1
9
SUBTRANS (2)
(CB461)
VE
AUX-V
+12V
VSEL
MON
VIA
VIB
/VR
IN OUT
VCR
MONITOR OUT
VIDEO
DVD
DTV/
CBL
SUBTRANS (6) P.C.B. (Side B) Lead Free Solder Used
SUBTRANS (9)
(CB442)
DVR
DLV
E
DTR
DTL
E
VIR
VIL
VDR
CDL
Z2R
Z2L
SWE
SW
MTSW
MTZ2
IN OUT
VCR
AUDIO OUTPUT
DVD
DTV/
CBL
SUB
WOOFER
SUBTRANS (7) P.C.B. ( Side A )
SUBTRANS (7) P.C.B. (Side B) Lead Free Solder Used
SUBTRANS (7)
(CB751)
FUNCTION
(CB301)
DVR DVL E DTR DTL E VIR VIL VDR VDL Z2R Z2L SWE SW MTSW MTZ2
DVR
DVL
E
DTR
DTL
E
VIR
VIL
VDR
VDL
Z2R
Z2L
SWE
SW
MTSW
MTZ2
SUBTRANS (9) P.C.B.
(Side A)
CONVERSION
(CB705)
SUBTRANS (3)
(CB602)
Y
C
CIN
VIN
VE
Y
C
CIN
VIN
VG
SUBTRANS (10) P.C.B. (Side A)
Ref. No. Location
IC901 B3
Q901 C3
Q902 D3
Q903 C3
Q904 C3
• Semiconductor Location
