Yamaha DSP-AX540 - Internal View

RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440
17
RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440
F E
I
GHK JL
C
B
A
0
D
986547321
1 POWER (2) P.C.B.
2 POWER (3) P.C.B.
(R, K models only)
3 MAIN (2) P.C.B.
4 VIDEO P.C.B.
(J model only)
5 Tuner
6 FUNCTION (7) P.C.B.
(U, C, A, B, G, L, R, T, K models only)
7 FUNCTION (5) P.C.B.
(RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540 only)
8 FUNCTION (6) P.C.B.
9 FUNCTION (2) P.C.B.
0 FUNCTION (3) P.C.B.
A FUNCTION (4) P.C.B.
B DSP P.C.B.
C FUNCTION (1) P.C.B.
D POWER (1) P.C.B.
E MAIN (1) P.C.B.
F MAIN (3) P.C.B.
G OPERATION (3) P.C.B.
H OPERATION (4) P.C.B.
I OPERATION (1) P.C.B.
J OPERATION (6) P.C.B.
K OPERATION (2) P.C.B.
L OPERATION (5) P.C.B.

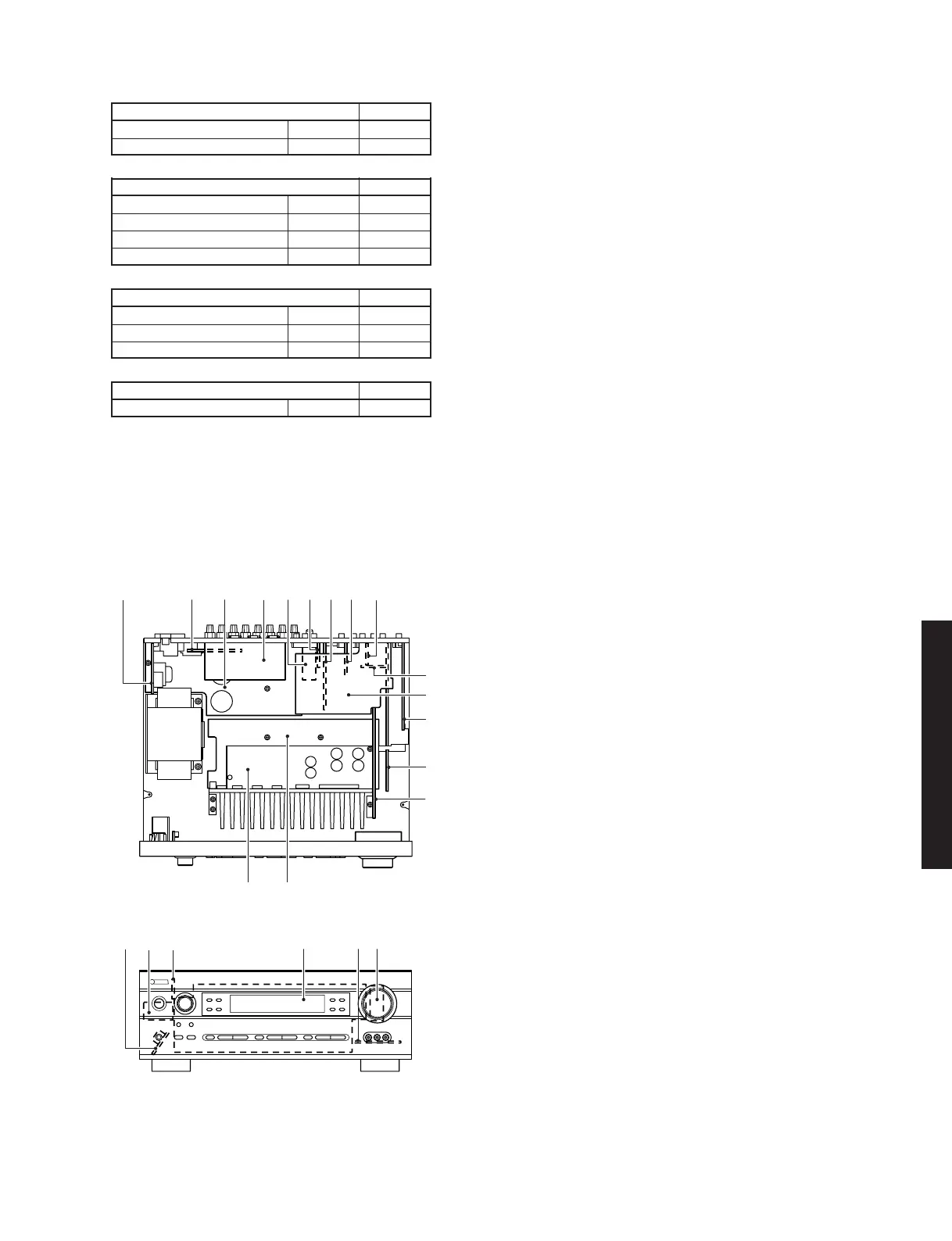

■ INTERNAL VIEW
6ch Stereo Parameter Unit
CT LEVEL 0/100/1 %
RL LEVEL 0/100/1 %
RR LEVEL 0/100/1 %
RC LEVEL 0/100/1 %
• The variable range of the parameter (Min/Max/Step)/パラメーターの可変範囲（最小/最大/ステップ）
Unit
DSP LEVEL -6/+3/1 dB
DELAY 1/99/1 ms
Pro Logic II Music Parameter Unit
PANORAMA OFF/ON
DIMENSIONS -3/+3/1
CT WIDTH 0/7/1
DTS Neo:6 Music Parameter Unit
C. IMAGE 0/0.5/0.1
