RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440
19
RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440
5 6

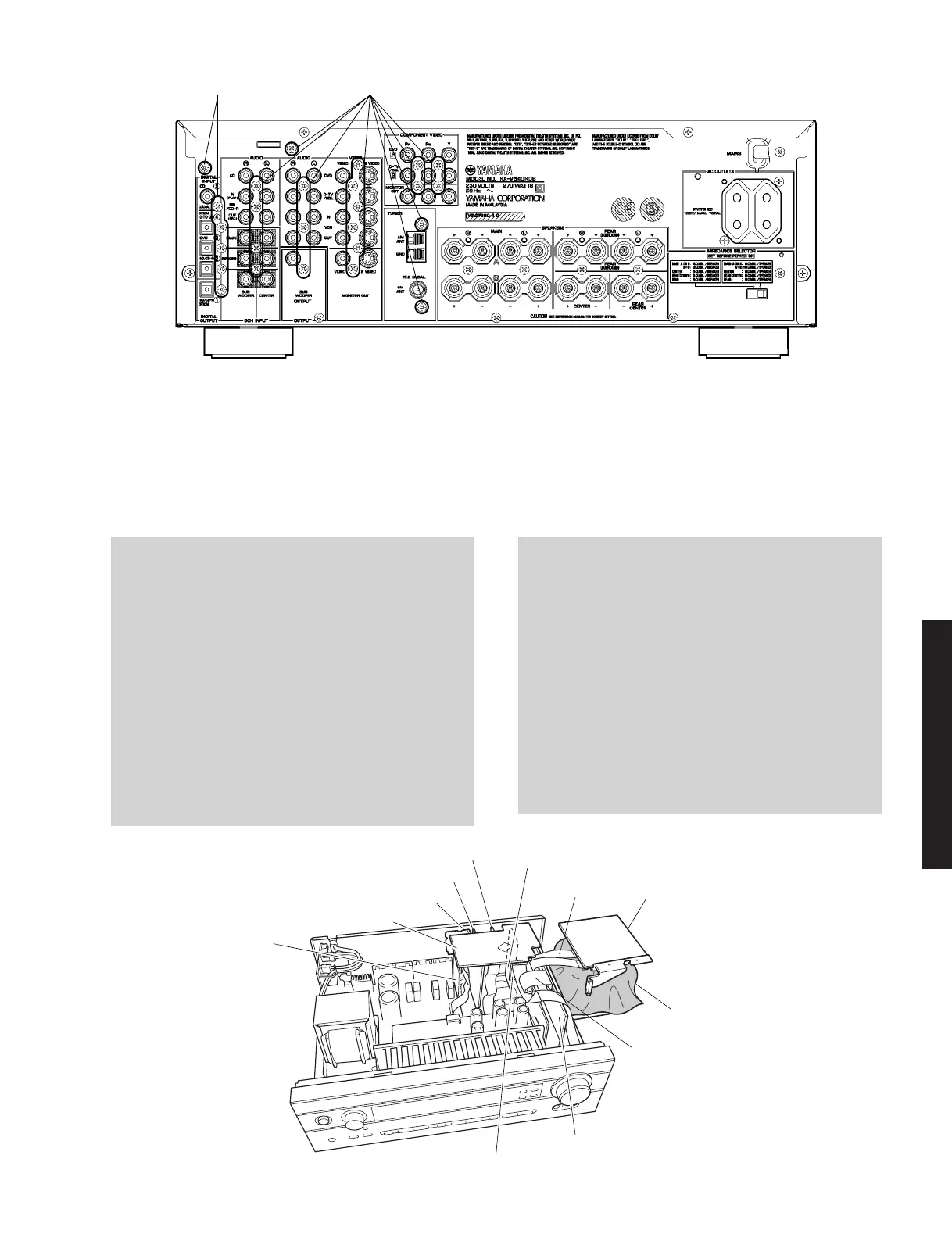

Fig. 3
4. FUNCTION（1）〜（6）、TUNERの外し方
6
4. Removal of FUNCTION (1) ~ (7) P.C.B.s and Tuner
a. Remove CB104, CB304 and CB307. (Fig. 2)
b. Remove 20 screws (6). (Fig. 3)
c. Remove FUNCTION (1) ~ (7) P.C.B.s. and the Tuner.
(Fig. 4)
P.C.B.チェックをする場合には
POWER (1) P.C.B. CB601 – FUNCTION (1) P.C.B. CB307:
MF117200 (17P 200mm)
DSP P.C.B. CB602 – FUNCTION (4) P.C.B. CB606:
MF117200 (17P 200mm)
When checking the P.C.B.:
• Reconnect all cables (connectors) that have been
disconnected.
Be sure to use the extension cable for servicing for
the following 2 sections.
POWER (1) P.C.B. CB601 – FUNCTION (1) P.C.B. CB307:
MF117200 (17P 200mm)
DSP P.C.B. CB602 – FUNCTION (4) P.C.B. CB606:
MF117200 (17P 200mm)
• When connecting the flat cable, use care for the
polarity.
• The P.C.B. removed from the rear panel does not
work because its grounding is loose. Be sure to
connect the ground of each P.C.B. to the chassis or
GND with a jumper wire or the like.
FUNCTION (3) P.C.B.
P.C.B.
FUNCTION (7) P.C.B. (except J model)
FUNCTION (5) P.C.B.
FUNCTION (4) P.C.B.
FUNCTION (6) P.C.B.
FUNCTION (1) P.C.B.
FUNCTION (2) P.C.B.
Tuner
MF117200
Fig. 4
To Next Page
