RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
RX-V440/RX-V440RDS/HTR-5640/HTR-5640RDS/DSP-AX440
59
FUNCTION (4) P. C. B. (Surface Mount Device)
FUNCTION (6) P. C. B. (Surface Mount Device) FUNCTION (7) P. C. B. (Surface Mount Device)
FUNCTION (5) P. C. B. (Surface Mount Device)
100 1
51 50
31
30
80
81
18
4
5
1
8
4
5
1
8
169
18
169
17
148

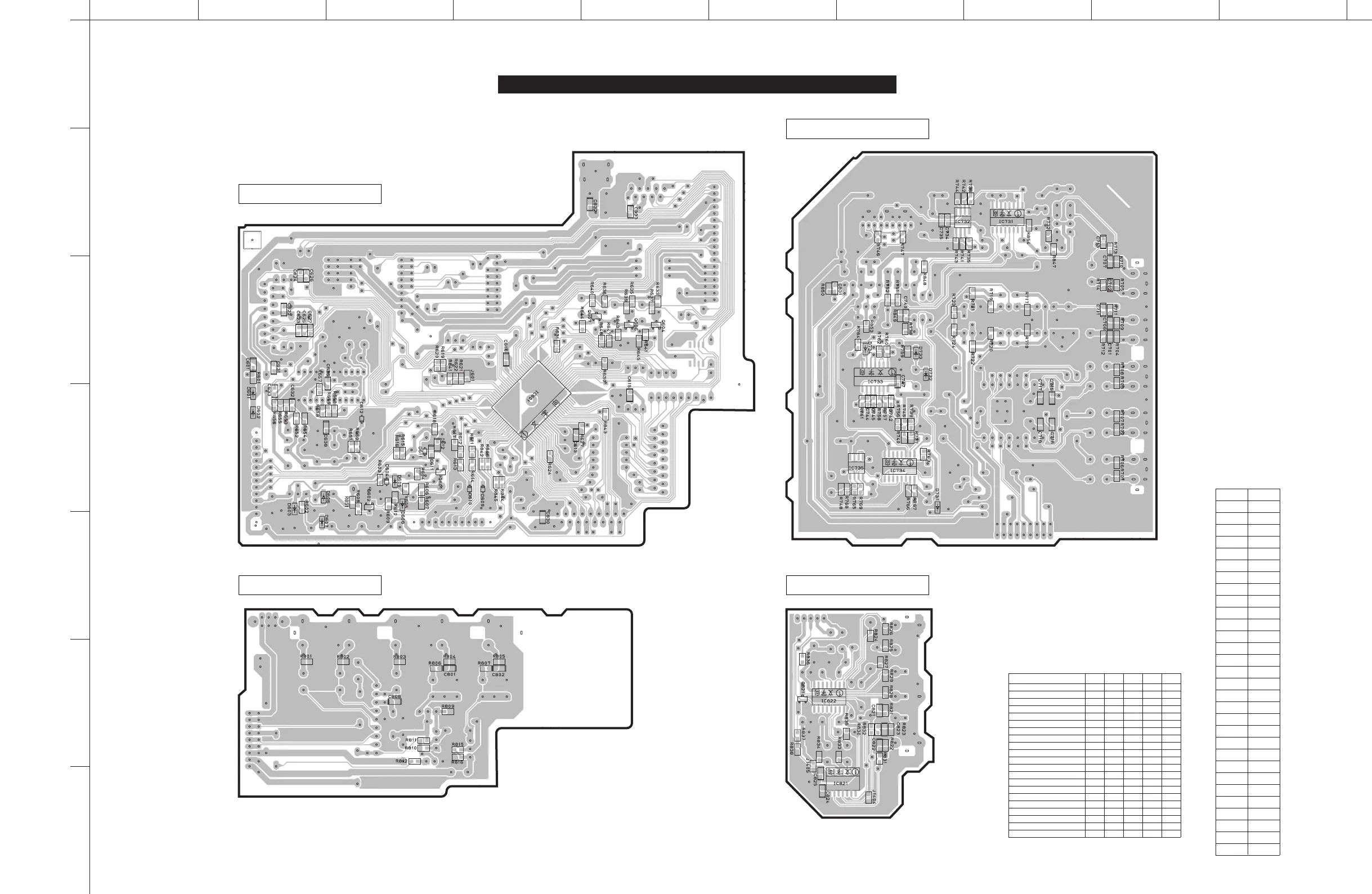

■ PRINTEDCIRCUITBOARD(Foilside)
RX-V540/RX-V540RDS/HTR-5650/HTR-5650RDS/DSP-AX540
Ref. No. Location
D601 B4
D602 B4
D603 B4
D604 C4
D605 C4
D606 B4
D607 B5
D608 C4
D609 D4
D610 D4
D611 C4
D612 C4
D731 G4
D732 G3
D733 G3
D734 G3
IC601 D4
IC731 H2
IC732 G2
IC733 G3
IC734 G4
IC735 G4
IC821 G6
IC822 G6
Q601 C4
Q602 C5
Q604 E3
Q606 E3
Q607 E3
Q821 F6
• Semiconductor Location
Circuit No. J U, C R, T, K A, L B, G
C631~640 X X X X O
CB607 X O O O O
IC603 X X X X O
IC731, 732 O O X O O
J601 O O O O X
J731, 732 X X O X X
J802 O O X O O
L601 X X X X O
Q609 X X X X O
Q733 X X O X X
R619 O X X O O
R620 X O O X X
R621 O O X X X
R622 X X O O O
R652~660, 841 X X X X O
R735, 736, 741~744, 746, 747 O O X O O
R853 X X O X X
SW801 X X O X X
T731 O O X O O
XL602 X X X X O
W607 O X X X X
X: NOT USED
O: USED / APPLICABLE
