Yamaha DSP-AX757SE Service Manual

36
RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860
RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860
(Shaded items not used in this example)

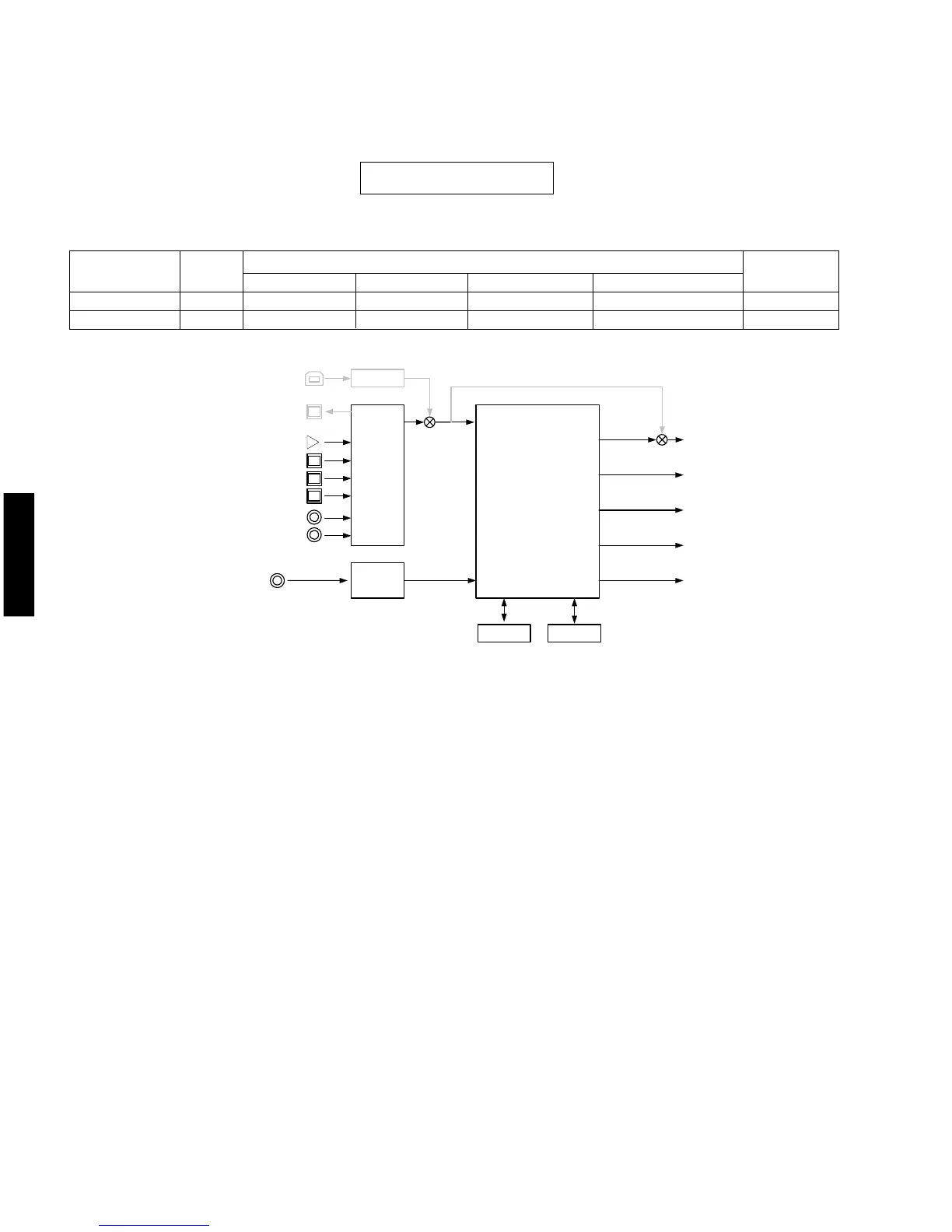

3.PROLOGIC
・入力 2ch 信号に DolbyPROLOGIC 処理を行います。
3. PRO LOGIC
• Dolby PRO LOGIC is applied to input stereo source.
3.PRO LOGIC
FRONT L/R
+13.0 dBm
- ∞
CENTER
- ∞
+13.0 dBm
SURROUND L/R
- ∞
- ∞
SUBWOOFER
(50 Hz)
- ∞
- ∞
SPEAKERS OUT (1KHz)
Input level
Each ch, -20 dBm
Both ch, -20 dBm
Volume
+6.5 dB
+6.5 dB
SURROUND BACK L/R
- ∞
- ∞
INPUT: DVD ANALOG
DIR
LC89057
DSP
( DECODE)
(POST PROCESSING)
TI DA60Y
A/D
AK4628
DRAM
FL / FR
PL / PR
C / SW
SL / SR
SBL / SBR
ROM
XMDT
(U, C models)
