RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860
RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860
■

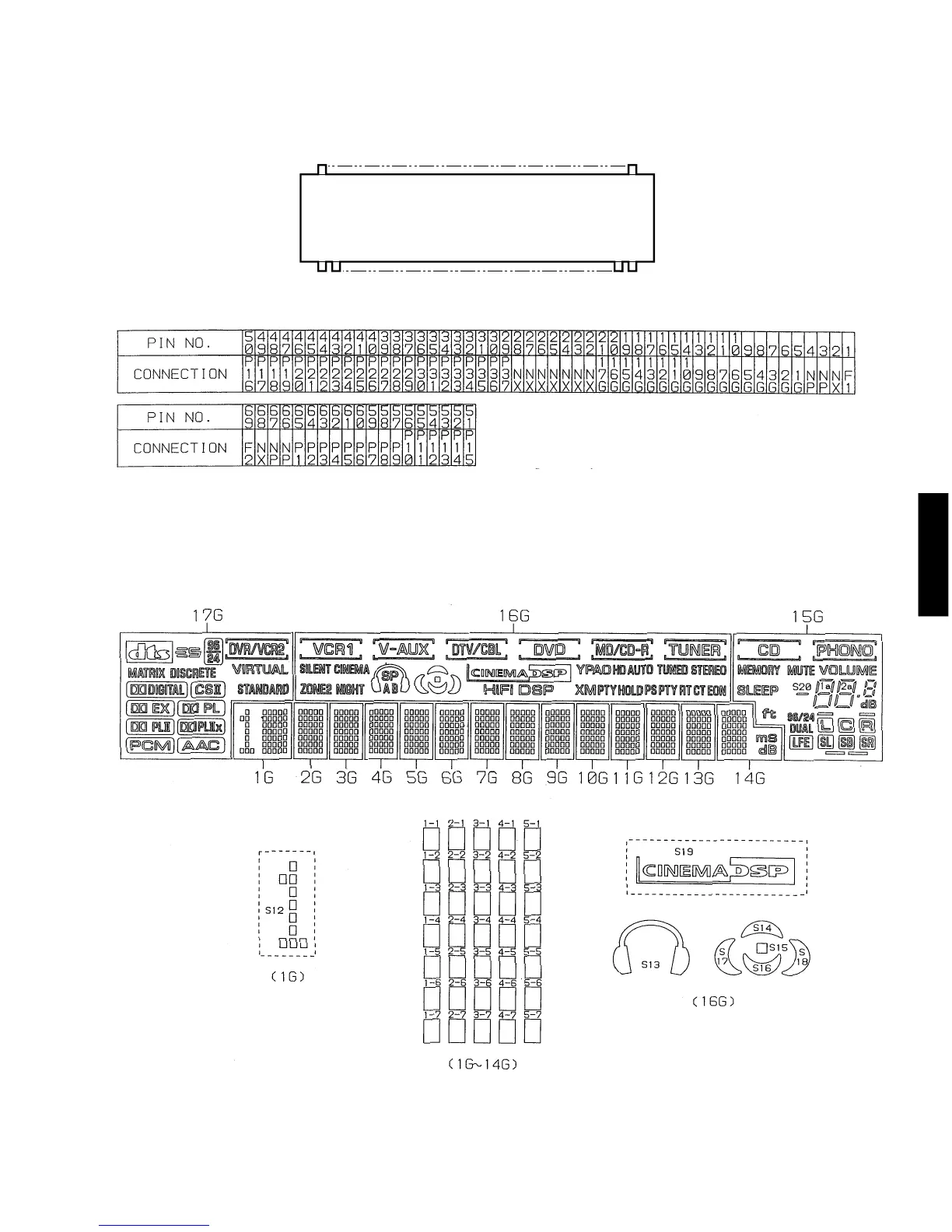

DISPLA
Y DA
T
A
V801 : 17-BT-24GNK (WE289300)
●
GRID ASSIGNMENT
●
PIN CONNECTION
P
A
TTERN AREA
q
^9
Note
1)
F1, F2
.........
Filament
2)
NP
..............
No Pin
3)
NX
..............
No Extend Pin
4)
P1~P37
.......
Datum Line
5)
1G~17G
......
Grid
24
26
Table of Contents
Contents
1
Important Notice
1
Self Diagnosis Function
2
Starting DIAG
4
Starting DIAG in the Protection Cancel Mode
4
Canceling DIAG
4
Display Provided When DIAG Started
5
Display During Menu Operation
6
History of Protection Function
6
Operation Procedure of DIAG MENU and SUB-MENU
7
Functions in DIAG Mode
7
Initial Settings Used to Start DIAG
7
Details of DIAG Menu
8
Bypass
8
Analog Bypass
8
Dsp Bypass
8
Ram through
9
Pro Logic
10
Speakers Set
11
Xch Input
12
MIC Check
12
Vfd Check
13
Manual Test
14
Factory Preset
15
Preset Stations
15
Ad Data Check
16
V Conv Status
18
XM Status
18
If Status
18
Dsp Bus Check
20
Swfr Cut off
21
Protection Setting
21
Protection History
21
Soft Switch
21
Software Version
23
Amp Adjustment
24
Confirmation of Idling Current
24
Display Data
25
Pin Connection
25
Grid Assignment
25
Segment Designation
26
Anode Connection
26
IC Data
27
Digital Audio Interface Transceiver
28
Decoder
29
16 Bit Μ-COM (CPU)
33
Serial In/Parallel out Driver
35
Block Diagram
36
Schematic Diagram
38
Power Supply
