Details of DIAG menu

ダイアグメニュー詳細

1.BYPASS

サブメニューにより ANALOGBYPASS/DSPBYPASS が選

択可能です。

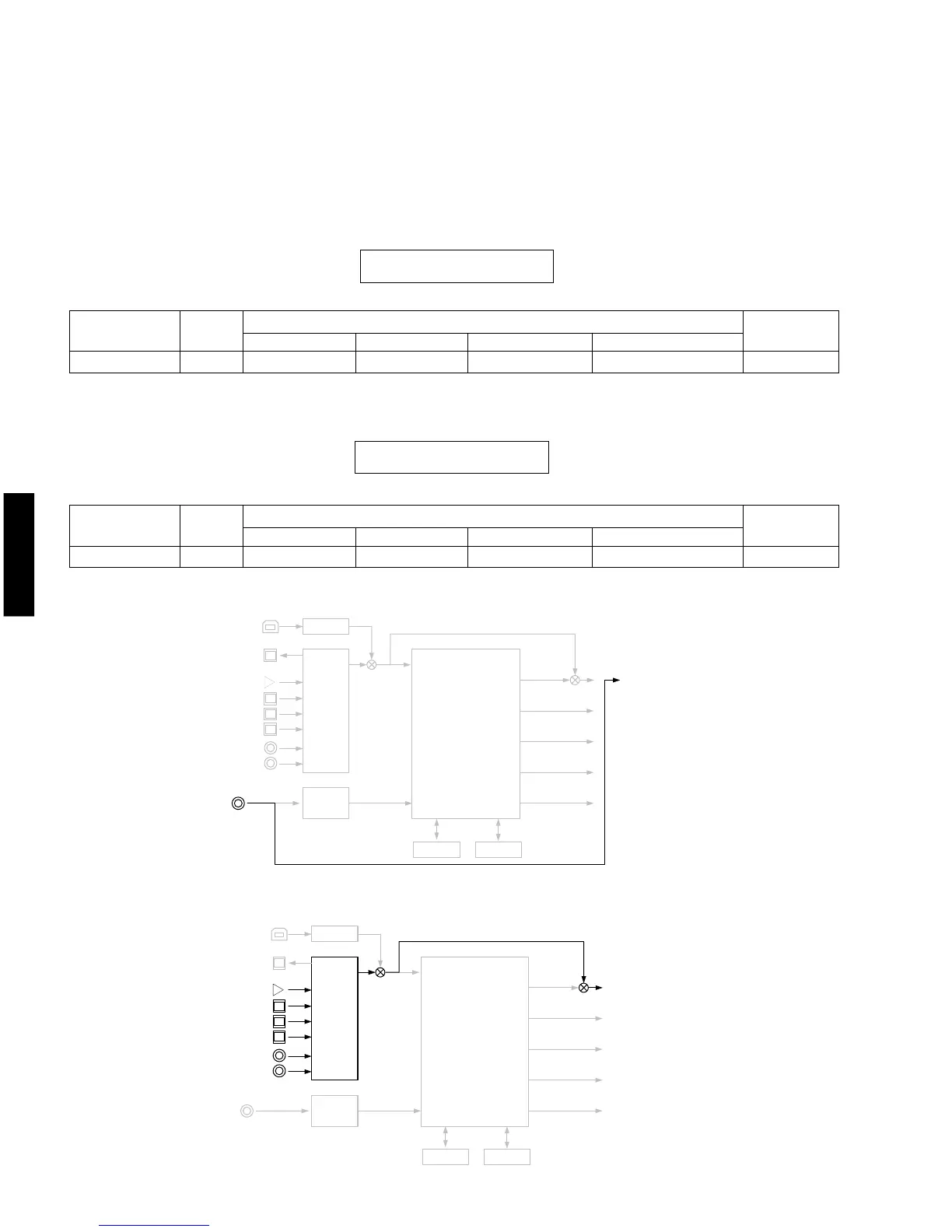

1. BYPASS

Using the sub-menu, it is possible to select analog bypass

output or DSP bypass output.

ANALOGBYPASSANALOG BYPASS

DSP BYPASS DSPBYPASS

FRONT L/R

+13.0 dBm

CENTER

- ∞

SURROUND L/R

- ∞

SUBWOOFER

(50 Hz)

- ∞

SPEAKERS OUT (1KHz)

Input level

Both ch, -20 dBm

Volume

+6.5 dB

SURROUND BACK L/R

- ∞

INPUT: DVD ANALOG

FRONT L/R

+13.0 dBm

CENTER

- ∞

SURROUND L/R

- ∞

SUBWOOFER

(50 Hz)

- ∞

SPEAKERS OUT (1KHz)

Input level

Both ch, -20 dBm

Volume

+6.5 dB

SURROUND BACK L/R

- ∞

INPUT: DVD ANALOG

1.ANALOG BYPAS

1.DSP BYPASS

ANALOG BYPASS

DSP BYPASS

(Shaded items not used in this example)

DIR

LC89057

DSP

( DECODE)

(POST PROCESSING)

TI DA60Y

A/ D

AK4628

DRAM

FL / FR

PL / PR

C / SW

SL / SR

SBL / S BR

ROM

XMDT

(U, C models)

DIR
