Yamaha DSP-AX757SE Service Manual

35
RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860
RX-V757/DSP-AX757/DSP-AX757SE
RX-V657/HTR-5860

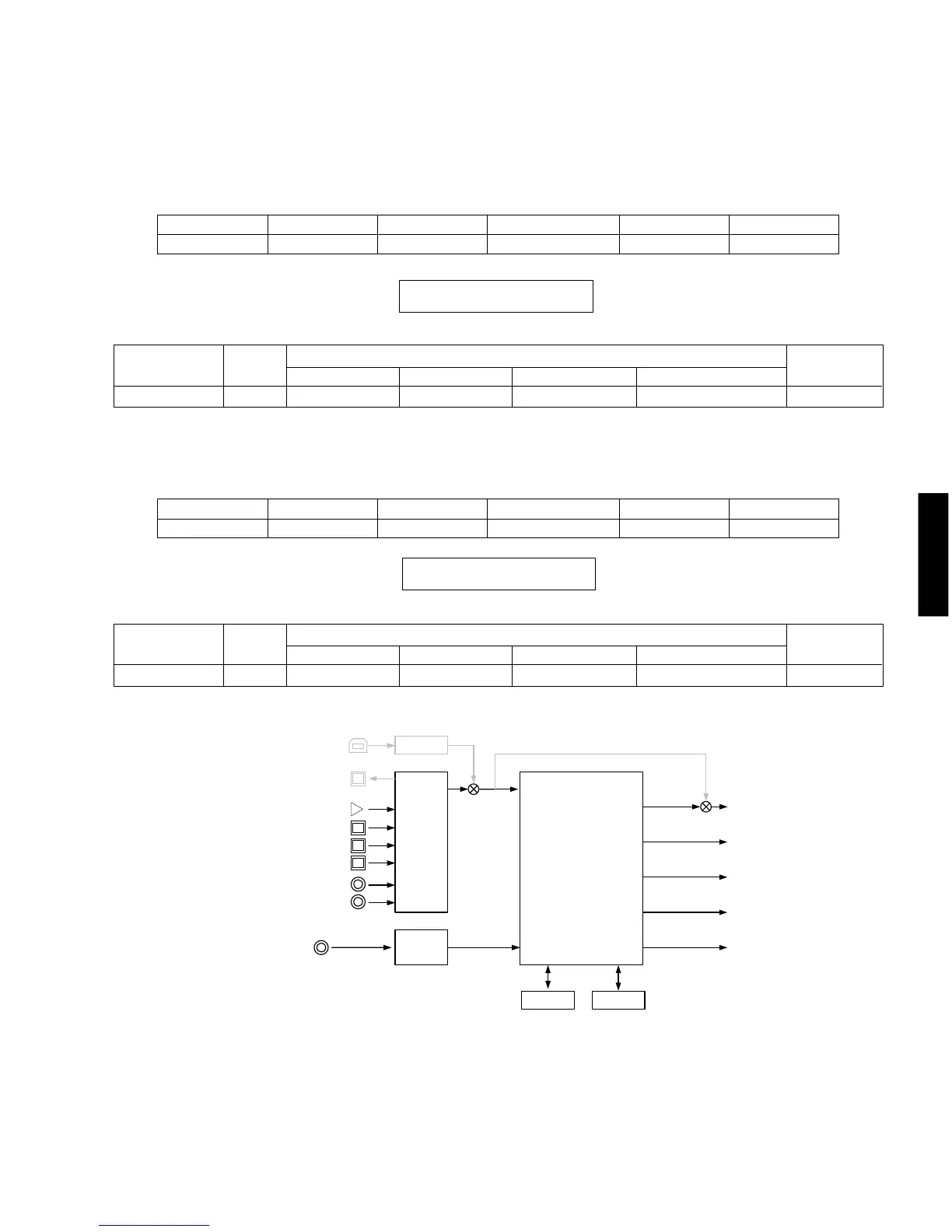

2.RAMTHROUGH
サブメニューにより MARGIN/FullBit が選択可能です。
2. RAM THROUGH
Using the sub-menu, it is possible to select margin output or
full-bit output.
RAMMARGIN
以下のヘッドマージンを取ります。
RAM MARGIN
Following head margin is reserved.
RAMFULLBIT
SW 以外のヘッドマージンを取りません。
RAM FULL BIT
No head margin is reserved except SW.
FRONT L/R
+13.0 dBm
CENTER
+13.0 dBm
SURROUND L/R
+13.0 dBm
SUBWOOFER
(50 Hz)
+ 0.5 dBm
SPEAKERS OUT (1KHz)
Input level
Both ch, -20 dBm
Volume
+6.5 dB
SURROUND BACK L/R
+13.0 dBm
INPUT: DVD ANALOG
FRONT L/R
+13.0 dBm
CENTER
+13.0 dBm
SURROUND L/R
+13.0 dBm
SUBWOOFER
(50 Hz)
+ 0.5 dBm
SPEAKERS OUT (1KHz)
Input level
Both ch, -20 dBm
Volume
+6.5 dB
SURROUND BACK L/R
+13.0 dBm
INPUT: DVD ANALOG
2.RAM MARGIN
2.RAM FULL BIT
(Shaded items not used in this example)
FRONT
+15.0 dB
CENTER
+13.5 dB
SURROUND
+9.0 dB
SUBWOOFER
+21 dB
SURROUND BACK
+7.5 dB
PRESENCE
+15.0 dB
FRONT
0 dB
CENTER
0 dB
SURROUND
0 dB
SUBWOOFER
+21 dB
SURROUND BACK
0 dB
PRESENCE
0 dB
DIR
LC89057
DSP
( DECODE)
(POST PROCESSING)
TI DA60Y
A/ D
AK4628
DRAM
FL / FR
PL / PR
C / SW
SL / SR
SBL / S BR
ROM
XMDT
(U, C models)
Front L → Center / Surround L / Surround Back L, R / Presence L
Front R → Surround R / Presence R
Front L + 10 dB → SWFR
When input source is stereo, signal is assigned as below.
2ch 信号入力時、以下のように信号を振り分けて出力します。
