Yamaha DSP-E800 - SPECIFICATIONS; AUDIO SECTION; GENERAL

DSP-E800
DSP-E800
2
■ AUDIO SECTION
Minimum RMS Output Power per Channel
CENTER
20Hz to 20kHz, 0.06% THD, 8Ω 70W
1kHz, 0.09% THD, 8Ω 80W
REAR
20Hz to 20kHz, 0.06% THD, 8Ω 70W+70W
1kHz, 0.09% THD, 8Ω 80W+80W
Dynamic Power per Channel (IHF)
REAR, 8Ω 90W+90W
REAR, 6Ω 110W+110W
REAR, 4Ω 135W+135W
REAR, 2Ω 160W+160W
DIN Standard Output Power per Channel (G model only)
CENTER, 1kHz, 0.7% THD, 4Ω 110W
REAR, 1kHz, 0.7% THD, 4Ω 110W+110W
IEC Power (G model only)
CENTER, 1kHz, 0.04% THD, 8Ω 75W
REAR, 1kHz, 0.04% THD, 8Ω 75W+75W
Damping Factor
CENTER, REAR, 20Hz to 20kHz, 8Ω 100 or more
Input Sensitivity/Impedance
CD, etc. 150mV/47kΩ
6 CH INPUT (Ext. D.)
MAIN 150mV/47kΩ
CENTER, REAR, SUBWOOFER 150mV/40kΩ
Maximum Input Signal
1kHz, 0.5% THD, CD, etc. (EFFECT ON) 2.2V
Output Level/Impedance
REC OUT 150mV/1.2kΩ
PRE OUT MAIN, CENTER, REAR 1V/1.2kΩ
PRE OUT SUBWOOFER (MAIN SP: SMALL) 4V/1.2kΩ
Frequency Response
10Hz to 100kHz, CD, etc. MAIN 0/ - 3dB
Total Harmonic Distortion
DISCRETE inputs to REAR SP OUT
(20Hz to 20kHz, 35W/8Ω) 0.06%
Signal to Noise Ratio (IHF-A-Network)
CD, etc. (EFFECT OFF) (S: 150mV)
MAIN PRE OUT 99dB
Residual Noise (IHF-A-Network)
CENTER, REAR, SP OUT 150µV
Channel Separation (Vol. –30dB)
CD, etc. (EFFECT OFF) (Input 5.1kΩ Shorted)
1kHz/10kHz 60dB/45dB
Filter Characteristics
MAIN, REAR SP SMALL : H.P.F. fc = 90Hz, 12dB/oct.
SUBWOOFER : L.P.F. fc = 90Hz, 18dB/oct.
■ SPECIFICATIONS
■ GENERAL
Power Supply
B, G models AC 230V, 50Hz
Power Consumption
B, G models 180W
Standby Power Consumption (reference data)
B, G models 0.85W
AC Outlets
Switched x 1 100W max.
Dimensions (W x H x D) 435 x 126 x 391mm
(17-1/8” x 4-15/16” x 15-3/8”)
Weight 10.0 kg (22 lbs. 1 oz)
Finish
G model Gold color/Titanium color/Black color
B model Black color
Accessories Remote Control Transmitter x 1
Battery (size "AA", "R06") x 2
●

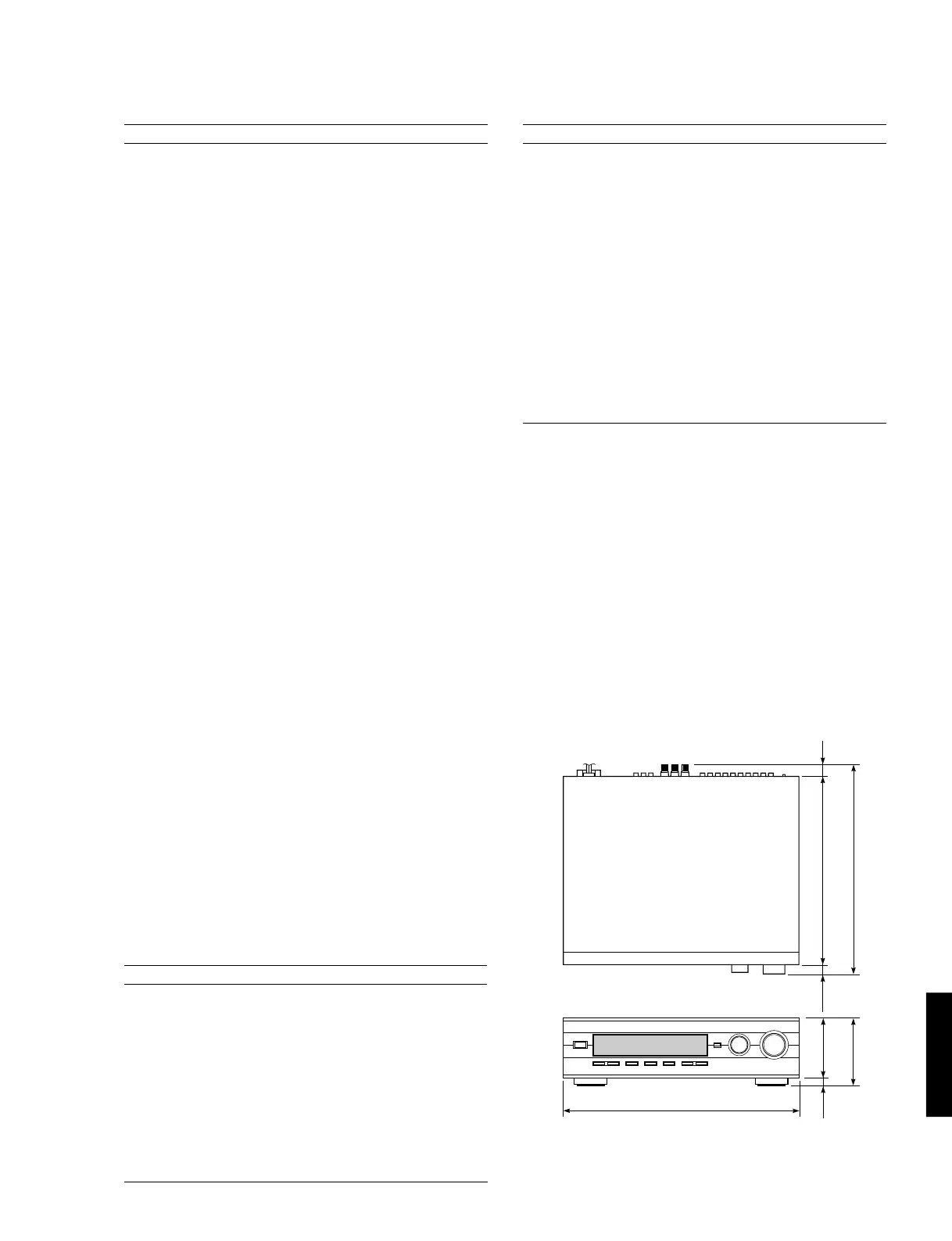

DIMENSIONS
* Specifications subject to change without notice.
B ....... British model
G ....... European model
■ VIDEO SECTION
Video Signal Type
B, G models PAL
Composite Video Signal Level 1Vp-p/75Ω
S-Video Signal Level
Y 1Vp-p/75Ω
C 0.286Vp-p/75Ω
Video Maximum Input Level 1.5Vp-p
Video Signal to Noise Ratio 50dB
Monitor Output Frequency Response
Composite Video Signal 5Hz~10MHz, –3dB
S-Video Signal 5Hz~10MHz, –3dB
Units : mm (inch)
Manufactured under license from Dolby Laboratories.
"Dolby", "AC-3", "Pro Logic", and the double-D symbol V
are trademarks of Dolby Laboratories. © 1992-1997 Dolby
Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems,
Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. "DTS", "DTS Digital Surround", are
trademarks of Digital Theater Systems, Inc. copyright
1996 Digital Theater Systems, inc. All rights reserved.
349.5 (13–3/4")
391 (15–3/8")
20
(13/16")
21.5
(7/8")
435 (17–1/8")
16
(5/8")
110
(4–5/16")
126
(4–15/16")
