PM5DV2/DSP5D Editor Owner’s Manual
32

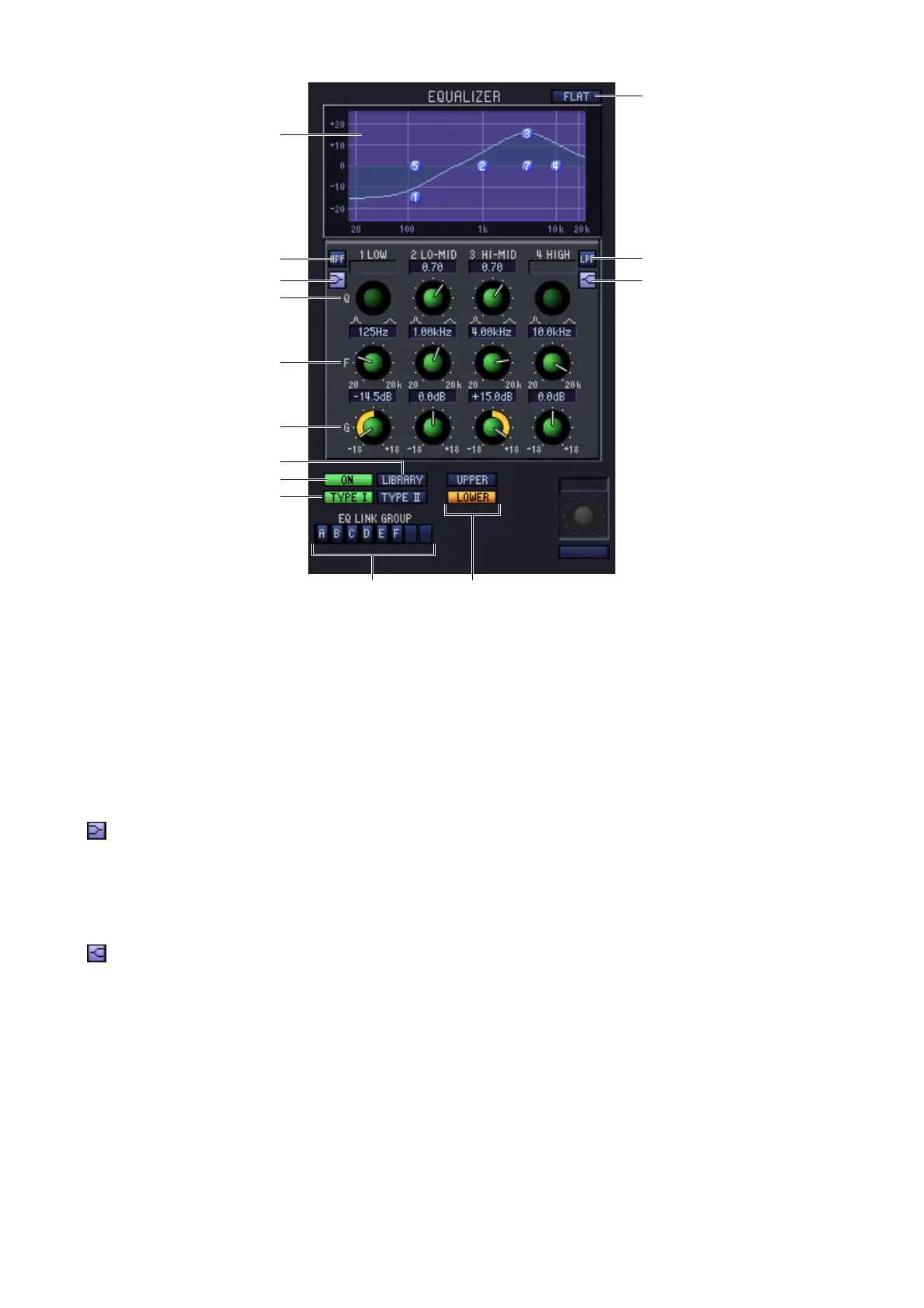

❏ EQUALIZER
A EQ graph
Indicates the approximate response for the EQ of the currently selected channel.
B FLAT
If you click this button, the gain of all bands will be reset to 0.0 dB.
C Q
D F (Frequency)
E GAIN
These knobs adjust the Q, center frequency, and boost/cut amount for each band.
F (LOW shelving)
If this button is on, the LOW EQ will be switched to a shelving type (the Q knob of the LOW EQ will disappear).
G HPF (High Pass Filter)
If this button is on, the LOW EQ will function as a high pass filter EQ. The Q knob of the LOW EQ will disappear,
and the GAIN knob will act as the high pass filter on/off switch.
H (HIGH shelving)
If this button is on, the HIGH EQ will be switched to a shelving type (the Q knob of the HIGH EQ will disap-
pear).
I LPF (Low Pass Filter)
If this button is on, the HIGH EQ will function as a low pass filter. The Q knob of the HIGH EQ will disappear,
and the GAIN knob will act as the low pass filter on/off switch.
J ON (On/off)
Switches the EQ on/off.
K LIBRARY
Accesses the OUTPUT EQ page of the LIBRARY window.
K
6
7
3
4
5
J
L
1
2
9
8
M
N
