PM5DV2/DSP5D Editor Owner’s Manual
31

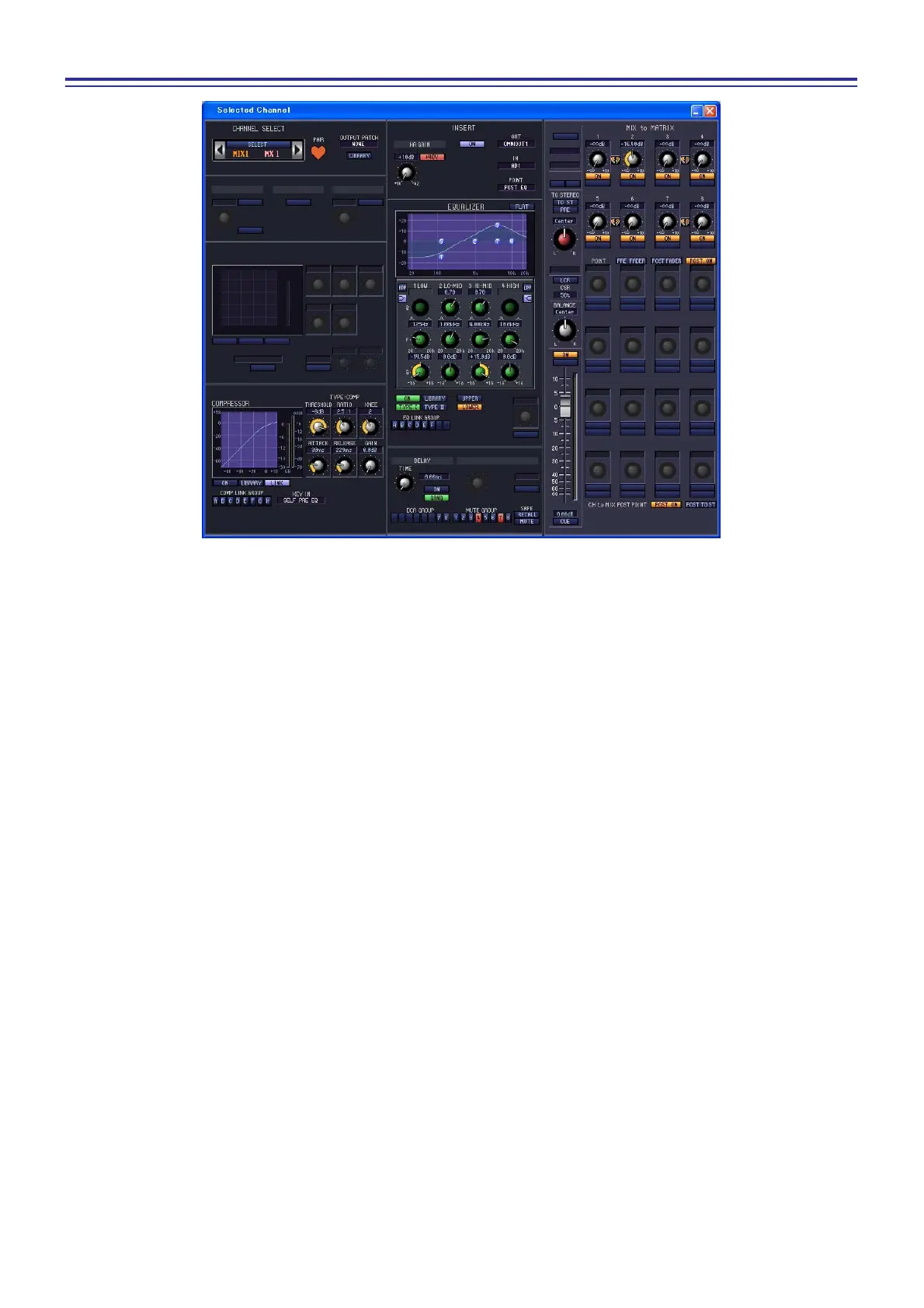

If a MIX channel is selected
❏ CHANNEL SELECT (Channel selection)
Except for the fact that the operations apply to a MIX channel, and that INPUT PATCH is replaced by OUTPUT
PATCH, this is the same as for the channel select area of input channels (➥ p.22).
❏ COMPRESSOR
Except for the fact that the COMP LINK GROUP is A–H, and that the types of signal that can be selected for key-
in are different, this is the same as for the compressor of an input channel (➥ p.25).
❏ INSERT
Except for the fact that the insert points that can be selected are different, this is the same as for the insert settings
of an input channel (➥ p.26).
