PM5DV2/DSP5D Editor Owner’s Manual
71
D DCA MUTE TARGET
When the send position to the MIX bus is PRE FADER, this specifies whether the DCA [MUTE] keys will mute
the send to the MIX bus. If you specify “POST ONLY,” the PRE FADER signal will not be muted. If you specify
“PRE & POST,” the signal will be muted regardless of the send position.
E WARNING DISPLAY
This selects whether a warning will be displayed when the following problems occur.
• TIME CODE DROP
This function is found only in PM5D Editor. When a drop occurs in the time code (LTC, MTC) being received
from an external source.
• DIGITAL I/O ERROR
When a DIO error is detected.
• MIDI I/O ERROR
This function is found only in PM5D Editor. When a MIDI error is detected.
F SOFTWARE VERSION
This indicates the version of the PM5D/DSP5D firmware.
If offline, this is shown as -------.

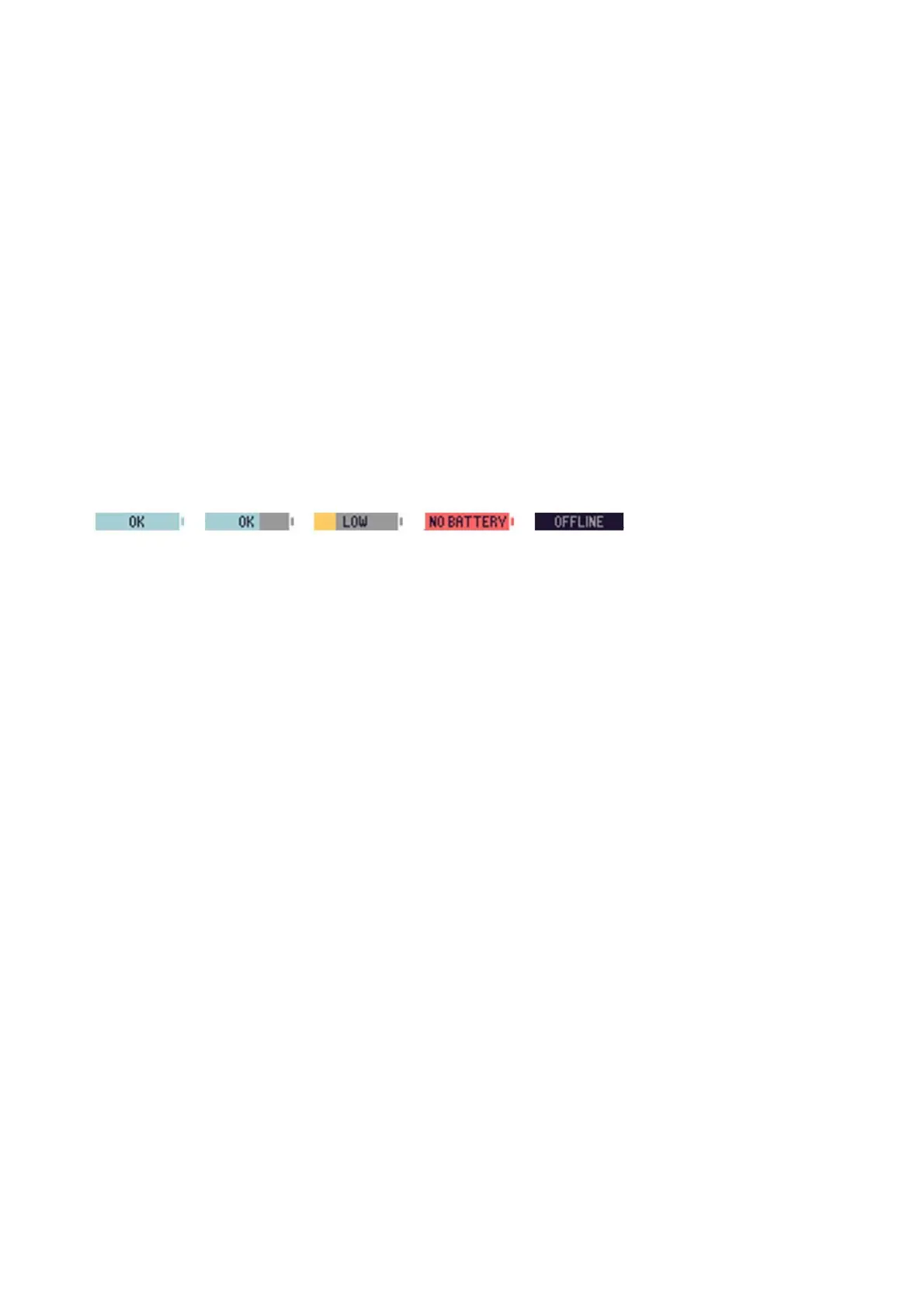

G BATTERY
This shows the approximate state of the internal battery voltage (remaining battery amount).
The voltage status is indicated as follows.
