PM5DV2/DSP5D Editor Owner’s Manual
43

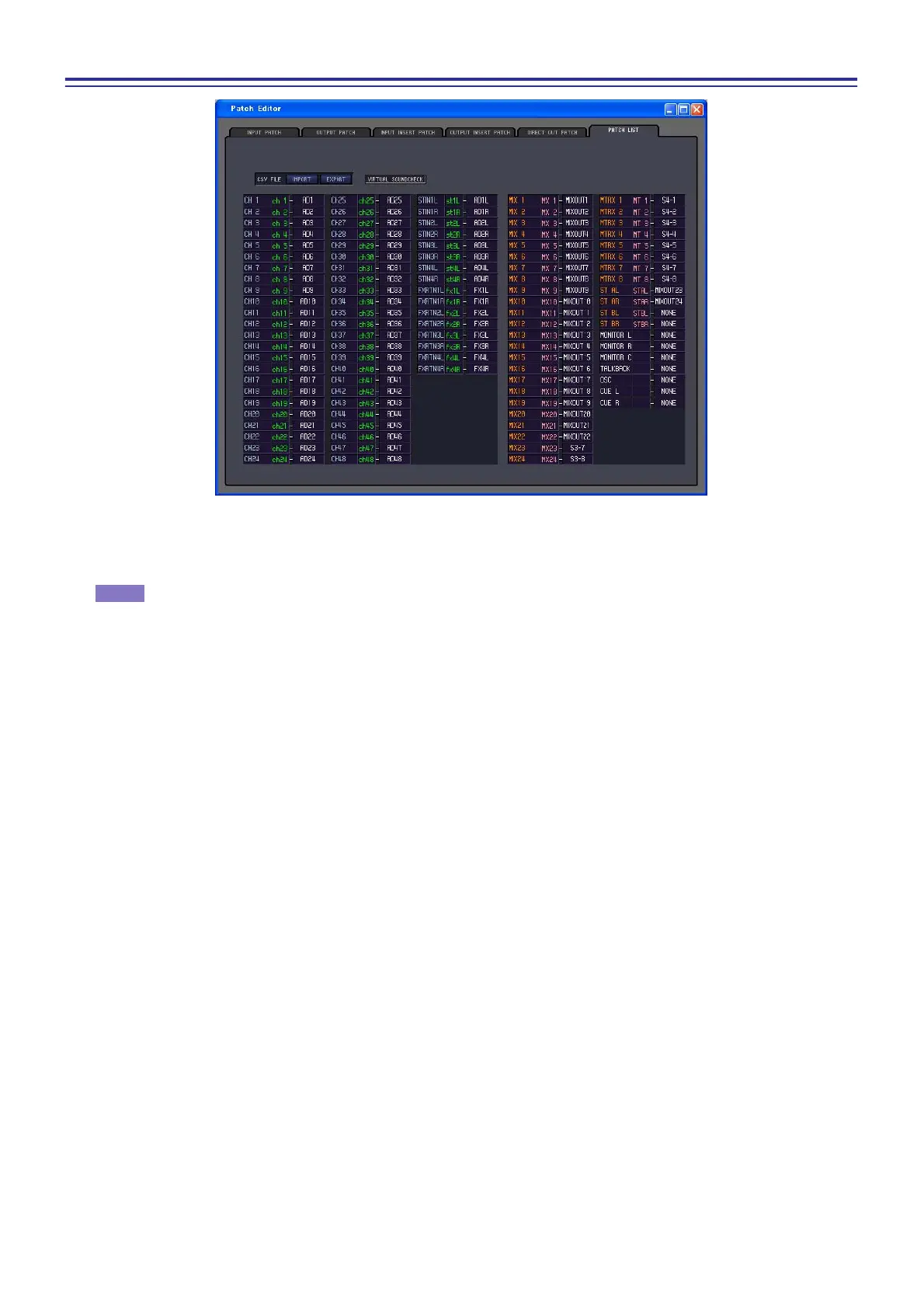

PATCH LIST page
Here you can view and edit the input patch and output patch settings. Input patch, output patch, and channel name
data that was written to a CSV file by the PM5D itself can also be loaded into this page. Conversely, the settings in
this page can be written to a CSV file that can be loaded into the PM5D.
• VIRTUAL SOUNDCHECK is a display-only function.
• In DSP5D Editor, VIRTUAL SOUNDCHECK will be lit only if you operate the PM5D with the PM5D and
DSP5D connected.
NOTE
To Next Page
