38
Listening to the Radio

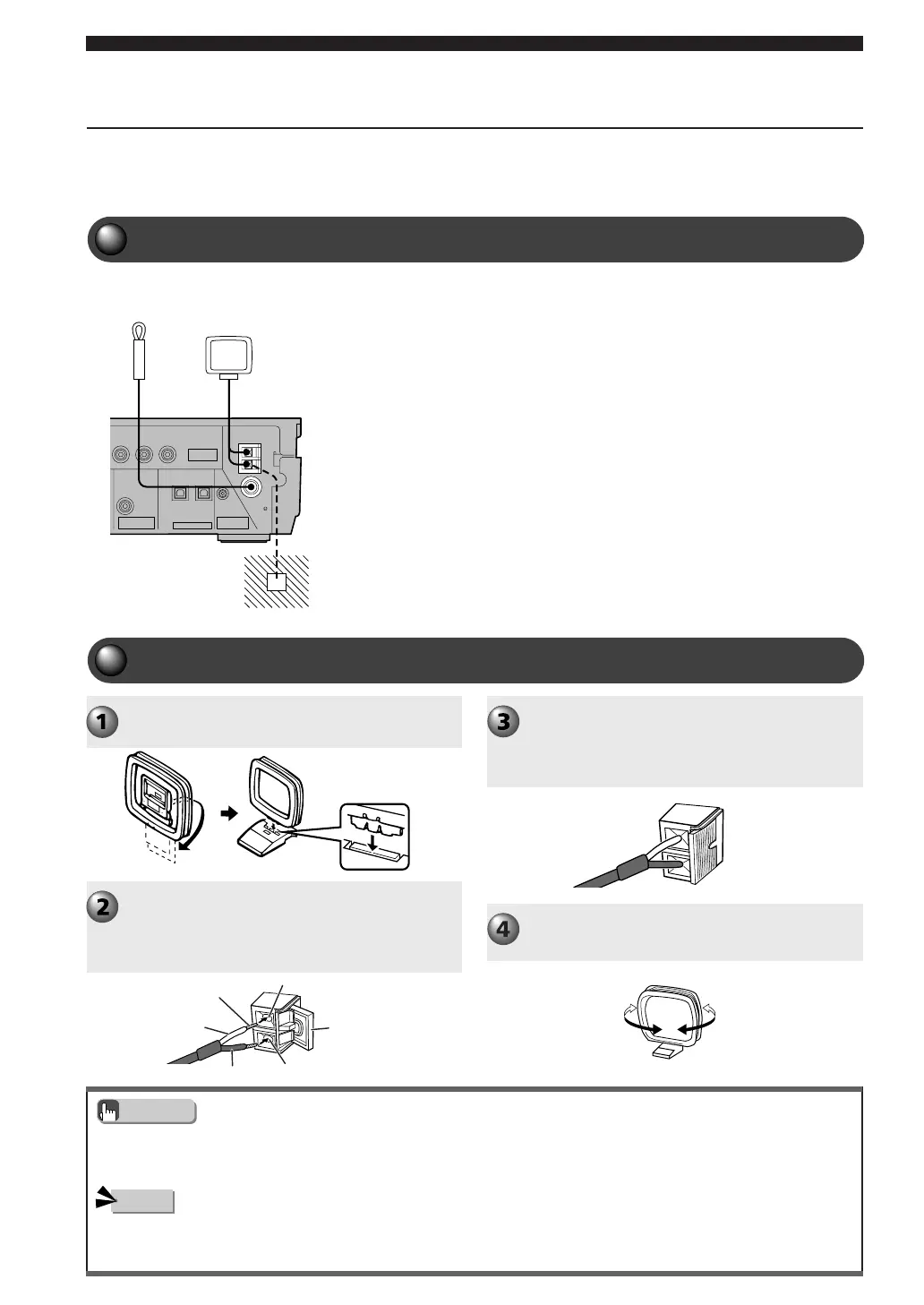

Connecting the Antennas
CinemaStation includes an AM Loop Antenna and indoor FM Antenna. Use
the supplied antennas in areas with good radio wave reception. Connect
each antenna into its jack properly.
YPB PR
COMPONENT VIDEO
(480p/480i)
(
DVD ONLY
)
MONITOR
OUT
IN OUT
DIGITAL AUDIO
OPTICAL
SUBWOOFER
OUT
SYSTEM
CONNECTOR
75
UNBAL
FM
ANT
GND
AM
ANT
• The AM Loop Antenna can be detached from its stand and attached to a wall.
• To improve reception, we recommend that you install an outdoor antenna. For details, contact your local Yamaha sound products
service center.
• Install the supplied indoor FM Antenna and AM Loop Antenna away from this system.
• Even if you connect an outdoor AM antenna, be sure to still use the AM Loop Antenna.
Attach the Antenna to its stand.
Open the AM ANT and GND jack levers to
the right. Insert the AM Loop Antenna’s
cord cores into the AM ANT and GND
jacks.
Close the lever to fasten the cord.
Pull the cord lightly to make sure it is properly
fastened.
Adjust the Antenna left and right and find
the best position for reception.
Cord Core
Lever
Connecting the FM Antenna
Connect the supplied indoor FM Antenna to the FM
ANT jack.
When connecting an outdoor FM
antenna
Use the antenna’s coaxial cable and a commercially
available F-type connector to connect the antenna to the FM
ANT jack. For details, ask the shop where you bought the
outdoor antenna.
Earth (GND jack)
The GND jack does not provide secure grounding. However when there
is a lot of noise, connecting it may improve reception. To ground
CinemaStation, connect one end of a vinyl coated wire to the GND jack
and the other end to a commercially available grounding rod or copper
sheet, and bury the rod or sheet in damp earth.
Connecting the AM Loop Antenna
Advice
Notes
Indoor FM Antenna
(supplied)
AM Loop
Antenna
(supplied)
White
Black
AM ANT jack
GND jack
