E
2-3
EMU12060

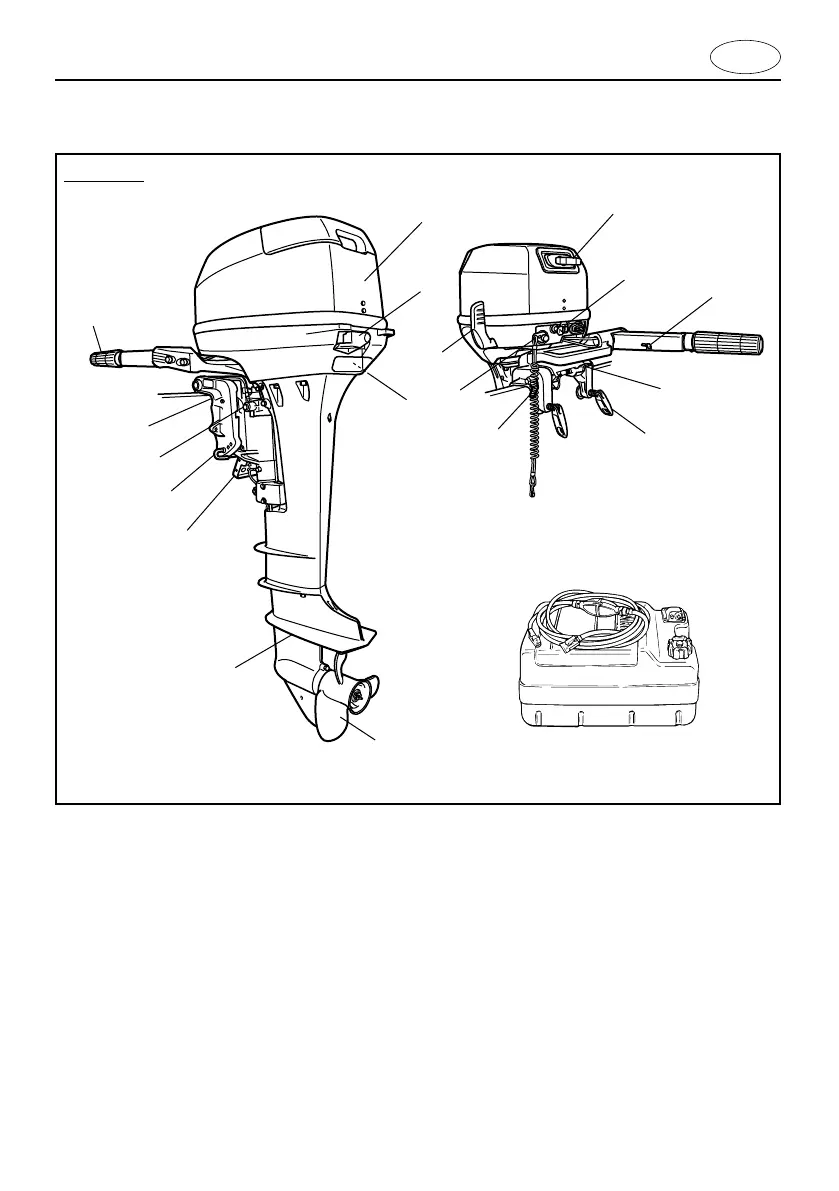

MAIN COMPONENTS
!9
q
!1
!2
!3
!5
w
e
r
t
y
u
o
!0
i
!6
!4
!7
!8
1 Top cowling
2 Cowling lock lever
3 Cooling water pilot hole
4 Propeller
5 Anti-cavitation plate
6 Shallow water lever
7 Trim angle adjusting rod
8 Steering friction adjusting screw
9 Clamp bracket
0 Throttle control grip
q Recoil starter handle
w Choke knob
e Throttle friction knob
r Tilt lock lever
t Clamp screw
y Rope attachment
u Engine stop button/Engine stop lanyard switch
i Gear shift lever
o Fuel tank
* May not be exactly as shown; also may not be
included as standard equipment on all
models.
9.9D, 15D
