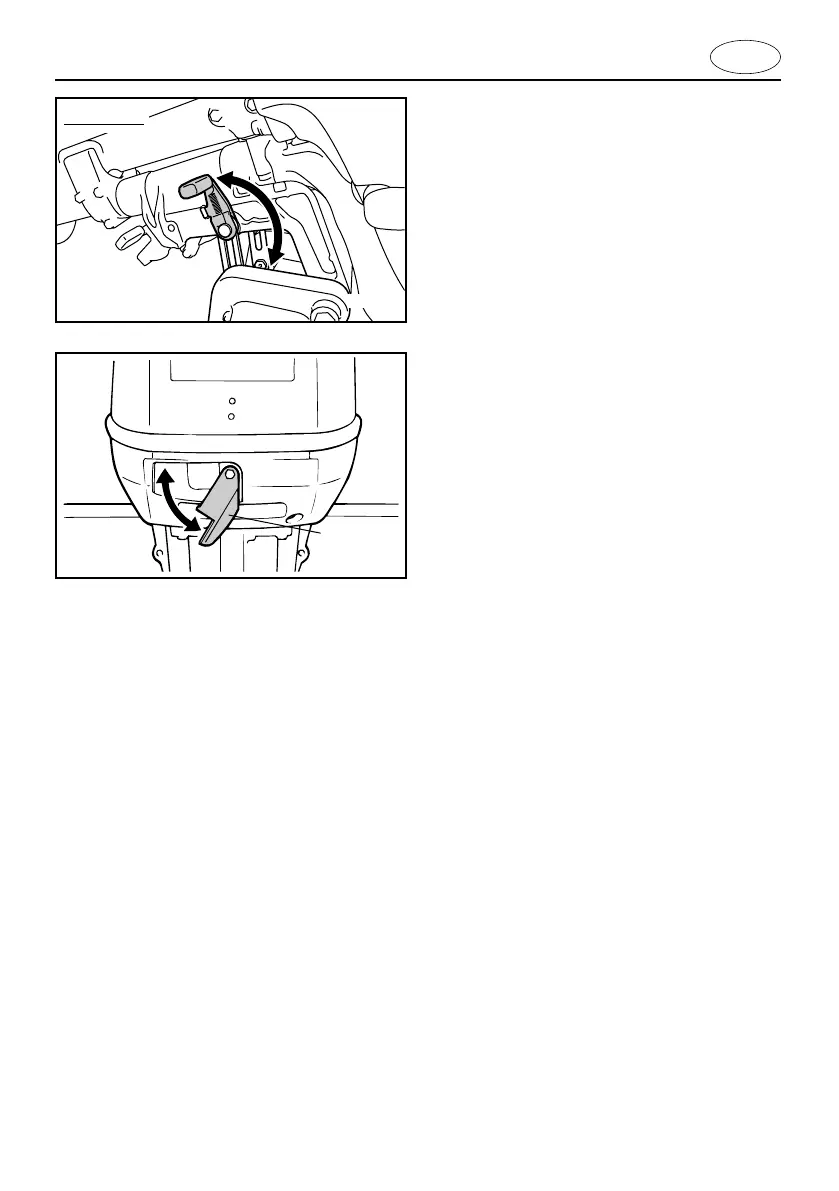

TOP COWLING LOCK LEVER
To remove the engine top cowling, turn the
lock lever. Then lift off the cowling. When
replacing the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by moving the lever upward.
1 Top cowling lock lever
9.9D, 15D
EMU01570
TILT SUPPORT LEVER
To keep the outboard motor in the tilted-up
position, lock the tilt support lever to the
clamp bracket.
