Yamaha E15D - Chapter 3 INSTALLATION

E
2-11
001471
q
001252
q
8D, 9.9D, 15D
9.9F, 15F
EMU01530

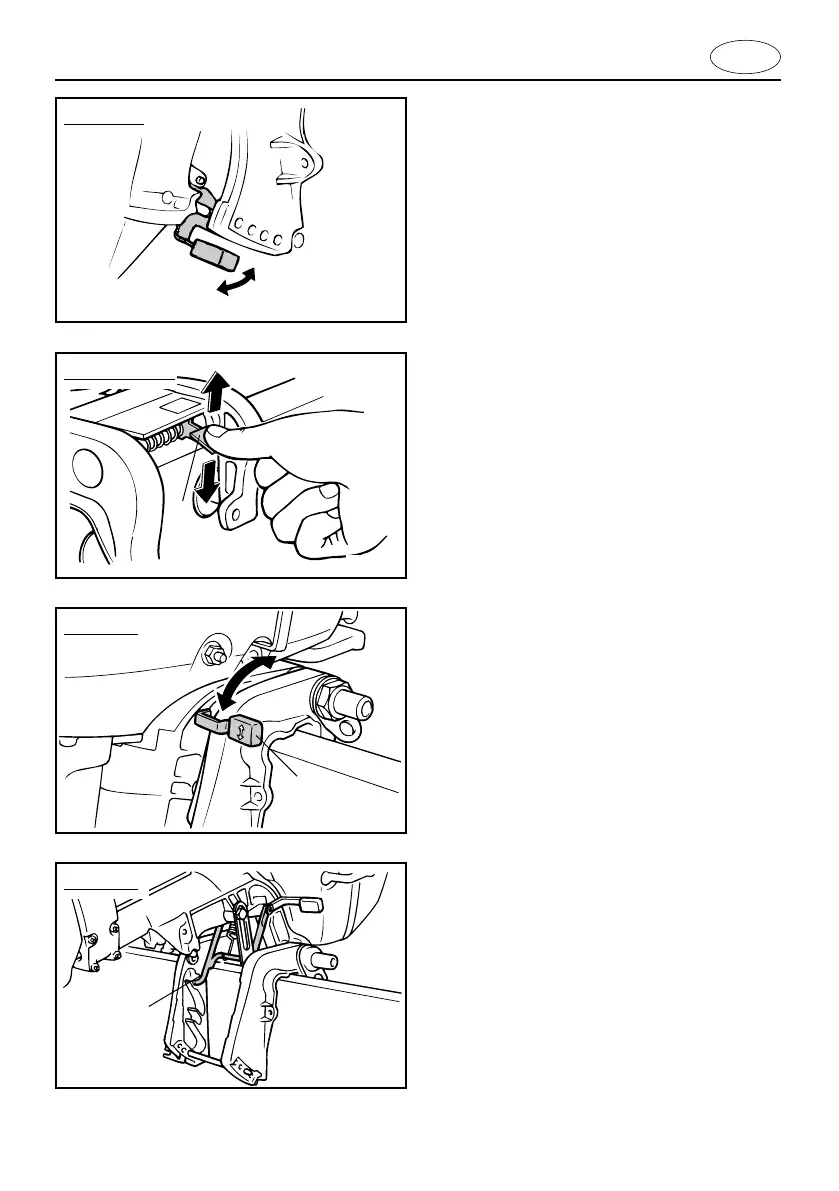

TILT LOCK MECHANISM (for Manual
tilt model)
The tilt-lock mechanism is used to prevent
reverse thrust from the propeller lifting the
outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position.
To release it, place the tilt-lock lever in the
Tilt position.
1 Tilt-lock lever
001548
9.9D, 15D
EMU01160
SHALLOW WATER LEVER (If
equipped)
Lifting this lever will tilt the motor up partially
to provide more clearance when operating
in shallow water.
001253
q
EMU01560
TILT SUPPORT BAR
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
9.9F, 15F
63V-9-K2-A0-2 3/17/03 7:34 PM Page 24
