TILLER HANDLE (for Tiller control
model)

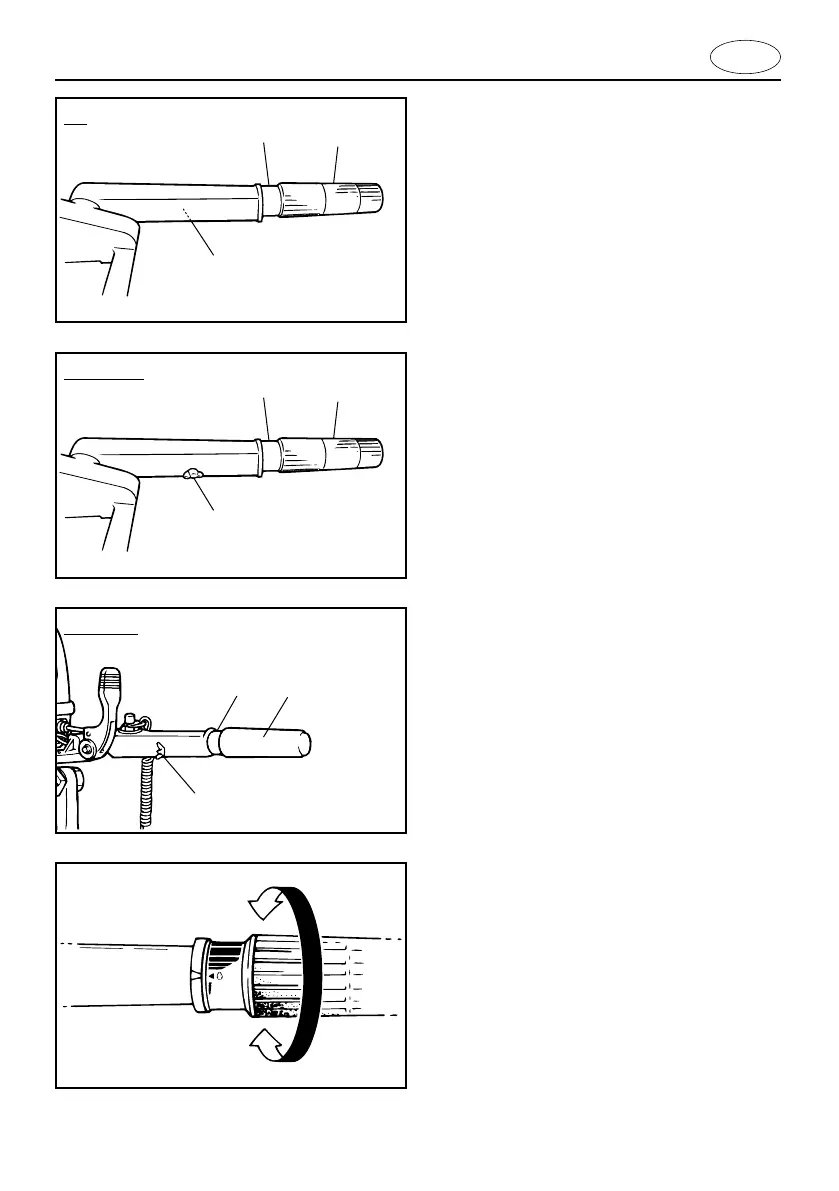

Moving the tiller handle sideways to adjust
the steering direction. In addition, this han-
dle contains the functions as follows.
1 Throttle control grip
2 Throttle indicator
3 Throttle friction adjusting knob/screw
EMU00650
Throttle Control Grip
The throttle control grip is on the tiller han-
dle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
