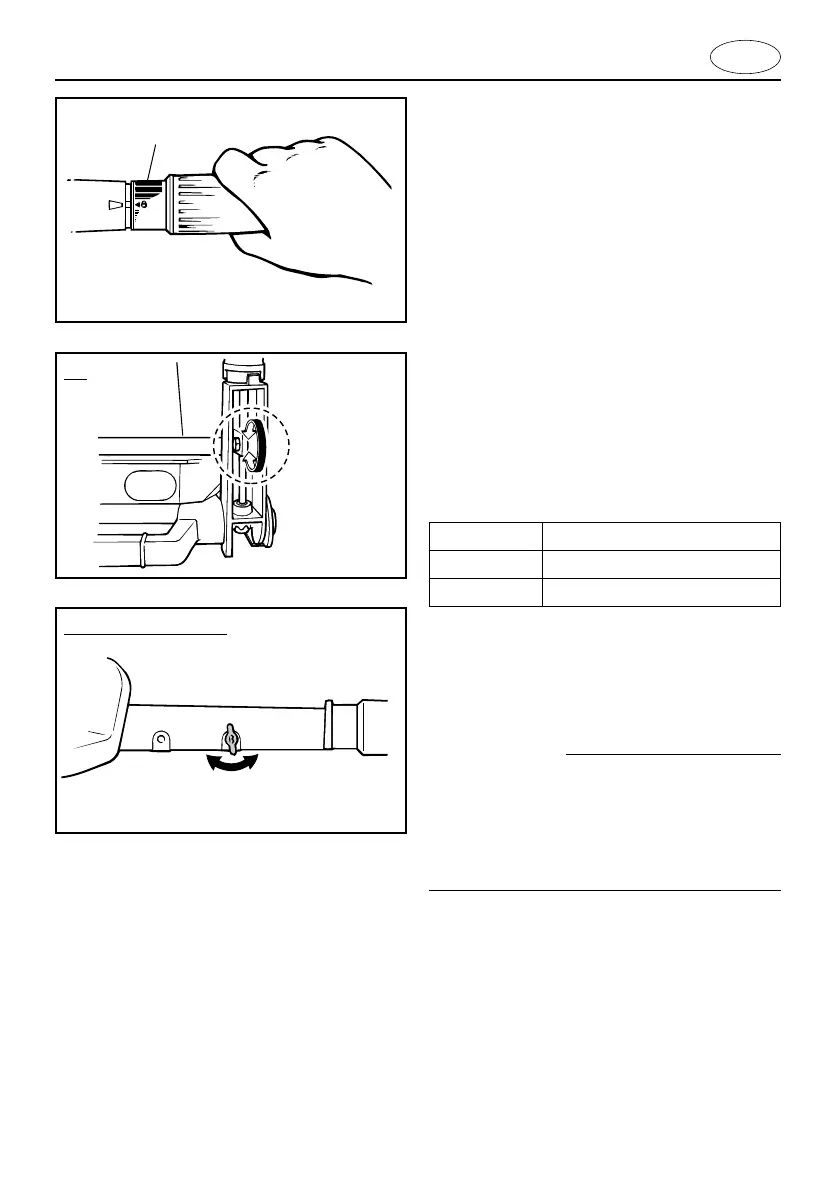

Throttle friction adjusting screw/ knob
A friction device in the tiller handle provide
resistance to movement of the throttle grip.
This is adjustable for operator preference.
An adjusting screw/knob is located within
the tiller handle.
When constant speed is desired, tighten the
adjusting screw/bolt to maintain the desired
throttle setting.
w
Do not over tighten the friction adjusting
screw/ knob.
If there is too much resistance, it may be
difficult to move the throttle grip, which
could result in an accident.
Resistance Knob/Screw
Increase Turn clockwise
Decrease Turn counterclockwise
000654
q
EMU00670
Throttle Indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position. Choose
the setting that offers the best performance
and fuel economy for the desired operation.
1 Throttle indicator
