7
–
AE00102

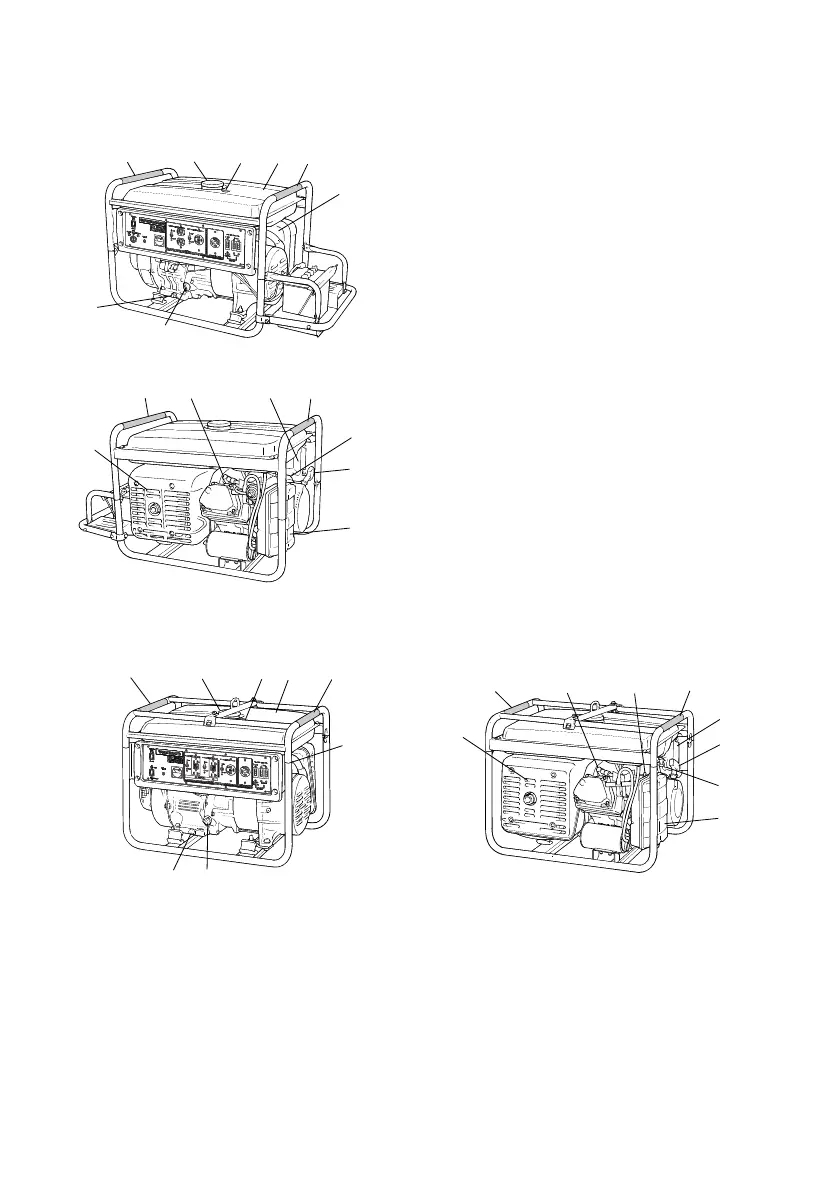

DESCRIPTION
1
Ground (Earth) terminal
2
Carrying handles (shaded)
3
Fuel tank
4
Fuel level gauge
5
Fuel tank cap
6
Oil drain plug
7
Oil filler cap
8
Air filter cover
9
Fuel cock
0
Voltage adjuster
q
Spark plug
w
Muffler
e
Choke lever (for YG5200D)
r
Recoil starter
EF5200DE
1
7
6
54
2
23
7
1
6
5
42
23
YG5200D
8
r
9
2
0
q
2
w
8
9
r
0
2
e
q
2
w
7CB-F8199-11_a 07.12.22 16:30 Page 7
Downloaded
from
ManualsNet.com
search
engine
11
13
Table of Contents
Table of Contents
5
Safety Information
6
Exhaust Fumes Are Poisonous
6
Fuel Is Highly Flammable and Poisonous
6
Engine and Muffler May be Hot
6
Electric Shock Prevention
7
Connection Notes
8
Connection
8
Extension Cord Notes
9
Location of Important Labels
10
Description
12
Control Panel
13
Control Function
14
Engine Switch
14
Oil Warning Light (Red)
14
AC Switch (N.F.B.)
15
Economy Control Switch
15
Voltage Adjuster
16
G.F.C.I. Receptacle
16
Fuel Tank Cap
17
Fuel Cock Lever
17
Recoil Starter
17
Ground (Earth) Terminal
17
Preparation
18
Fuel
18
Engine Oil
19
Battery Installation
20
Pre-Operation Check
22
Operation
23
Starting the Engine
23
Stopping the Engine
26
Connection
27
Application Range
29
Periodic Maintenance
30
Maintenance Chart
30
Spark Plug Inspection
32
Carburetor Adjustment
33
Engine Oil Replacement
33
Air Filter
34
Muffler Screen and Spark Arrester
35
Fuel Cock
36
Fuel Tank Filter
37
Battery
38
Fuse Replacement
39
G.F.C.I. Receptacle Test
39
Storage
40
Drain the Fuel
40
Engine
41
Battery
41
Recommended Battery
42
Troubleshooting
43
Specifications
47
Dimensions
47
Engine
47
Generator
47
Battery
47
Consumer Information
48
Identification Number Records
48
Machine Identification
48
Limited Warranty (Ef- and Edl-Series)
49
Limited Warranty (Ec- and Yg-Series)
49
Exhaust Emission Control System and Components
52
Wiring Diagram
53
Ef5200De
53
Yg5200D
54
Battery Tray Installation
55
Engine Hanger Installation
55
Optional Parts Installation
55
