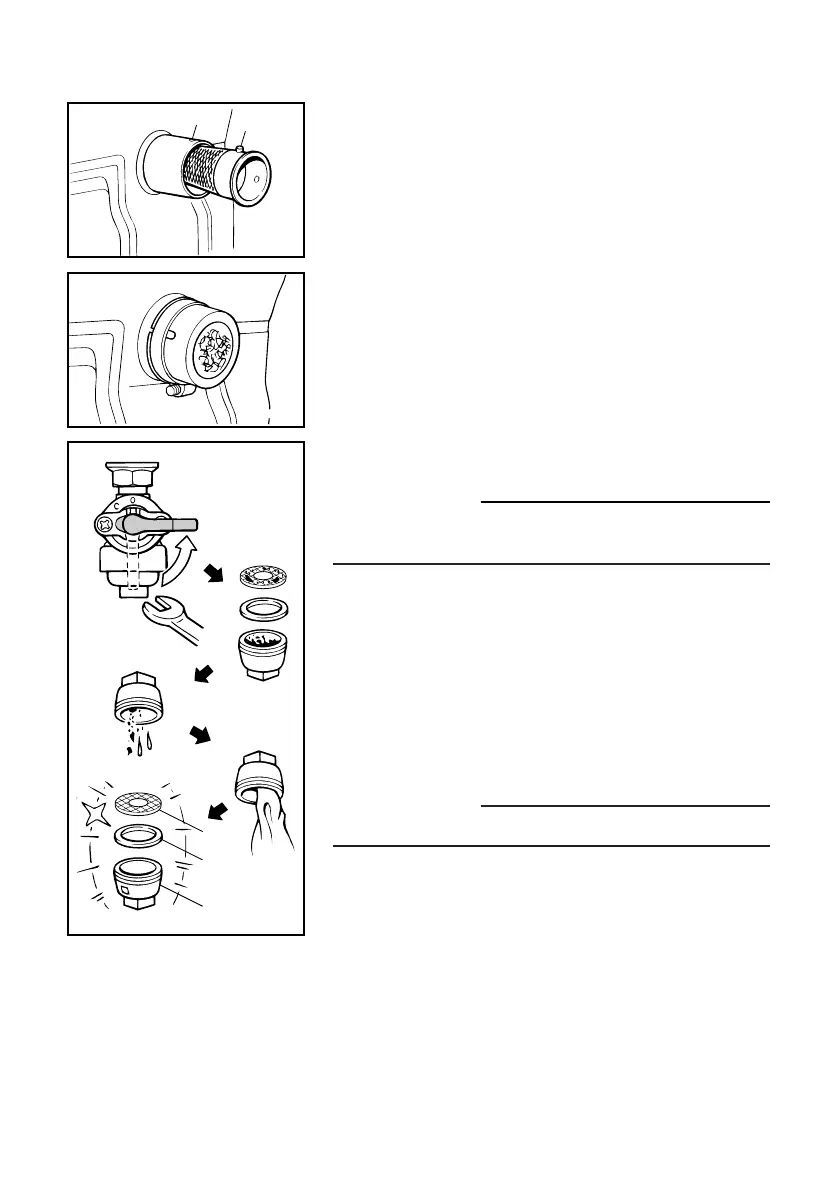

5. Check the muffler screen and spark arrester.
Replace them if damaged.
6. Install the spark arrester.
Align the spark arrester projection with the hole in
the muffler pipe.
1 Projection
2 Hole
7. Install the muffler screen and muffler protector.
AE00461
FUEL COCK
w
Never use or be near fuel and solvent while smok-
ing or in the vicinity of an open flame.
1. Stop the engine.
2. Turn the fuel cock lever to “OFF”.
3. Remove the fuel cock cup, gasket and fuel strain-
er.
4. Clean the cup and fuel strainer with gasoline and
wipe it off.
5. Check the gasket. Replace it if damaged.
6. Reinstall the fuel strainer, gasket and fuel cock
cup.
w
Be sure the fuel cock cup is tightened securely.
1 Fuel cock cup
2 Gasket
3 Fuel strainer
