TROUBLESHOOTING

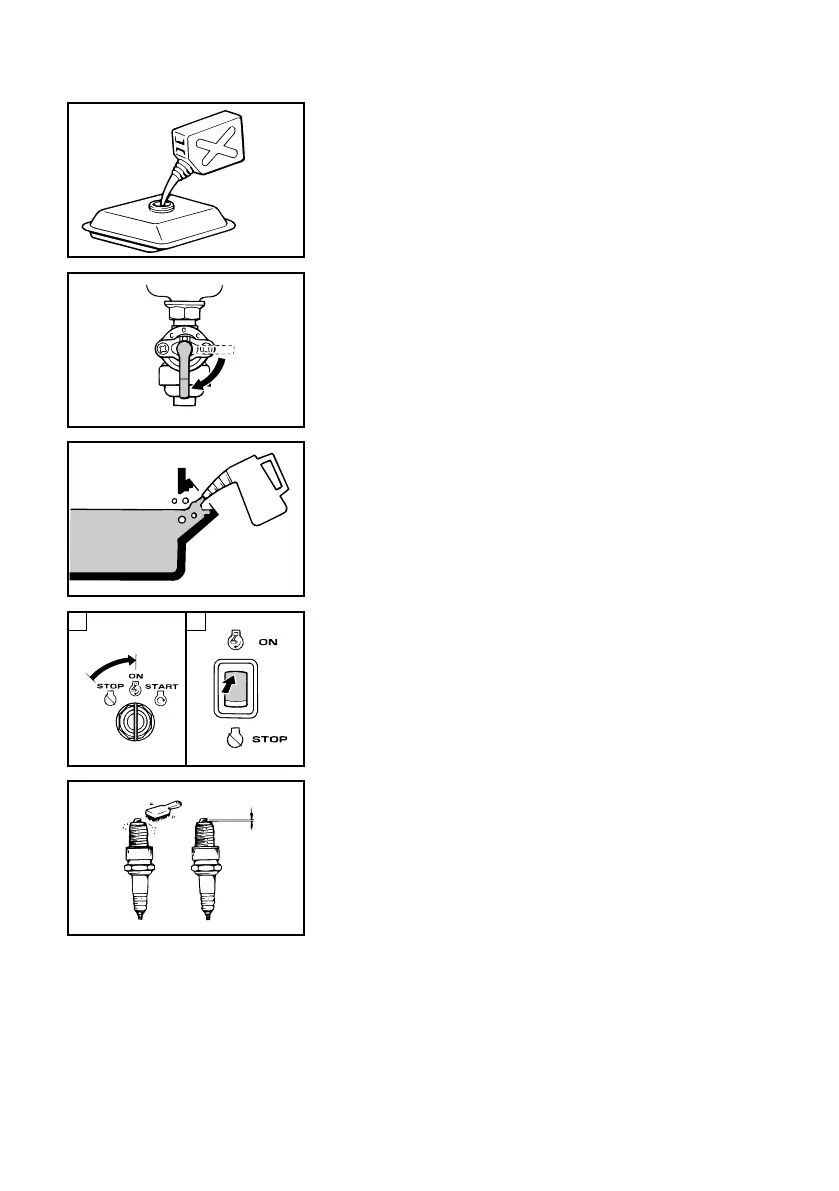

Engine won’t start
1. Fuel systems
No fuel supplied to combustion chamber.
2 No fuel in tank .... Supply fuel.
2 Clogged fuel line .... Clean fuel line.
2 Foreign matter in fuel cock .... Clean fuel cock.
2 Clogged carburetor .... Clean carburetor.
2. Engine oil system
Insufficient
2 Oil level is low .... Add engine oil.
3. Electrical systems
2 Engine switch to “ON” 1.
Poor spark
2 Spark plug dirty with carbon or wet .... Remove
carbon or wipe spark plug dry.
2 Faulty ignition system .... Consult dealer.
4. Compression
Insufficient
2 Worn out piston and cylinder .... Consult dealer.
2 Loose cylinder head nuts .... Tighten nuts proper-
ly.
2 Damaged gasket .... Replace gasket.
763-127a
q
q
A B
