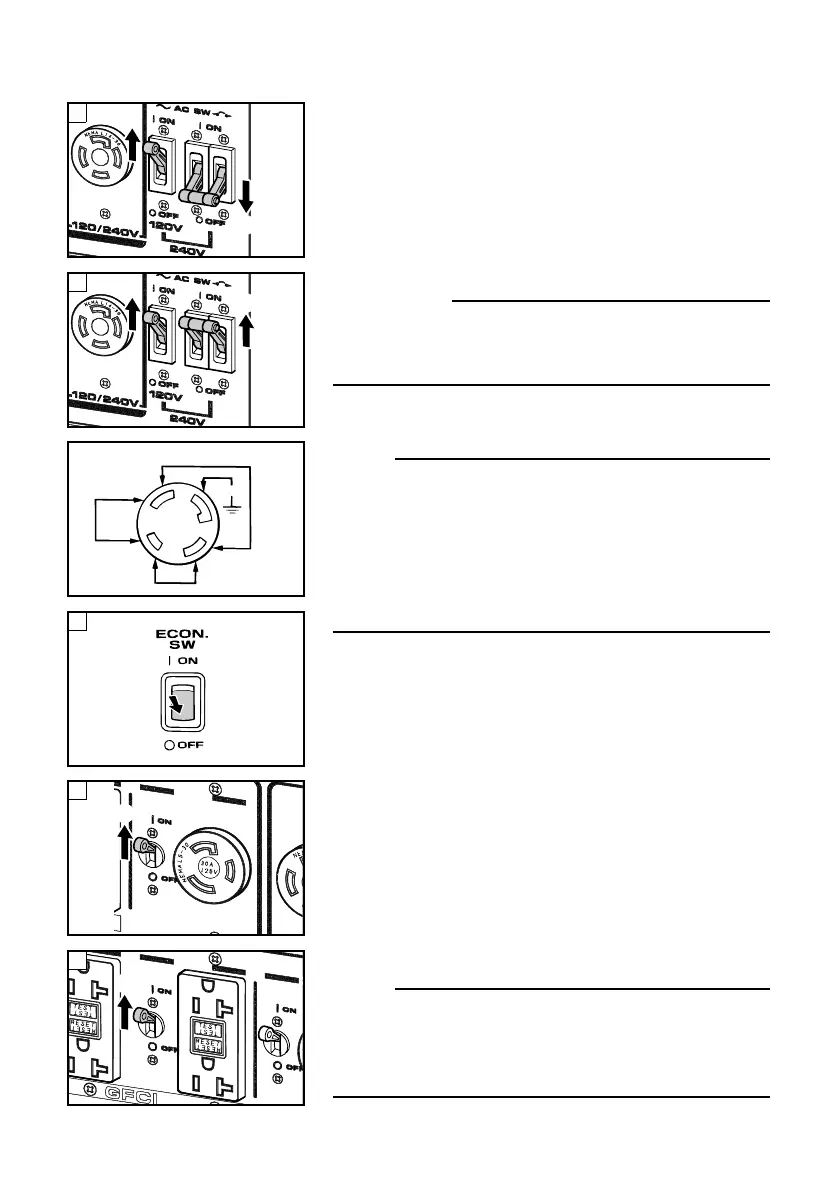

4. Turn the AC switch (N.F.B.) and economy control
switch to the “ON” and turn on any electric
devices.
1 I “ON”
å AC120V can be used.
∫ AC120V and 240V can be used.
cC
Reduce the load to the specified generator rated
output if an AC switch turns off. If it turns off
again, consult a Yamaha dealer.
NOTE:
9 The 4-blade plug receptacle can supply both 120V
and 240V power sources.
9 The economy control switch must be turned to
“OFF” to increase engine speed to rated rpm
when:
- using a load of 0.8A or less.
- supplying AC120V only from W with X.
ç Economy control switch
1 3 “OFF”
5. Turn the individual AC switch (N.F.B) to the “ON”
position.
1 I “ON”
∂ Individual AC switch (EF5200DE, YG5200D)
´ Individual AC switch (YG5200D)
NOTE:
The economy control switch must be turned to “3”
(OFF) when using electric devices that require a large
starting current, such as a compressor or a submergi-
ble pump.
