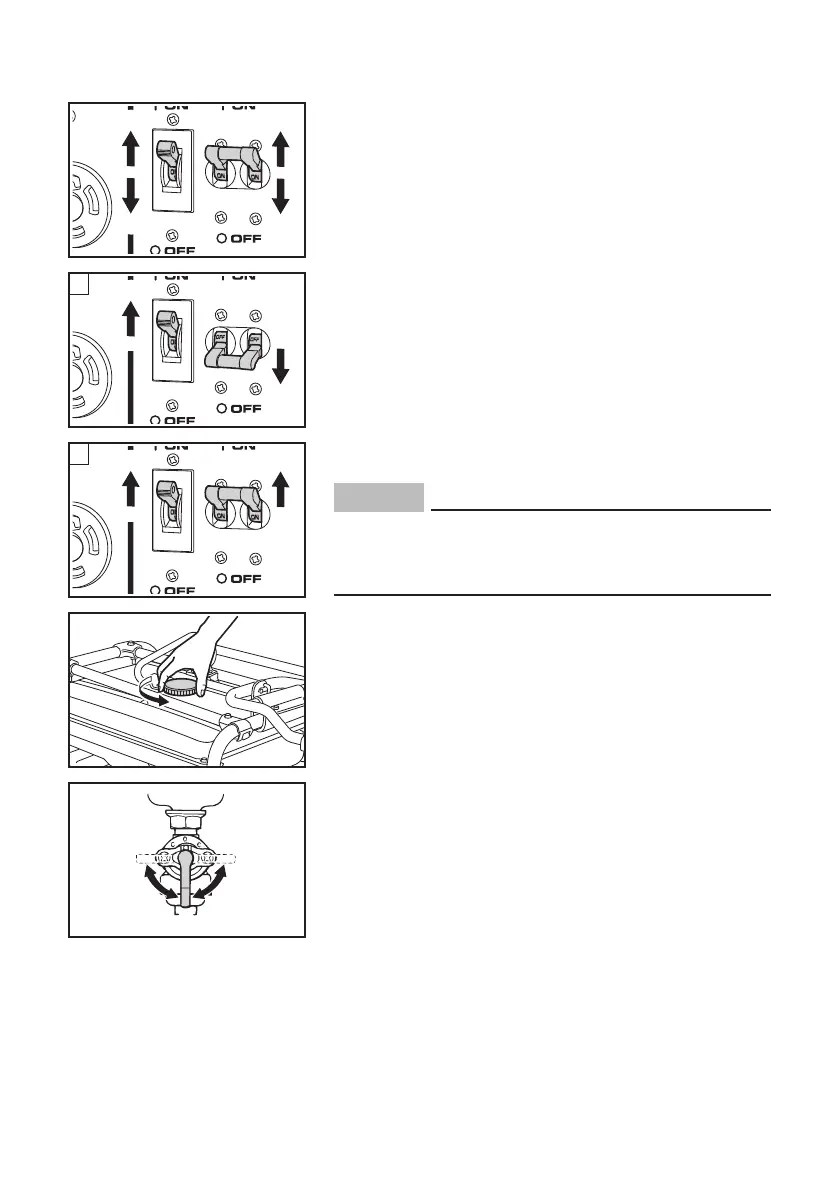

AC switch (N.F.B.)
The AC switch (Non-Fuse Breaker) turns off automati-
cally when the load exceeds the generator rated out-
put.
1 “I” (ON)
2 “3” (OFF)
1
2
1
2
000-000
2
1
000-000
A
1
1
000-000
B
å Supplies AC 120 V
∫ Supplies AC 120 V and 240 V
NOTICE
Reduce the load to the specified generator rated
output if the AC switch (N.F.B.) turns off. If it turns
off again, consult a Yamaha dealer.
Fuel tank cap
Remove the fuel tank cap by turning it counterclock-
wise.
7DF-106
1
22
Fuel cock lever
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has two positions.
1 ON
With the lever in this position, fuel flows to the carbure-
tor. Normal using is done with the lever in this position.
2 OFF
With the lever in this position, fuel will not flow. Always
turn the lever to this position when the engine is not
running.
