– 56 –

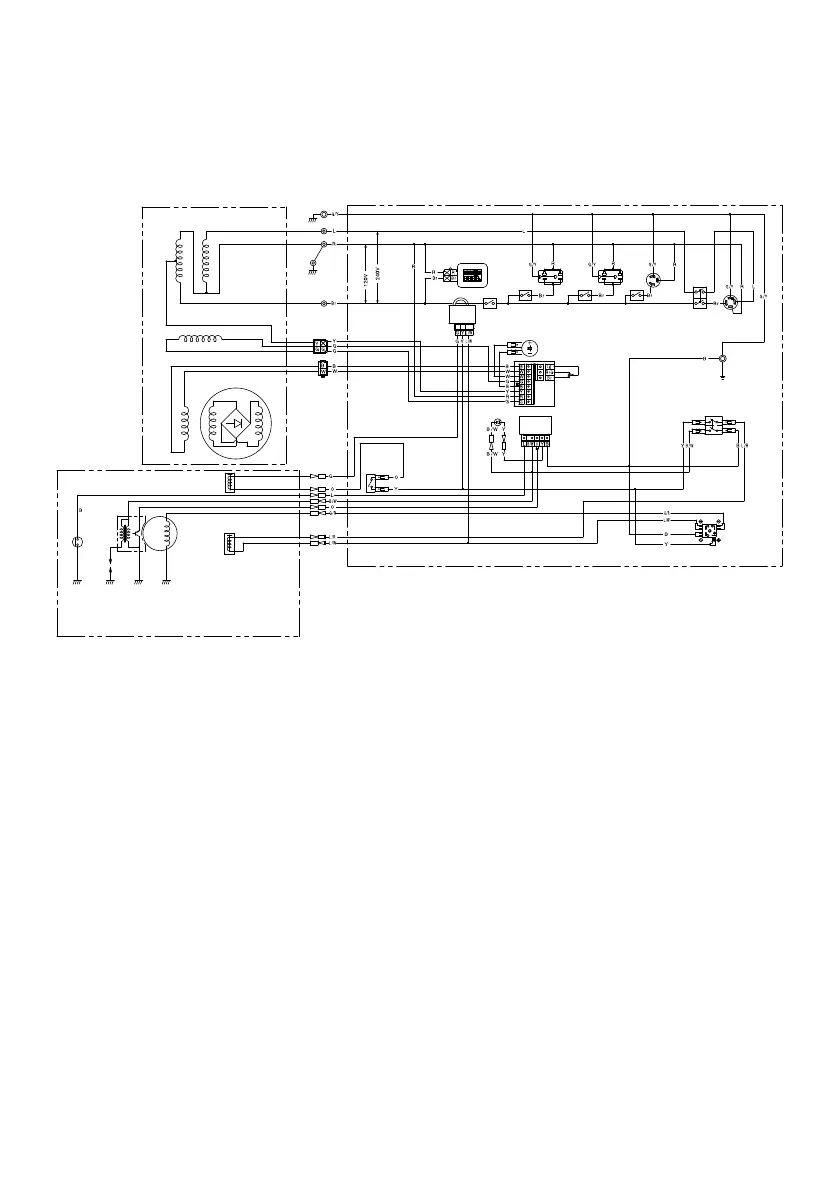

1 Rotor assembly
2 Exciter field coil
3 Sub coil
4 Main coil
5 Stator assembly
6 Voltage/hour meter
7 AC switch (N.F.B.)
8 G.F.C.I. receptacle
9 AC receptacle
0 Engine switch
q Rectifier
w Voltage adjuster
Color code
B Black
Br Brown
G Green
L Blue
Lg Light green
O Orange
R Red
W White
Y Yellow
B/W Black/White
G/R Green/Red
G/Y Green/Yellow
L/R Blue/Red
L/W Blue/White
R/G Red/Green
e Condenser
r AVR
t Oil warning unit
y Oil warning light
u Economy control unit
i Solenoid valve
o Economy control switch
p Carburetor solenoid valve
a Charging coil
s Spark plug
d T.C.I. unit
f Oil level switch
1
2
4
5
6
7
7
7 7 7
8 8
9
9
q
w
e
t
y
i
o
p
a
d
s
f
u
r
3
0
EF7200D
7P6-F8199-13.indd 56 2019/12/11 9:57:31
