– 20 –
1
2
3
4
5

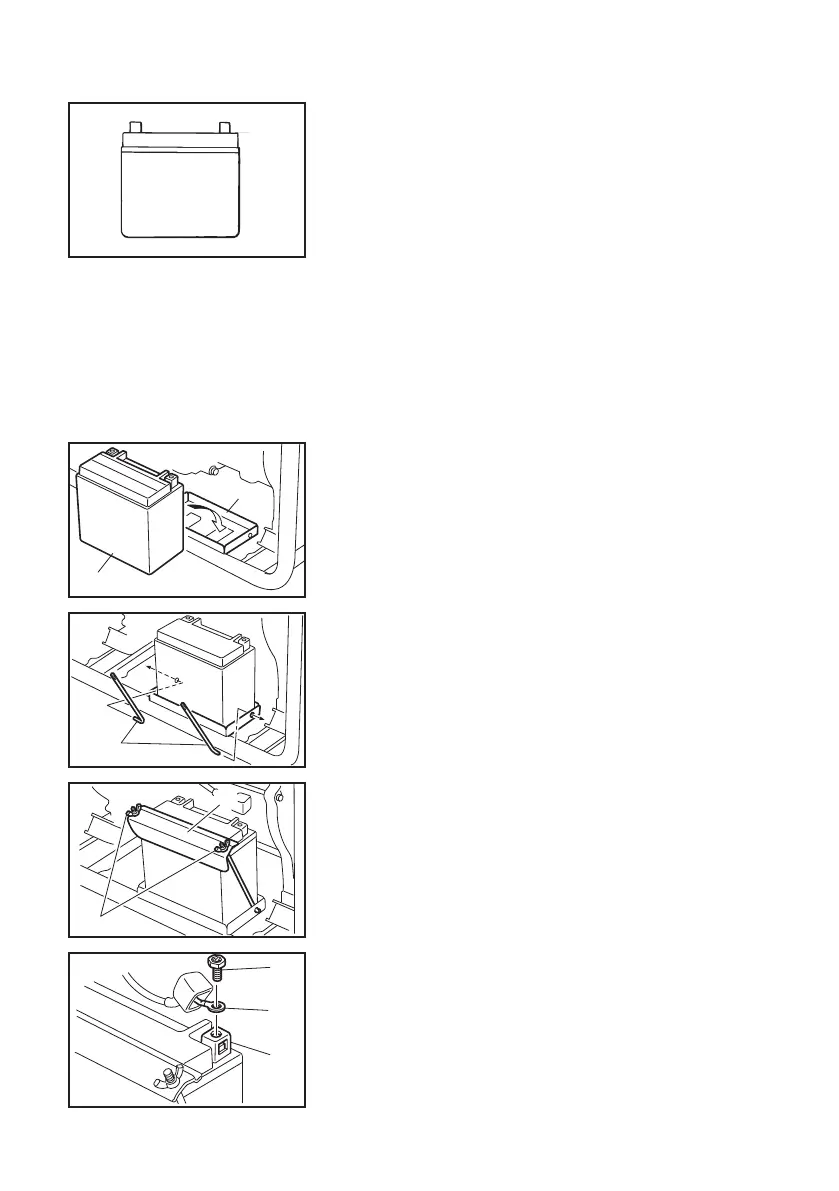

Installation
1. Turn the engine switch to “5” (STOP) to prevent
accidental short circuiting.
2. Place the battery on the battery mount tray.
1 Battery
2 Battery mount tray
3. Install the battery mounting rods and battery
mounting plate, and then install and tighten the
wing nuts.
3 Battery mounting rod
4 Wing nut
5 Battery mounting plate
Battery (For EF7200DE)
(See page 41 for more details)
This generator is designed to be equipped with a
VRLA (Valve Regulated Lead Acid) battery. There is
no need to check the electrolyte or to add distilled
water.
8
6
7
4. Connect the positive lead (Red) to the positive (+)
battery terminal.
6 Screw
7 Positive lead (Red)
8 Positive battery terminal
7P6-F8199-13.indd 20 2019/12/11 9:57:24
