– 36 –
741-001

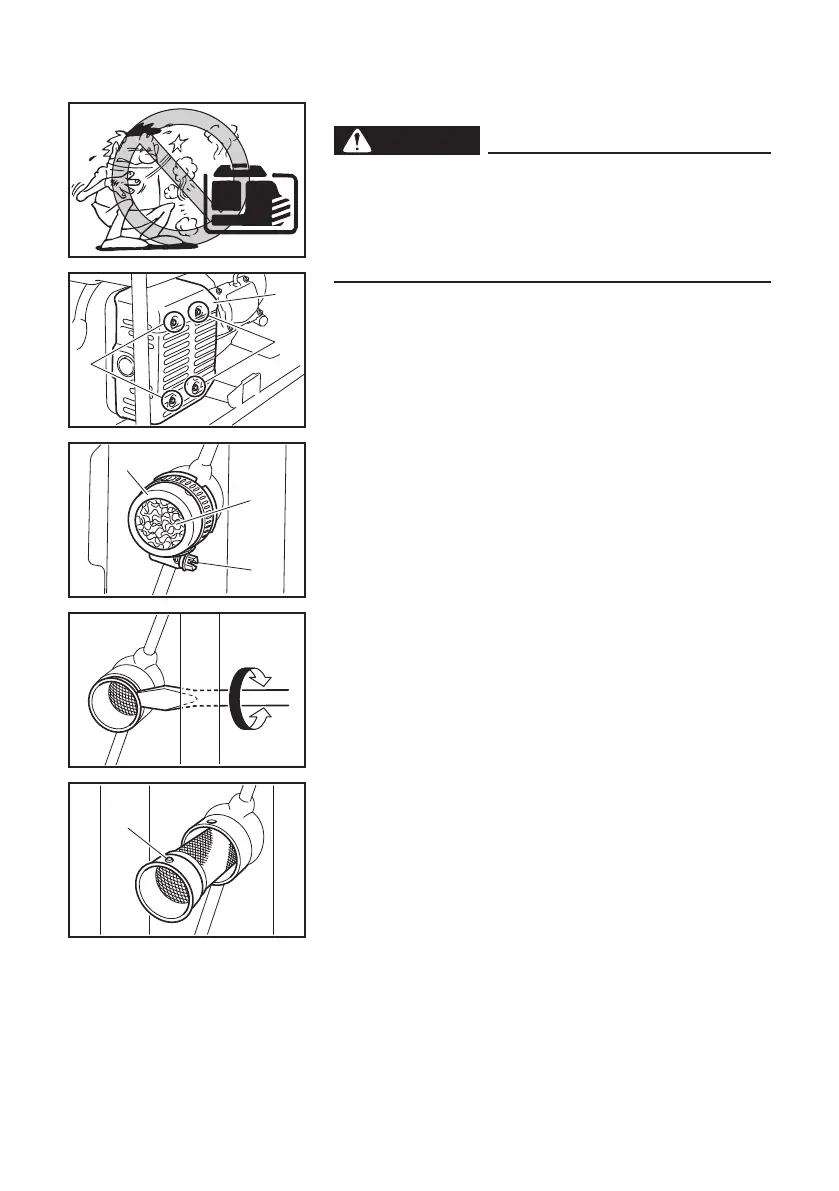

Muffler screen and spark arrester
WARNING
The engine and muffler will be very hot after the
engine has been run.
Avoid touching the engine and muffler while they
are still hot with any part of your body or clothing
during inspection or repair.
1. Remove the muffler cover bolts and then remove
the muffler cover.
1 Muffler cover bolt
2 Muffler cover
1
1
2
6
2. Loosen the muffler cap bolt and then remove the
muffler cap and muffler screen.
3 Muffler cap
4 Muffler screen
5 Muffler cap bolt
4
5
3
3. Use a flathead screw driver to pry the spark
arrester out from the muffler.
4. Remove the spark arrester.
6 Spark arrester
7P6-F8199-13.indd 36 2019/12/11 9:57:27
