– 17 –
14. Fasten the wheel axle frame to the generator
frame with the bolts and nuts. Make sure that the
wheel axle frame is on the right side of the control
panel.
k Bolt (8 × 16 mm Flange bolt)
l Wheel axle frame
; Nut (8 mm Flange nut)
Tightening torque:
16 N·m (1.6 kgf·m, 12 lb·ft)
TIP
Refer to the illustration and confirm the position of the
wheel kit.
h
g
j
j
l
;
k
;
k
g
h
j

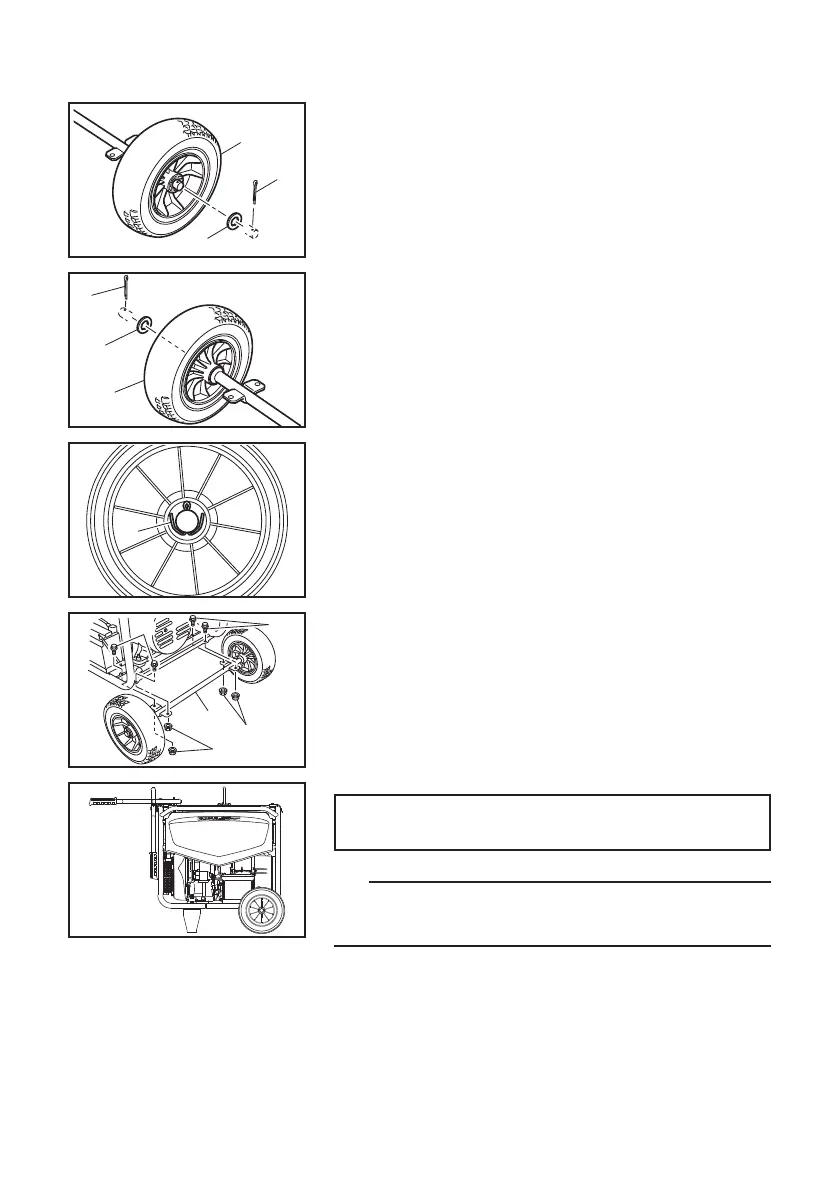

12. Install the washers into wheel axle.
13. Insert cotter pins into wheel axle frame, and then
bend as shown in the illustration.
g Wheel
h Washer
j Cotter pin
