Components
37
EMU25924

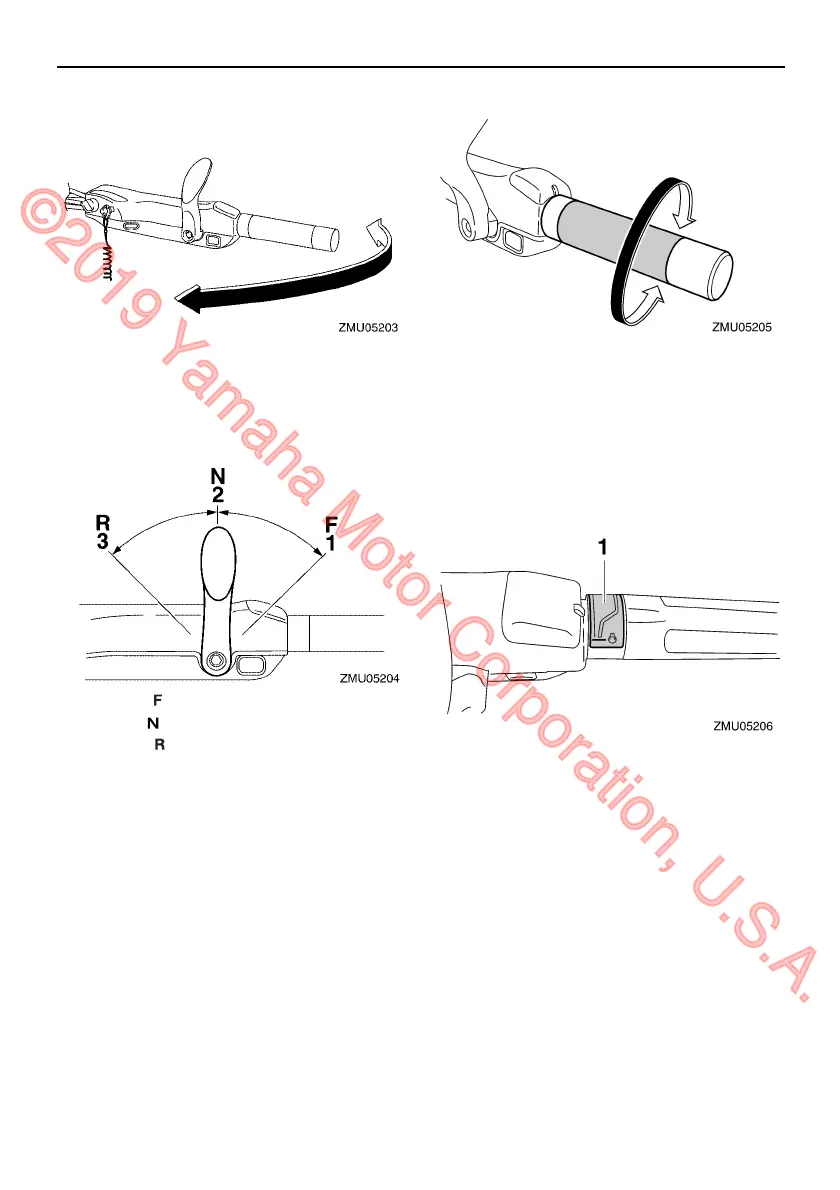

Gear shift lever (if equipped)
Move the gear shift lever forward to engage
the forward gear or rearward to engage the
reverse gear.
EMU25942
Throttle grip (if equipped)
The throttle grip is on the tiller handle. Turn
the grip counterclockwise to increase speed
and clockwise to decrease speed.
EMU25962
Throttle indicator (if equipped)
The fuel consumption curve on the throttle in-
dicator shows the relative amount of fuel con-
sumed for each throttle position. Choose the
setting that offers the best performance and
fuel economy for the desired operation.
EMU25976
Throttle friction adjuster
A friction device provides adjustable resis-
tance to movement of the throttle grip or the
remote control lever, and can be set accord-
ing to operator preference.
To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn the
adjuster counterclockwise. WARNING! Do
not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to move the remote control lever
or throttle grip, which could result in an
accident.
[EWM00032]
1. Forward “”
2. Neutral “”
3. Reverse “”
1. Throttle indicator
