Operation
66
EMU27153
Engine
●
Check the engine and engine mounting.
● Look for loose or damaged fasteners.
●
Check the propeller for damage.
●
Check for engine oil leaks.
EMU36493
Flushing device
Check that the flushing device’s garden hose
connector is securely screwed on to the fitting
on the bottom cowling. NOTICE: If the gar-
den hose connector is not properly con-
nected, cooling water can leak out and the
engine can overheat during operation.
[ECM01801]
F115, LF115, F115A1, FL115A1
F150, LF150, F150A1, FL150A1
EMU42780
Install cowling
F115, LF115, F115A1, FL115A1
1. Be sure that all cowling lock levers are re-
leased.
2. Be sure that the rubber seal is seated all
the way around the top cowling.
3. Place the top cowling on bottom cowling.
4. Check to be sure the rubber seal fits cor-
rectly all the way around the engine.
5. Move the levers to lock the cowling as
shown. NOTICE: If the top cowling is
not installed correctly, water spray un-
der the top cowling can damage the
engine, or the top cowling can blow off
at high speeds.
[ECM01991]

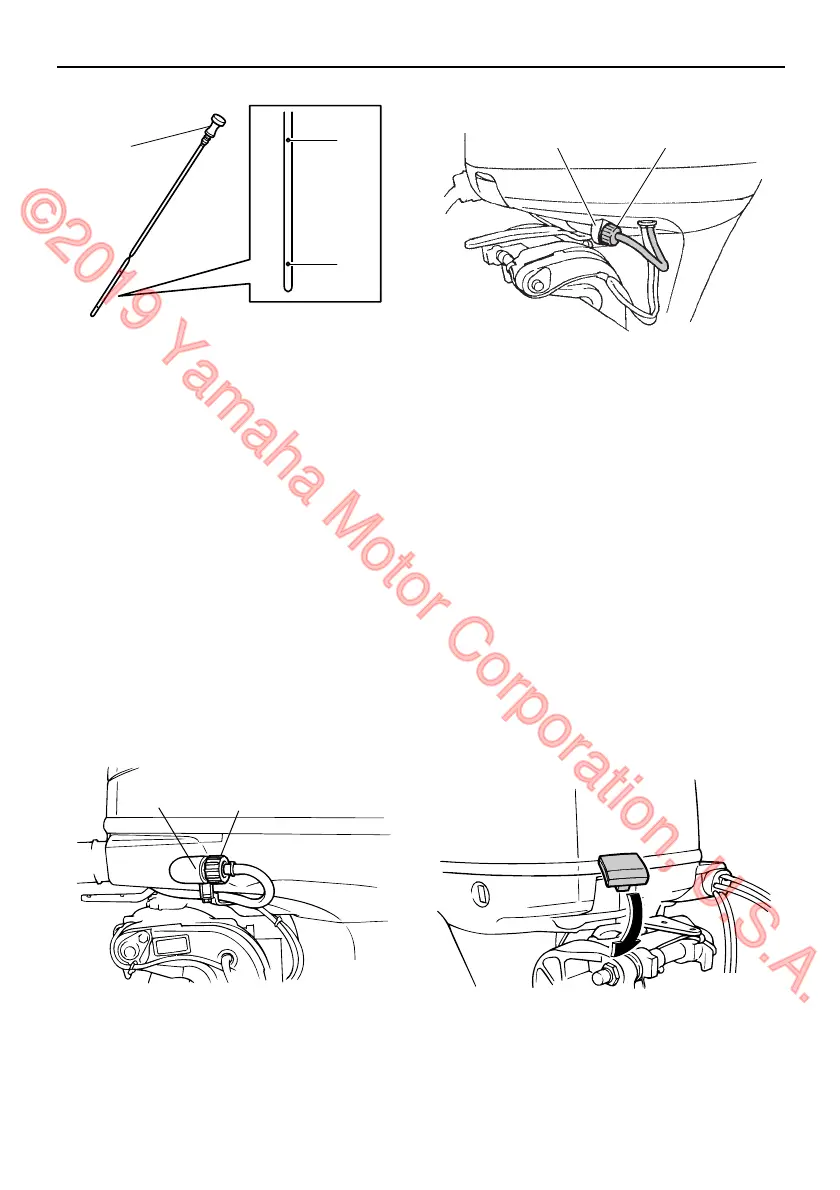

1. Oil dipstick
2. Lower level mark
3. Upper level mark
1. Fitting
2. Flushing device
1
3
2
ZMU07056
2
ZMU06053
1
1. Fitting
2. Flushing device
ZMU06159
12
ZMU07404
