Controls
Tiller handle models:
●
Move the tiller handle fully to the left and
right to make sure operation is smooth.
●
Turn the throttle grip from the fully closed to
the fully open position. Make sure that it
turns smoothly and that it completely re-
turns to the fully closed position.
●
Look for loose or damaged connections of
the throttle and shift cables.
Remote control models:
●
Turn the steering wheel full-right and full-
left. Make sure operation is smooth and un-
restricted throughout the whole range with
no binding or excessive free play.
● Operate the throttle levers several times to
make sure there is no hesitation in their
travel. Operation should be smooth over
the complete range of motion, and each le-
ver should return completely to the idle po-
sition.
●
Look for loose or damaged connections of
the throttle and shift cables.
EMU36483
Engine shut-off cord (lanyard)
Inspect the engine shut-off cord and clip for
damage, such as cuts, breaks, and wear.

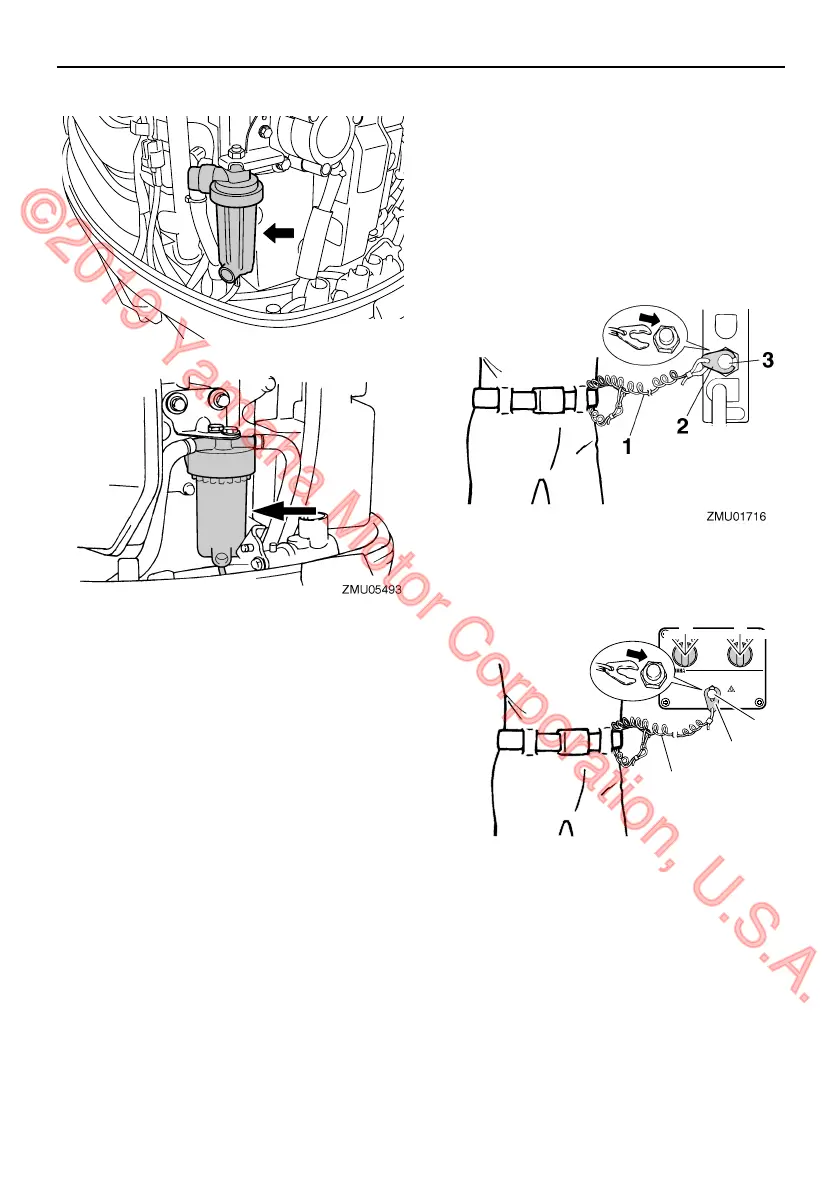

ZMU07478
1. Cord
2. Clip
3. Engine shut-off switch
1. Cord
2. Clip
3. Engine shut-off switch
ON
STARTOFF
ON
STARTOFF
1
ZMU04564
2
3
